Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

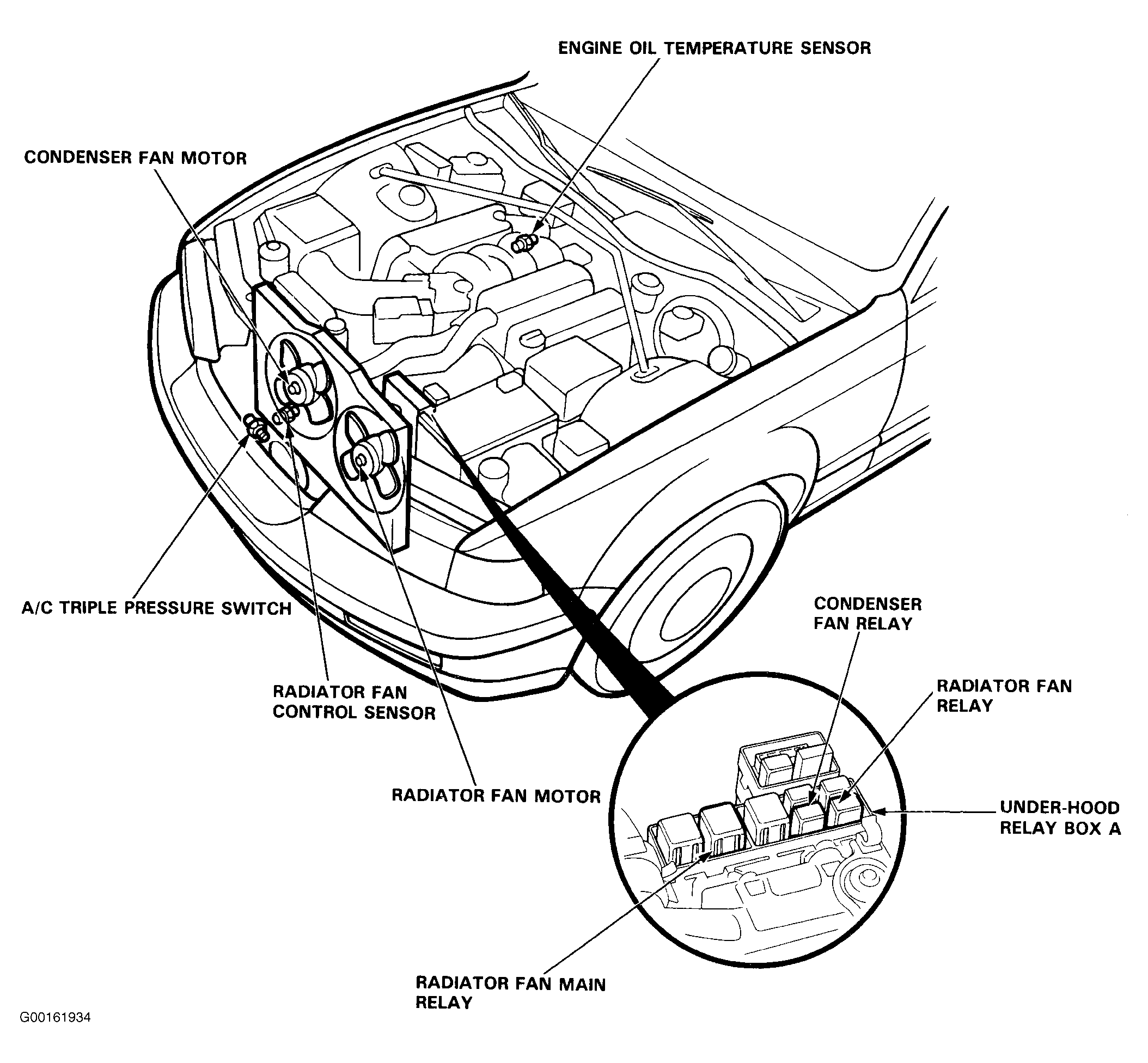

| A/C Triple Pressure Switch | On A/C line, bottom of receiver-drier. See Fig 1. |
| Cooling Fan Control Unit | Under carpeting and cover, next to PCM. See Fig 2. |
| Engine Oil Temperature Sensor | Right rear corner of engine compartment, attached to engine valve cover. See Fig 1. |
| G101 | On engine, below throttle body. |
| G152 | Left front corner of engine compartment. |
| G301 | Behind left kick panel. |
| G302 | In engine compartment, on right shock tower. |
| G303 | Behind right kick panel. |
| Radiator Fan Control Module | Behind right kick panel. See Fig 2. |
| Radiator Fan Control Sensor | On lower right side of radiator. See Fig 1. |
| Radiator Fan Main Relay | On underhood relay box "A". See Fig 3. |
| Radiator Fan Motor | Behind right side of radiator. See Fig 1. |
| Radiator Fan Relay | On underhood relay box "A". See Fig 3. |
| Underhood Relay Box "A" | On left top radiator support, near battery. See Fig 3. |
