Component Locations

COMPONENT LOCATIONS

Component	Location
Drivers Door Latch Assembly	In Rear Of Drivers Door
Engine Compartment Fuse/Relay Block	On Left Inner Fender Panel, Behind Battery. See Fig 1 .
Engine Oil Pressure Switch	At Base Of Oil Filter, To Right Of Crankshaft Pulley. See Fig 9 .
Integrated Control Unit	Mounted Behind Passenger Compartment Fuse/Relay Block. See Fig 3 .
Lights-On Chime Module	Above Left Side Of Steering Column.
Passenger Compartment Fuse/Relay Block	Behind Left Kick Panel. See Fig 2 & Fig 3 .
Seat Belt Switch	In Driver's Seat Belt Buckle.
Underhood Relay Box "A"	On Left Top Radiator Support, Near Battery. See Fig 1 .
Underhood Relay Box "B"	On Right Rear Of Engine Compartment, Near Strut Tower. See Fig 1 .
G152	Left Front Of Engine Compartment. See Fig 4 .
G153	Right Front Corner Of Engine Compartment. See Fig 5 .
G301	Left Kick Panel. See Fig 6 .
G302	Right Rear Corner Of Engine Compartment. See Fig 7 .
G303	Right Kick Panel. See Fig 8 .

Fig 1: Component Locations (1 Of 9)

G95D24011

Fig 2: Component Locations (2 Of 9)

G94F31315

Fig 3: Component Locations (3 Of 9)

G93H27356

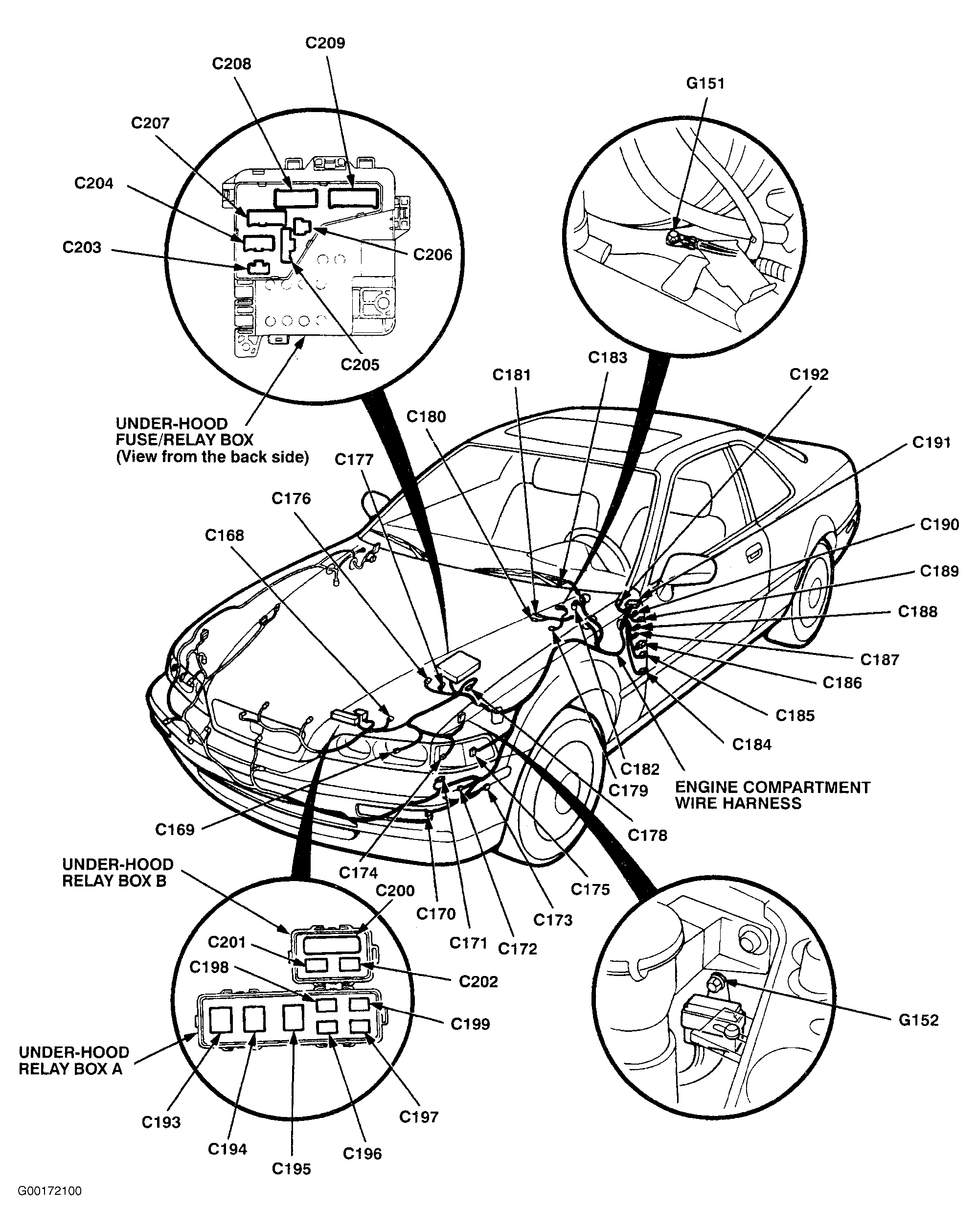

Fig 4: Component Locations (4 Of 9)

G00172100

Courtesy of AMERICAN HONDA MOTOR CO., INC.

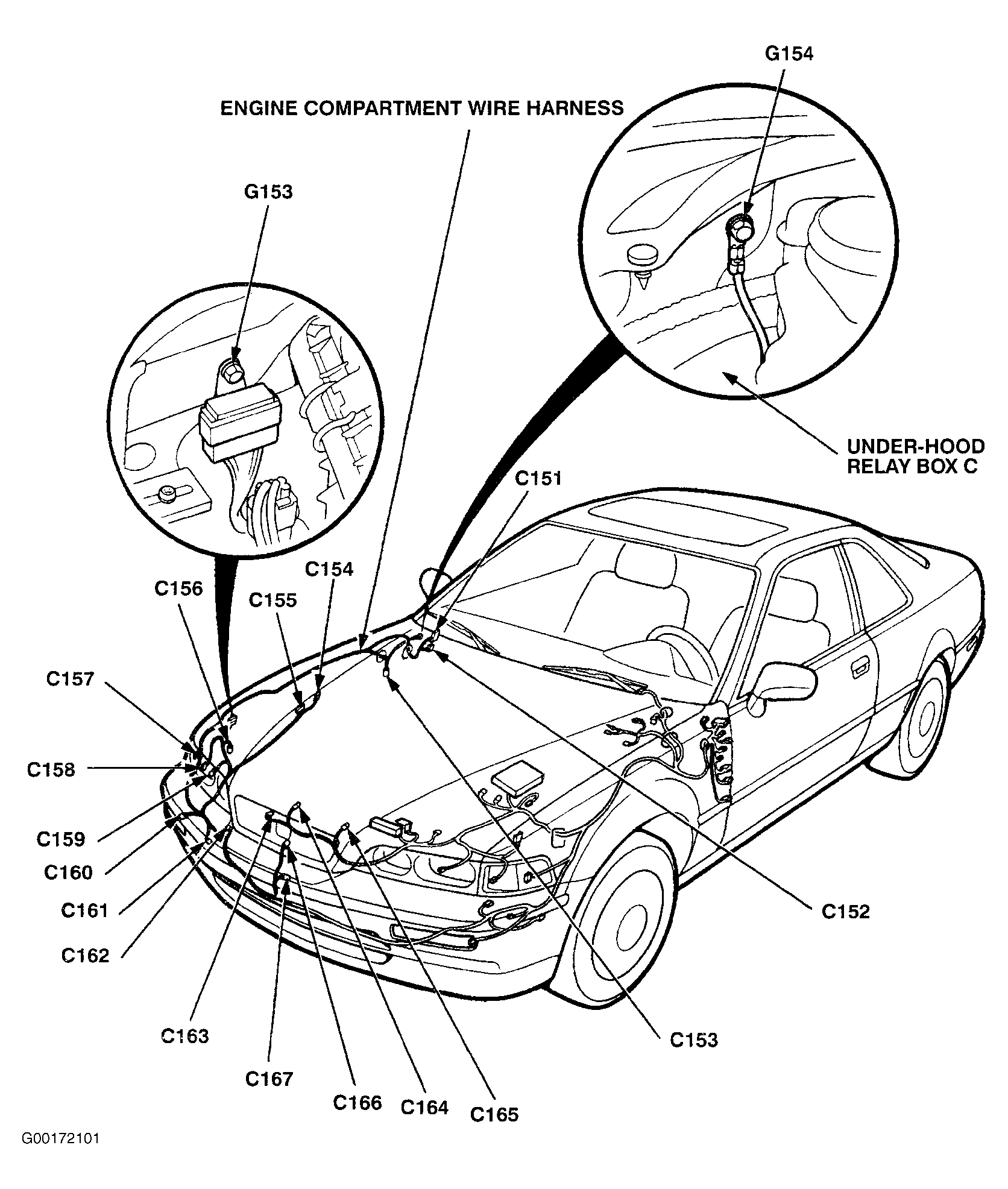

Fig 5: Component Locations (5 Of 9)

G00172101

Courtesy of AMERICAN HONDA MOTOR CO., INC.

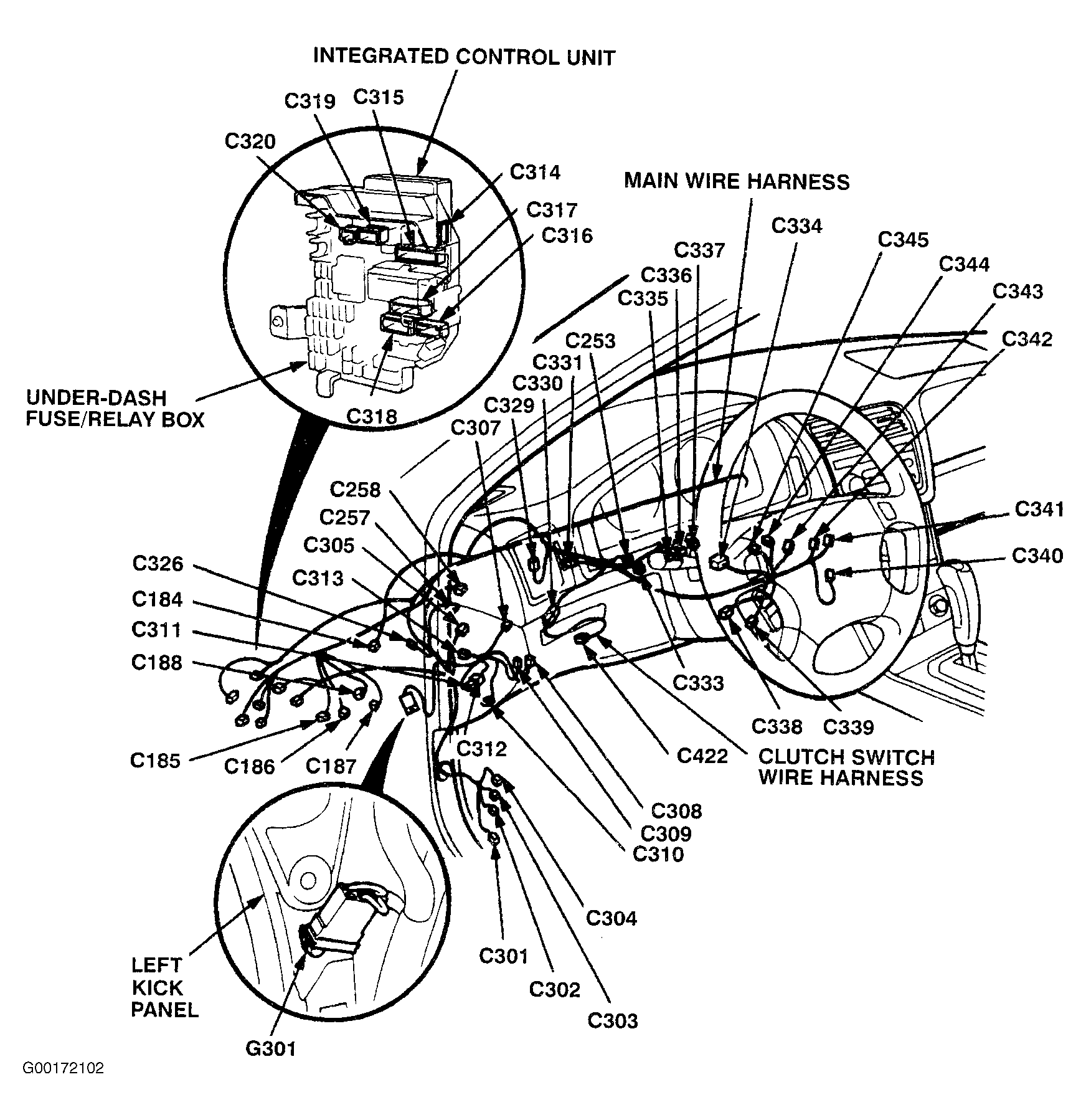

Fig 6: Component Locations (6 Of 9)

G00172102

Courtesy of AMERICAN HONDA MOTOR CO., INC.

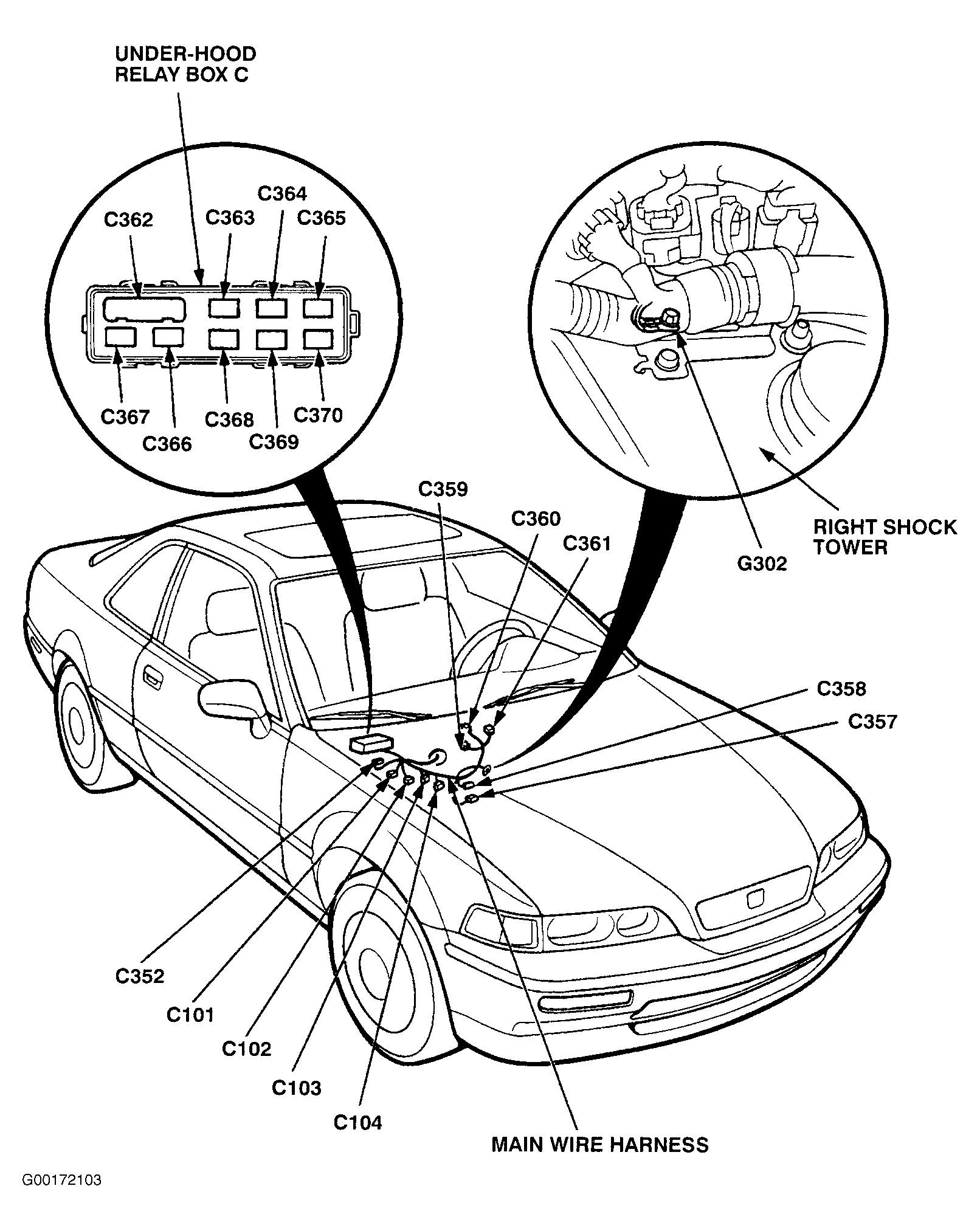

Fig 7: Component Locations (7 Of 9)

G00172103

Courtesy of AMERICAN HONDA MOTOR CO., INC.

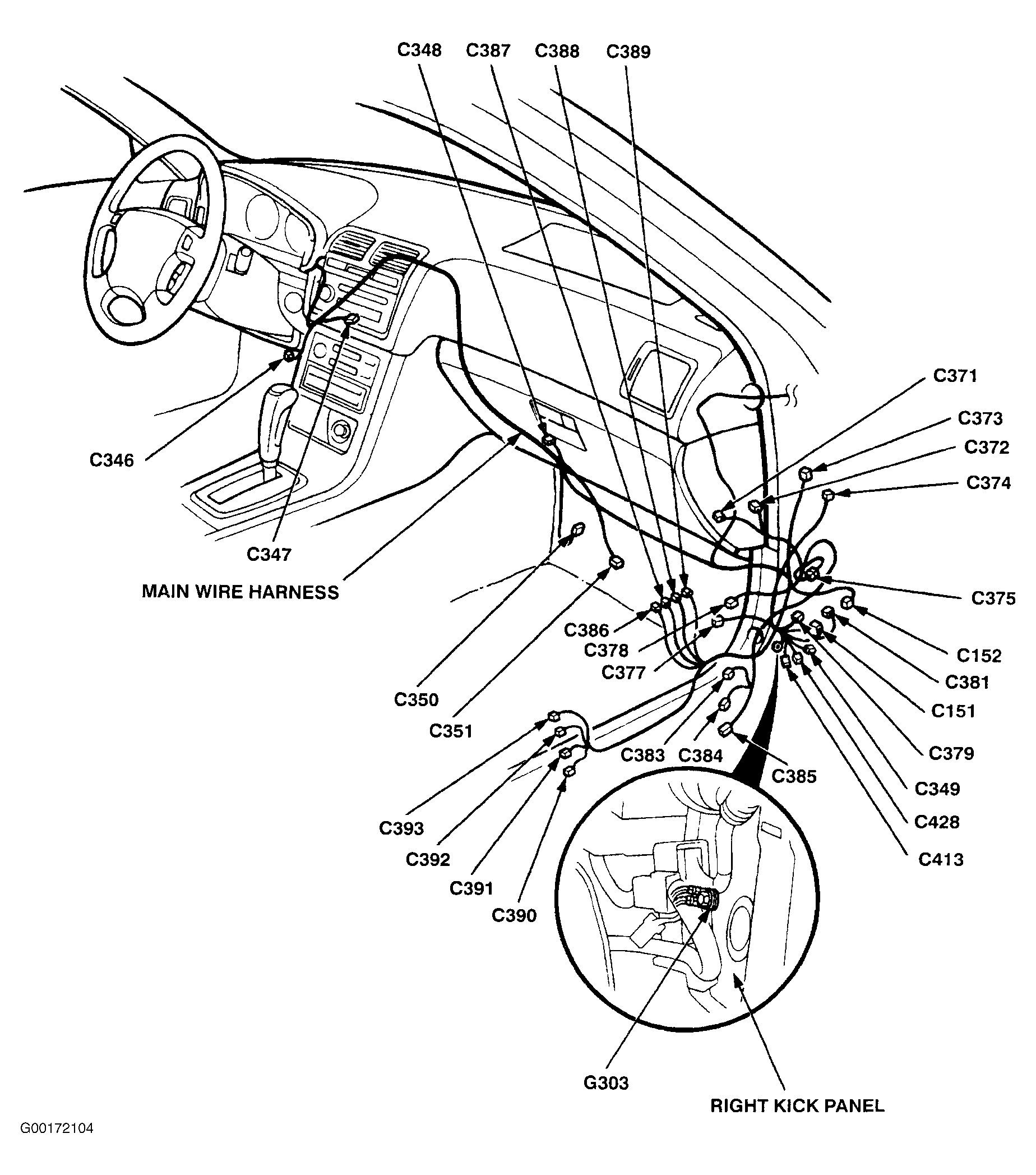

Fig 8: Component Locations (8 Of 9)

G00172104

Courtesy of AMERICAN HONDA MOTOR CO., INC.

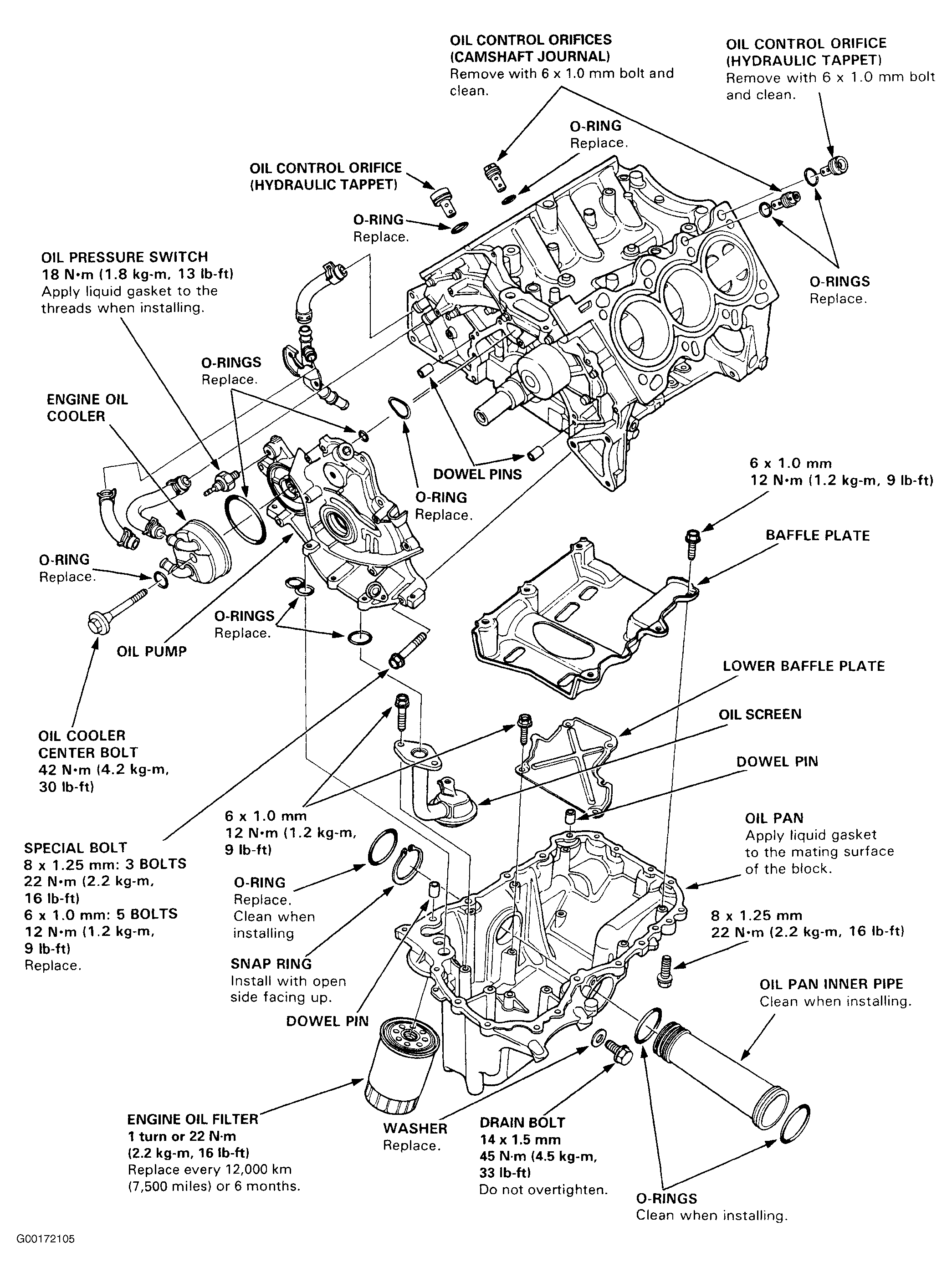

Fig 9: Component Locations (9 Of 9)

G00172105

Courtesy of AMERICAN HONDA MOTOR CO., INC.
