Gearshift Selector

Remove center console. Shift gear selector into Neutral position. Measure clearance between lock pin and lock pin gate. Clearance should be 0.008-0.020" (0.20-0.51 mm). See Fig 1 . If clearance is not within specification, loosen bolt "B" and adjust. After adjustment, verify gearshift selector movement.

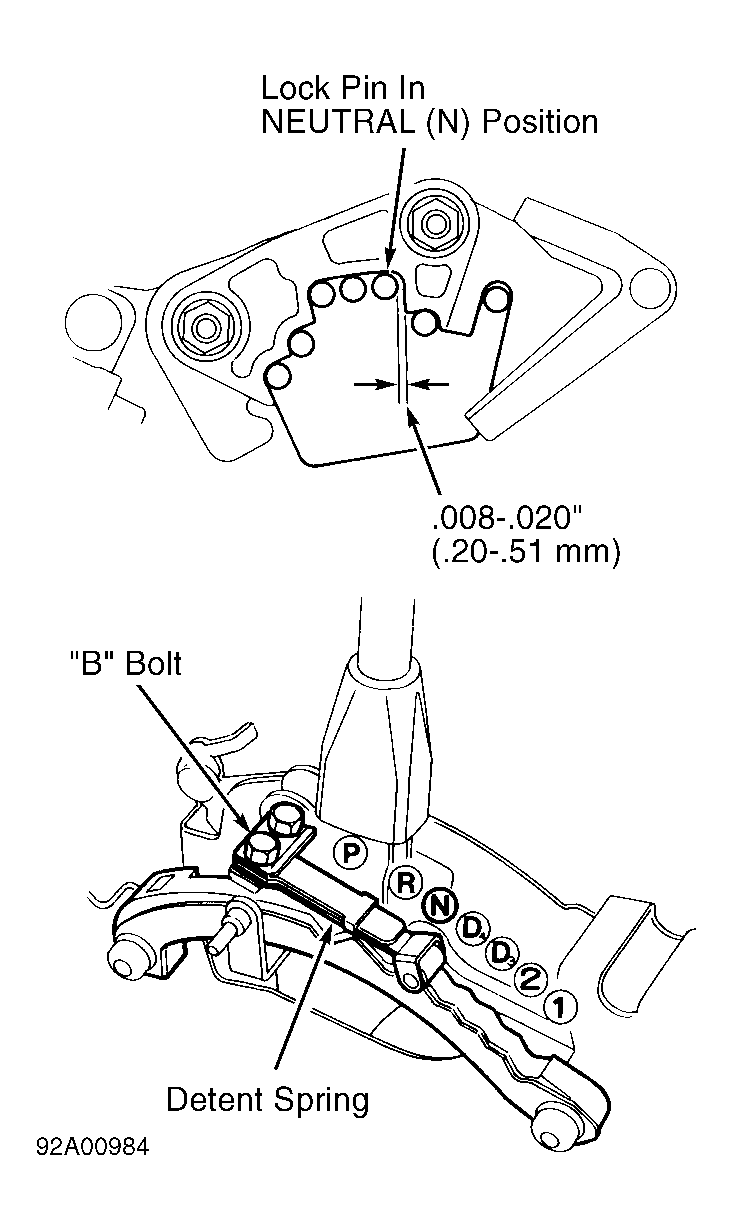

Fig 1: Adjusting Gearshift Selector

Courtesy of AMERICAN HONDA MOTOR CO., INC.
