Line Pressure Test

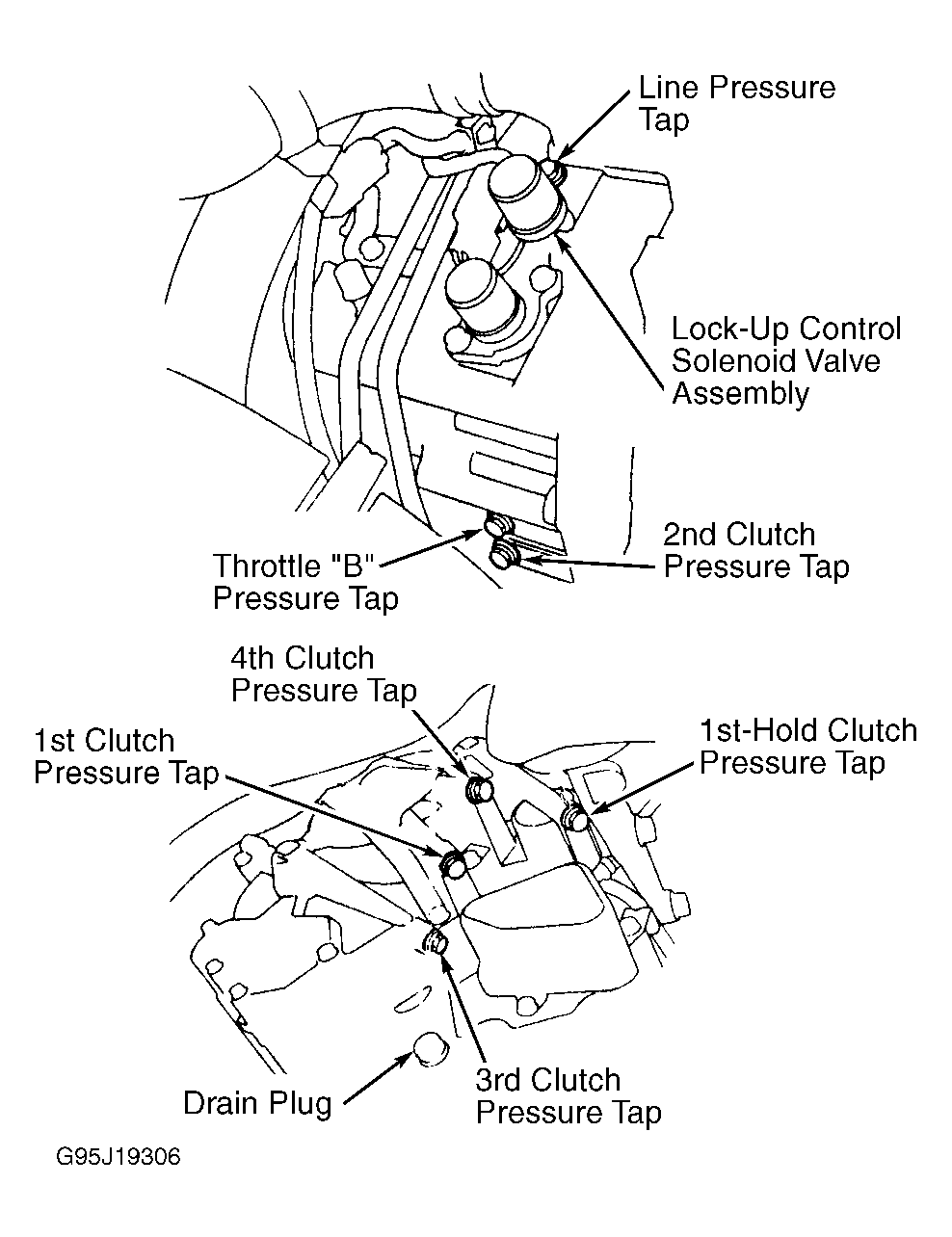

  1. With engine off, remove pressure tap plug from line pressure tap on transaxle. See Figure. Attach Pressure Gauge Set (07406-0020400) to line pressure tap using NEW aluminum washer. Tighten hose fitting to 13 ft. lbs. (18 N.m).
  2. With shift lever in "P" or "N" position, start and operate engine at 2000 RPM. Note line pressure. Line pressure should be within specification. See HYDRAULIC PRESSURE TEST SPECIFICATIONS  table.
  3. If line pressure is not within specification, see the HYDRAULIC PRESSURE TROUBLE SHOOTING  table. Shut engine off.
  4. Using NEW aluminum seal washer, install and tighten pressure tap plug to specification. See TORQUE SPECIFICATIONS .
