Integra GS-R, 4D Sedan
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Warning Systems
>>
Integrated Control Unit
>>
Wiring Diagrams
Wiring Diagrams

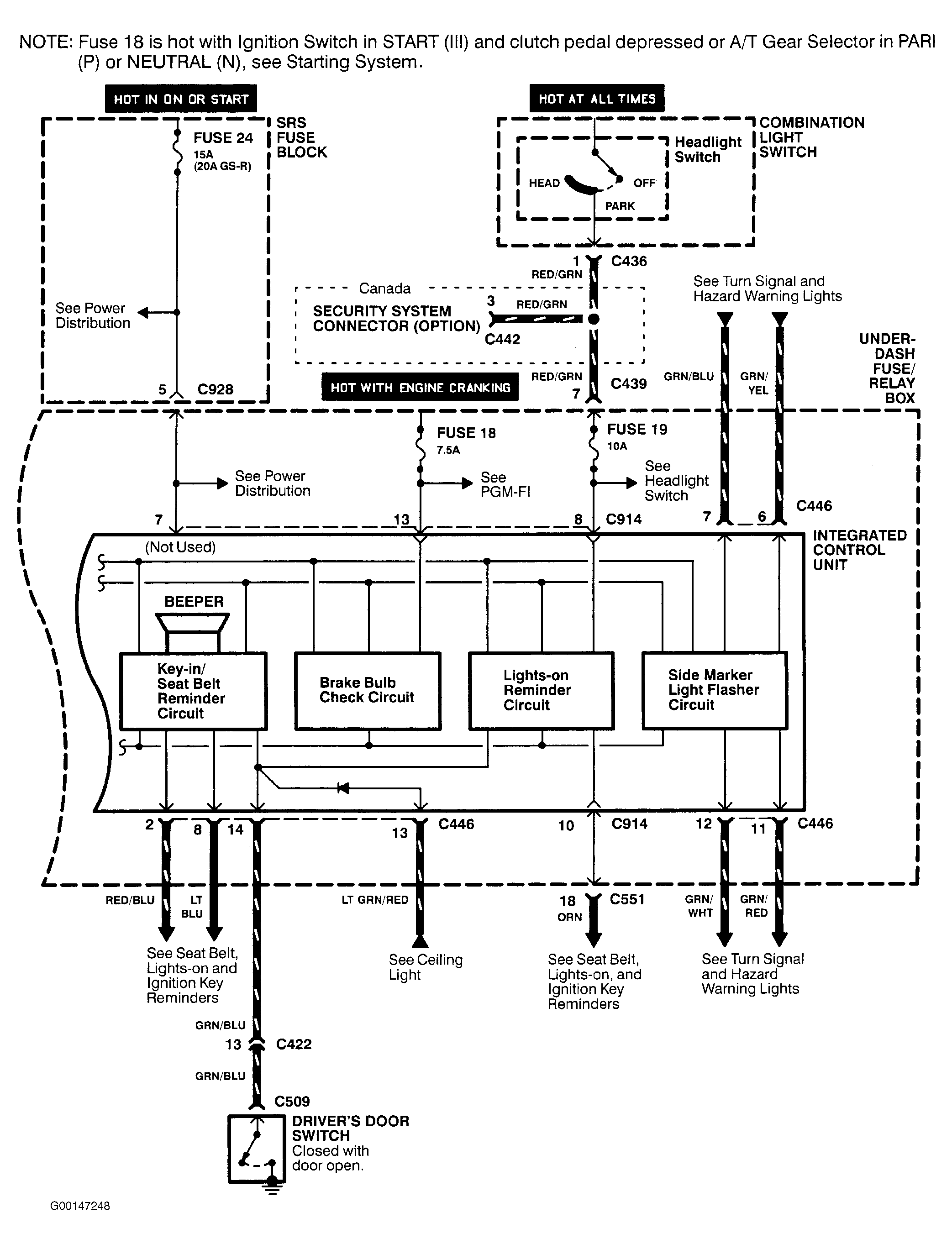

Fig 1: Integrated Control Circuit Wiring Diagram (1994 - 1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

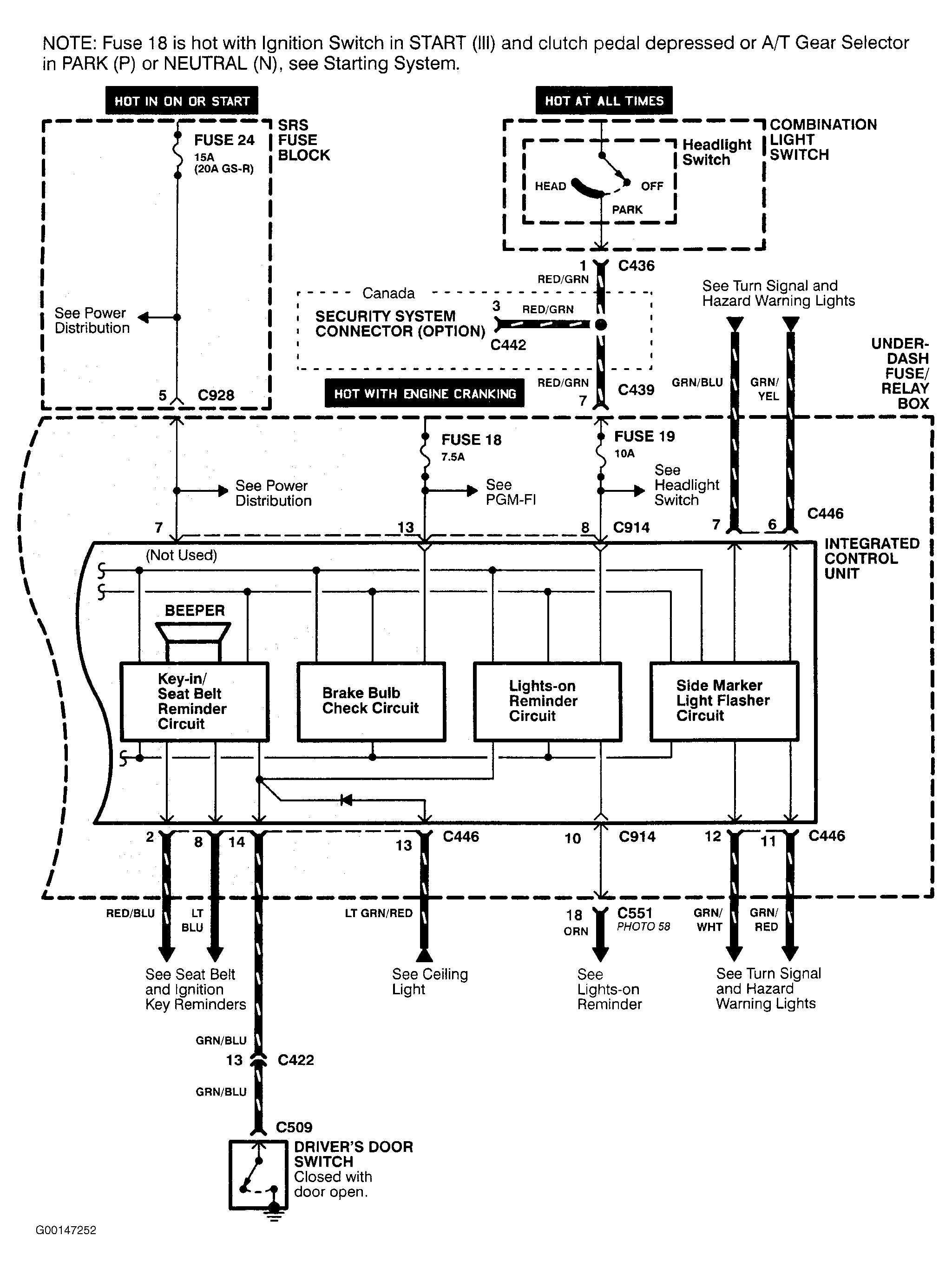

Fig 2: Integrated Control Circuit Wiring Diagram (1994 - 2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

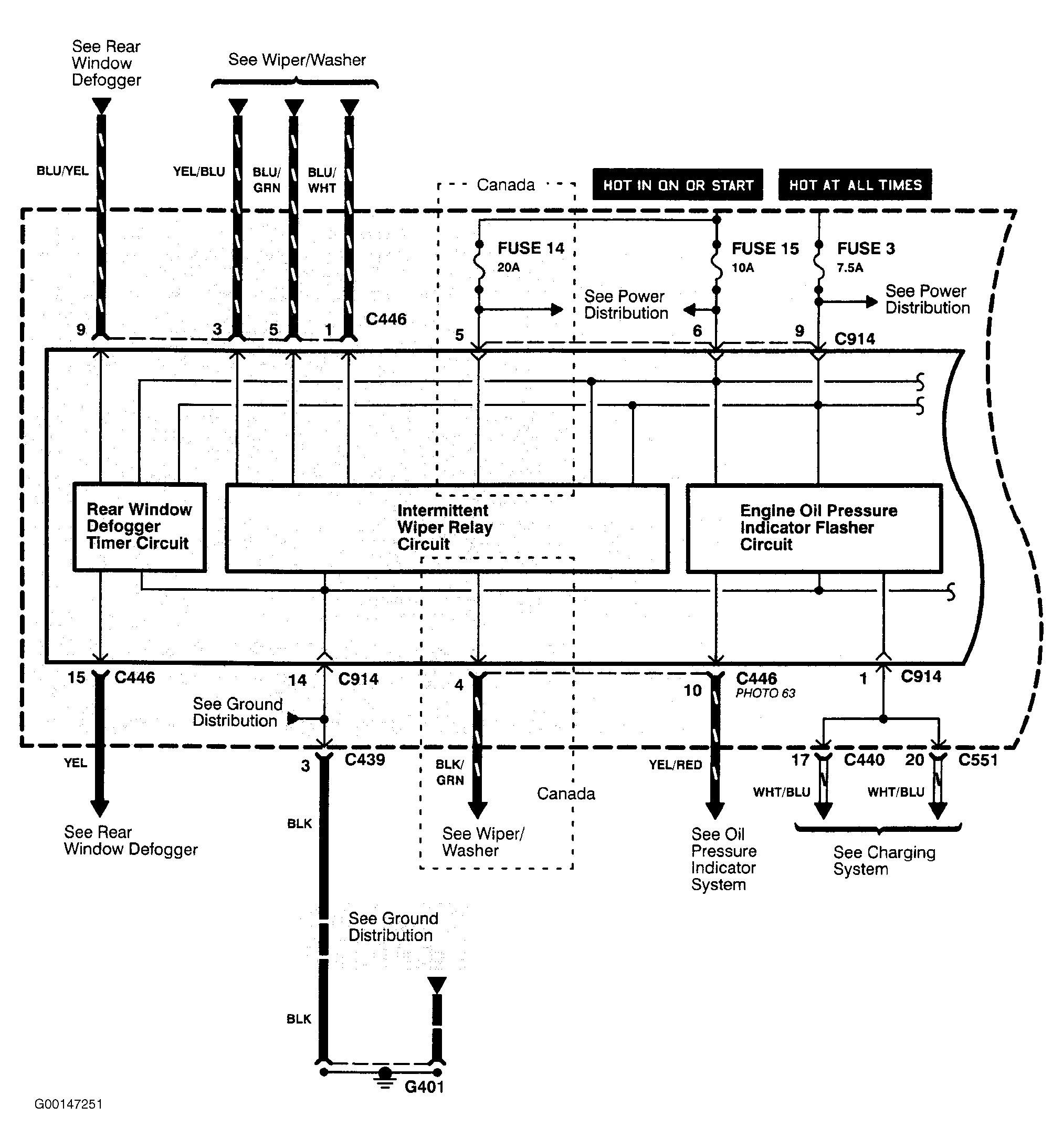

Fig 3: Integrated Control Circuit Wiring Diagram (1995-97 - 1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

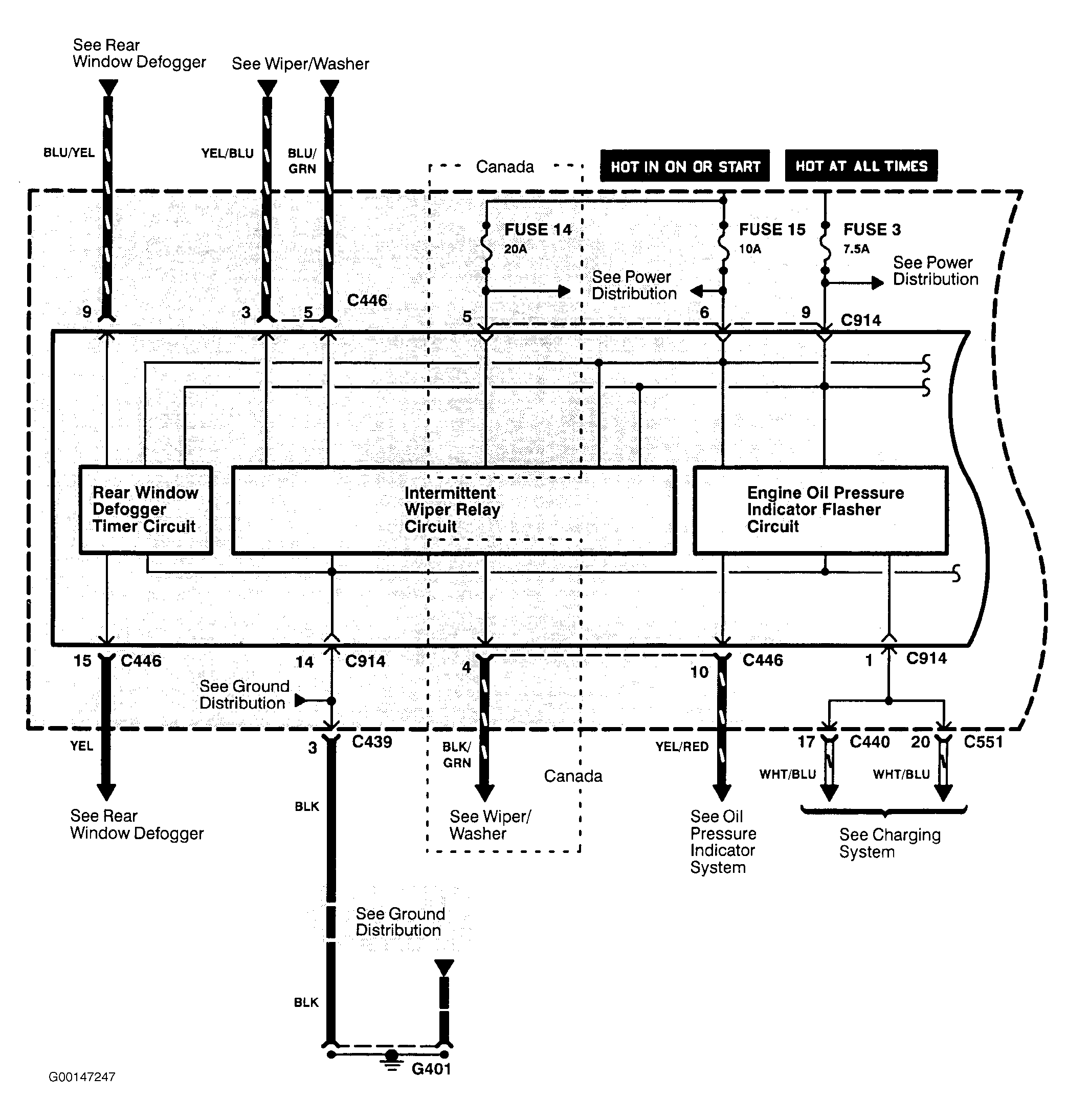

Fig 4: Integrated Control Circuit Wiring Diagram (1995-97 - 2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
