Intermittent Wiper Relay System
Intermittent Wiper Relay System
See
Figure
for connector terminal identification.

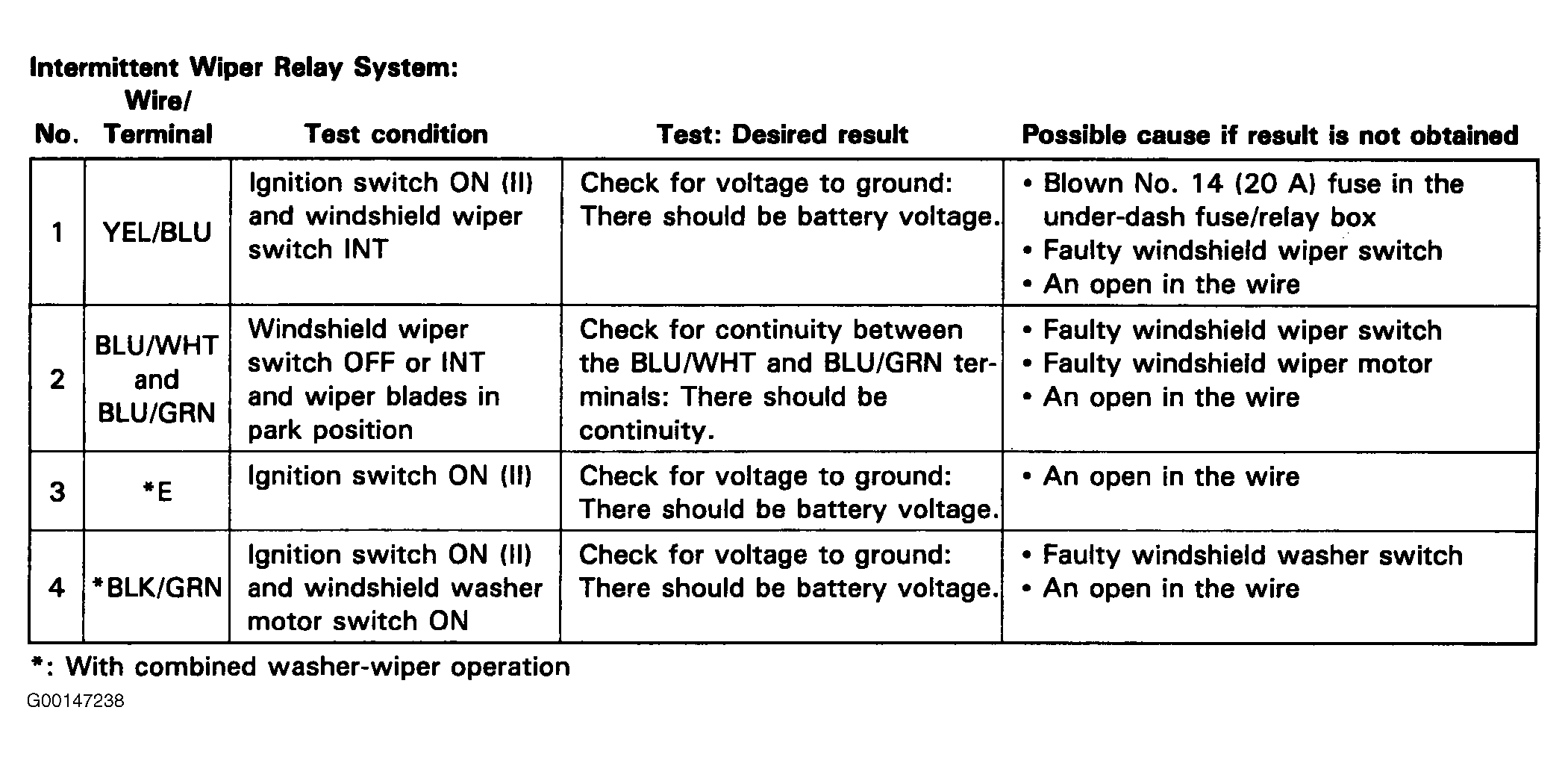

Fig 1: Intermittent Wiper Relay System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
