Rear Window Defogger Timer System

See Figure for connector terminal identification.

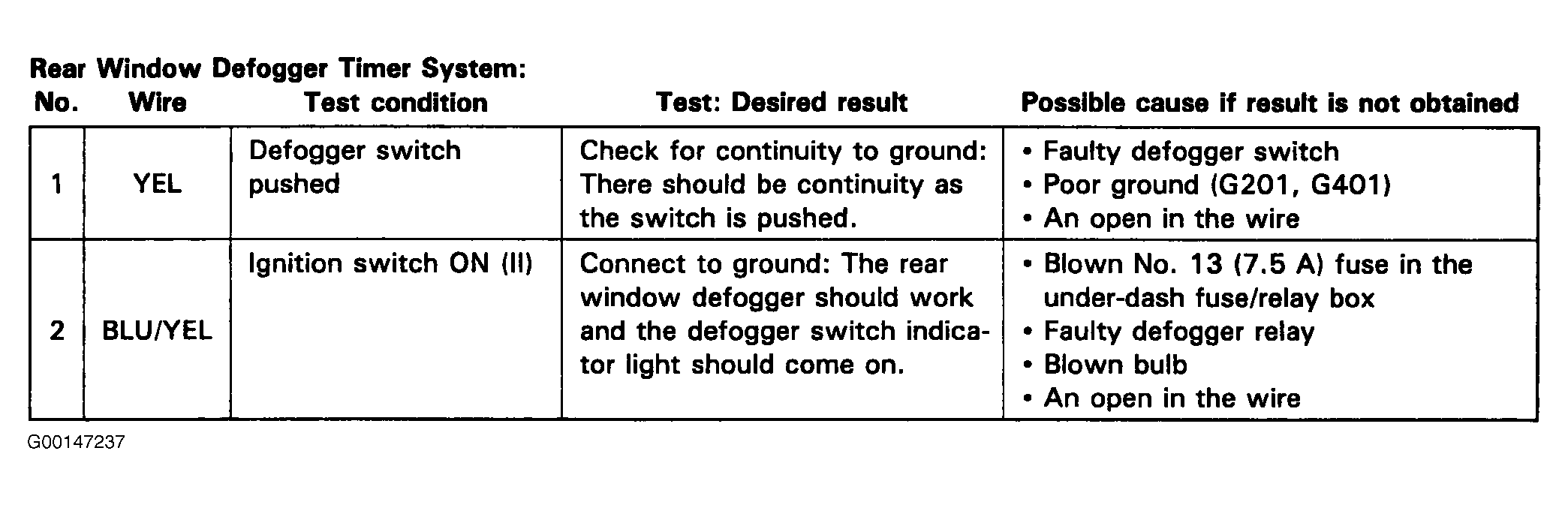

Fig 1: Rear Window Defogger System Circuit Input Test
G00147237Courtesy of AMERICAN HONDA MOTOR CO., INC.
