Control Unit Inputs

  1. Turn ignition off. Cruise control unit is located under instrument panel above glove box. Remove glove box. Unplug power door lock control unit 12-pin connector.
  2. Using a DVOM, perform power door lock unit input tests in Fig 1 . If all input test results are okay, connector and terminals for damage and proper fit. If connector is okay but power door lock still malfunctions, replace power door lock control unit.

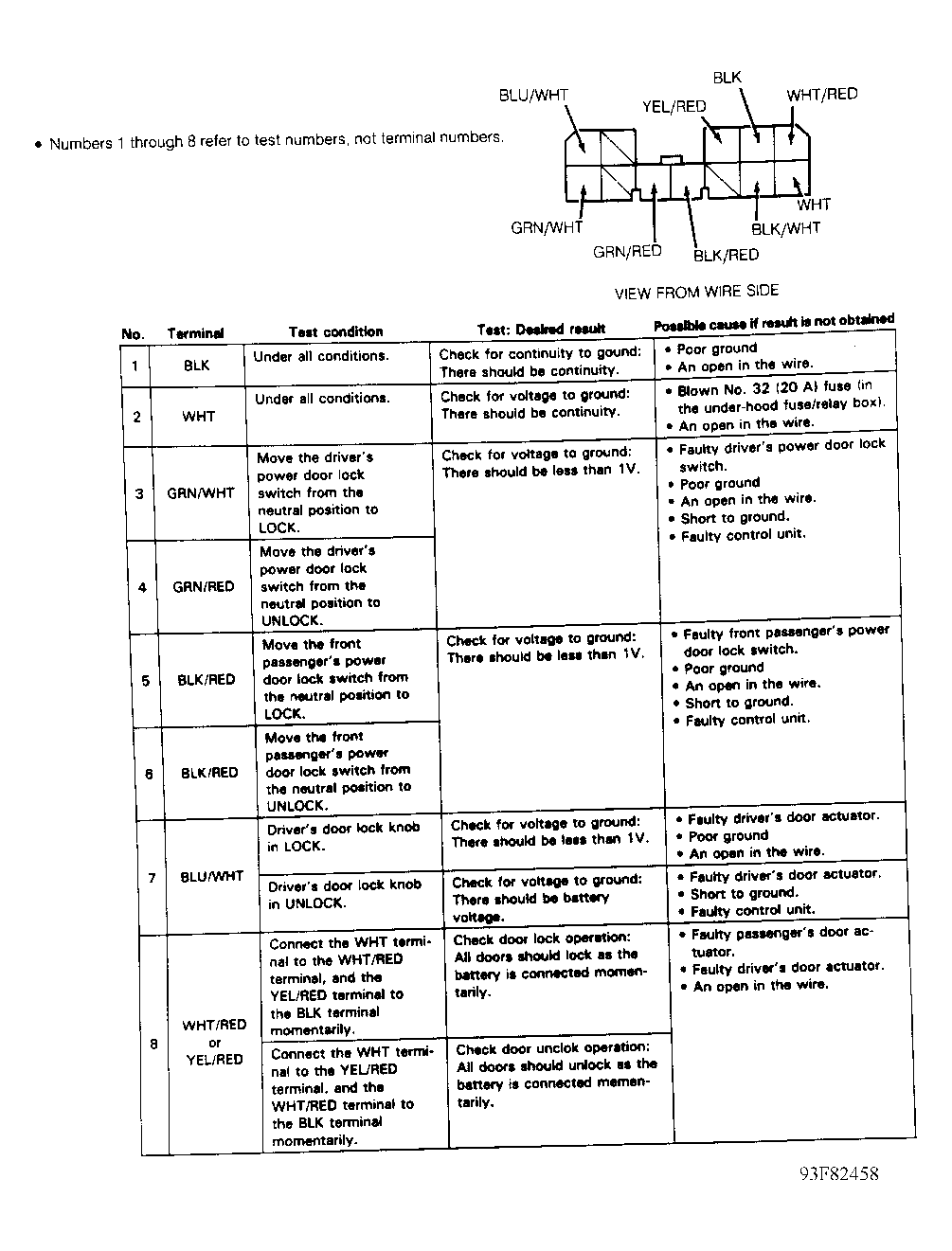

Fig 1: Power Door Locks Control Unit Input Test
G93F82458Courtesy of AMERICAN HONDA MOTOR CO., INC.
