Powertrain Control Module (Pcm)

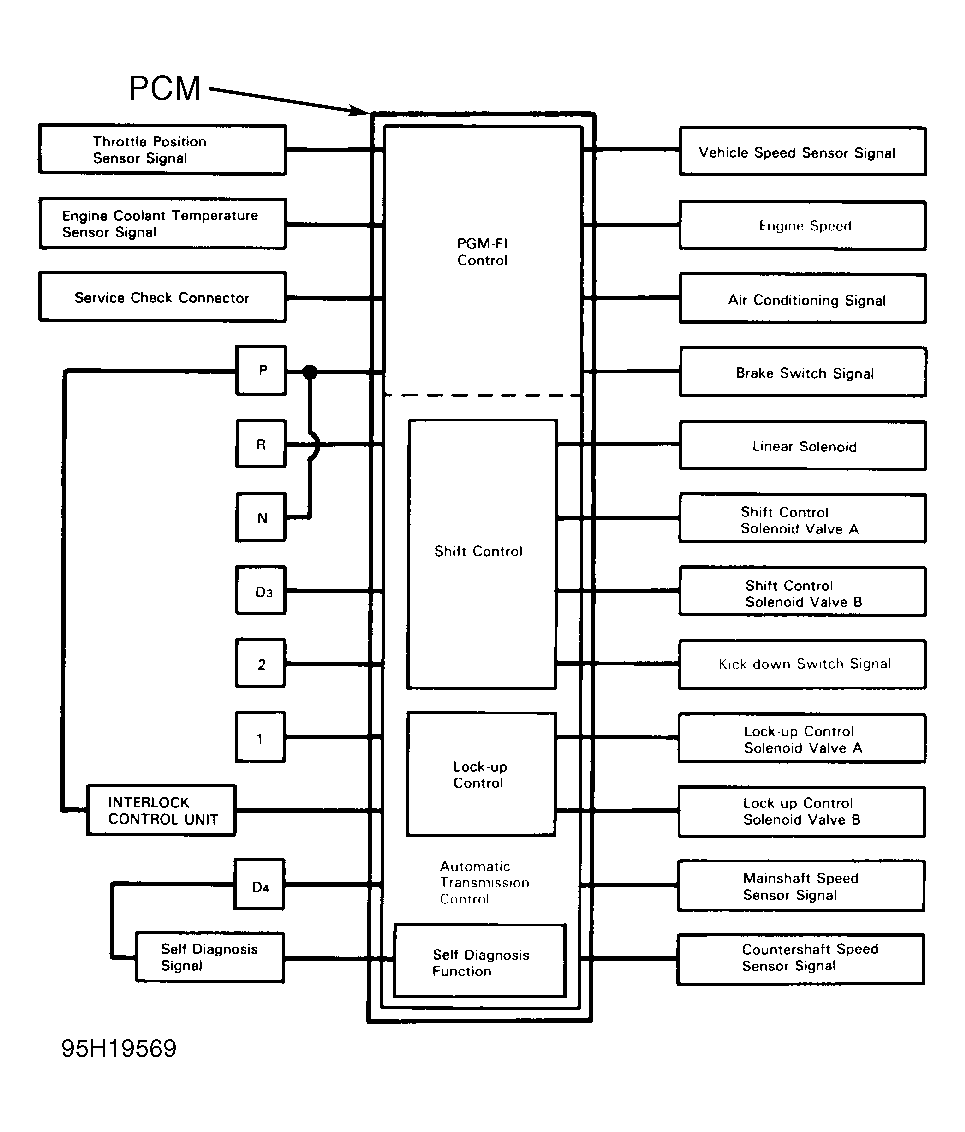

The Powertrain Control Module (PCM) receives information from various input devices and uses this information to control linear solenoid along with shift and lock-up control solenoid valves. See Figure . The PCM contains a self-diagnostic system which stores a fault code if a failure or problem exists in the transaxle electronic control or the fuel injection system. Fault code can be retrieved to determine transaxle problem area. Fault code may also be referred to as Diagnostic Trouble Code (DTC). For information on self-diagnostic system, see SELF-DIAGNOSTIC SYSTEM  . The PCM is located below the carpet on passenger's side of instrument panel. See Figure .
