Component Disassembly & Reassembly: Countershaft: Inspection

Inspect all parts for damage and wear, replace if necessary. Clean all parts in solvent; dry and lubricate all parts. 3rd/4th and 5th gears should be installed with a press before lubricating them.
Measure countershaft at points "A", "B" and "C". See Figure . Use dial indicator to measure runout. Rotate countershaft 2 complete revolutions. Replace countershaft if runout or any part is not within service limit. See COUNTERSHAFT BEARING SURFACE SPECIFICATIONS table.

COUNTERSHAFT BEARING SURFACE SPECIFICATIONS

Application ⁽¹⁾

Standard In. (mm)

Service Limits In. (mm)

"A" Ball Bearing Surface

.984-.984 (24.98-25.00)

.982 (24.94)

"B" Needle Bearing Surface

1.456-1.457 (36.98-37.00)

1.454 (36.93)

"C" Ball Bearing Surface

1.299-1.300 (33.00-33.01)

1.297 (32.94)

Runout Limits

.0008 (.020)

.0020 (.050)

⁽¹⁾	"A", "B" and "C" refer to measuring points indicated in Fig. Figure .

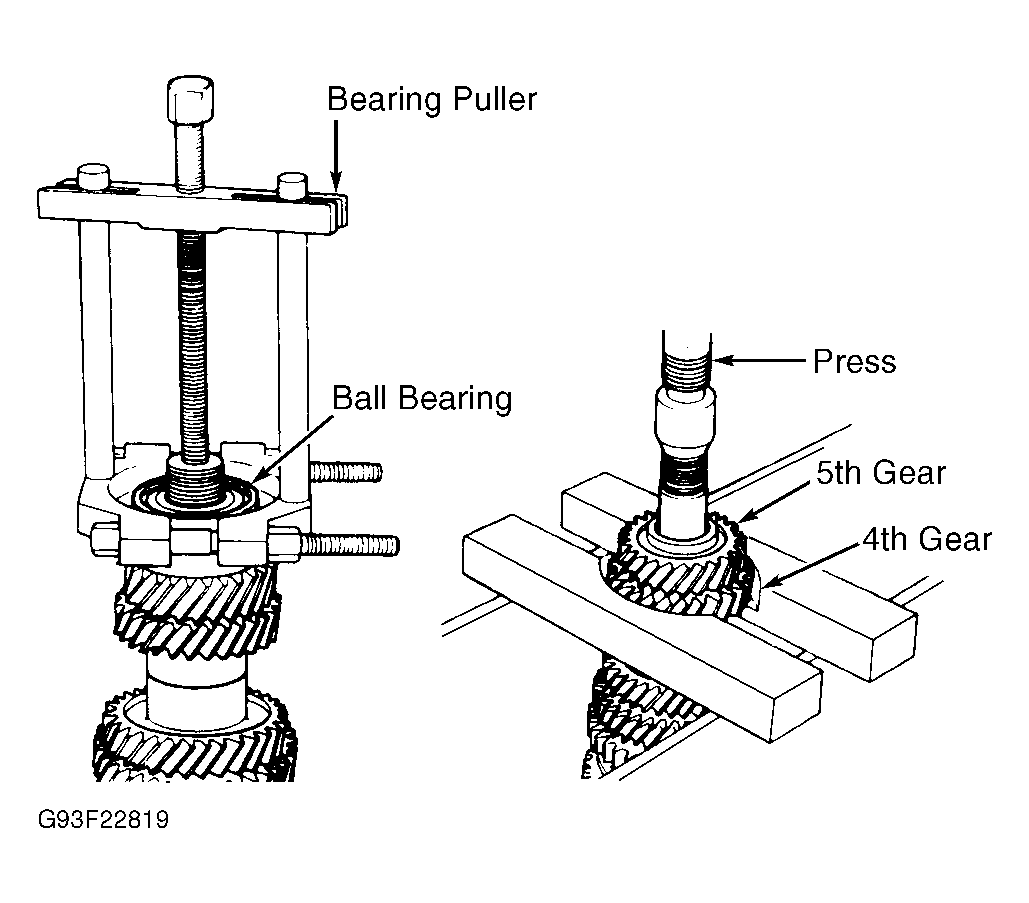

CAUTION: Use a press to install 4th and 5th gears. DO NOT exceed a maximum of 5733 lbs. pressure while supporting countershaft on blocks. Lubricate all parts only after countershaft is reassembled.
