Timing Belt: Installation
WARNING: This page is about a different variant/trim than selected.

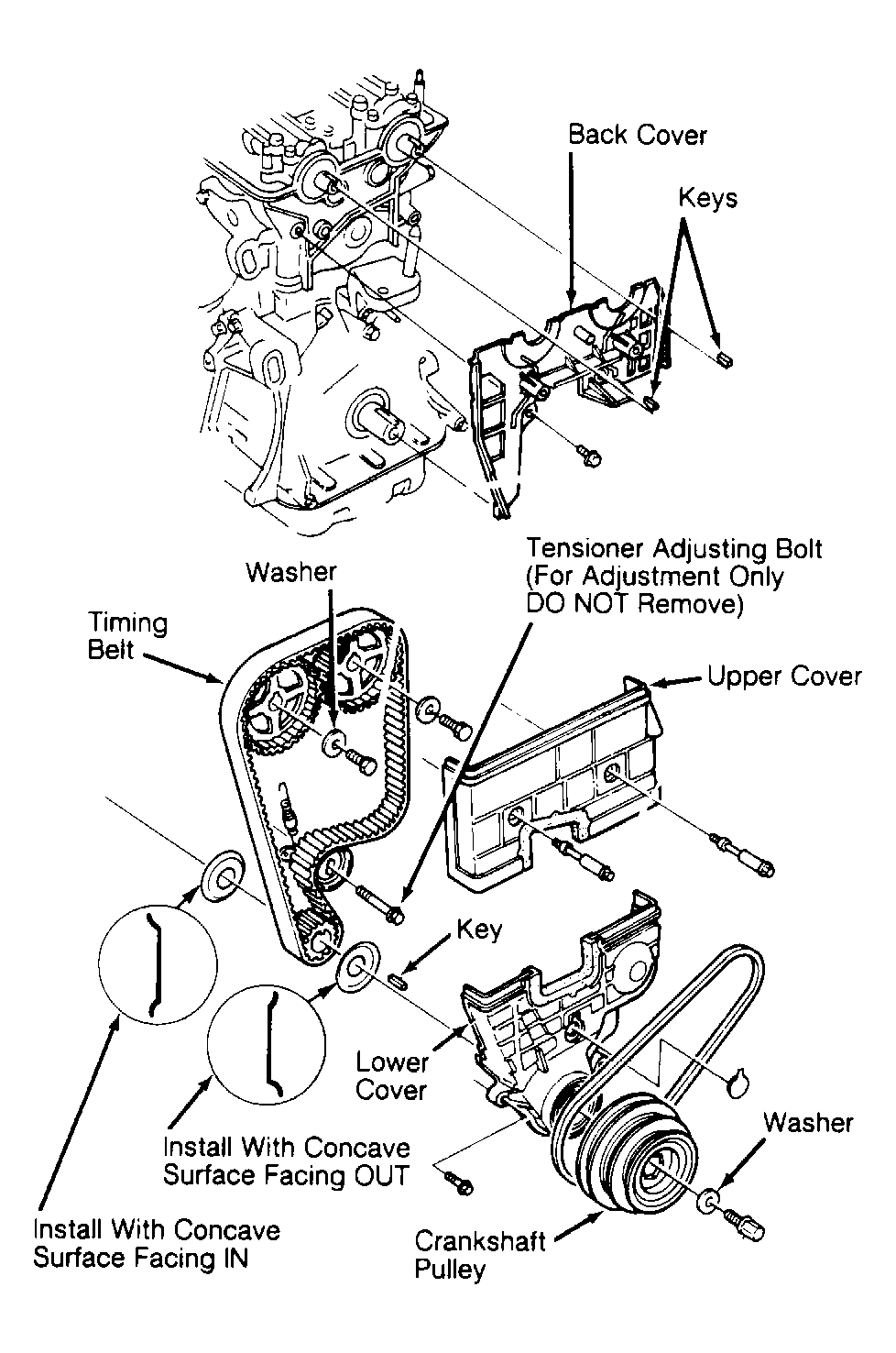

Ensure No. 1 piston is at TDC. Install timing belt onto sprockets. DO NOT bend or twist belt excessively. Ensure arrow (made during removal procedure) on used belt points in original rotation direction. Adjust timing belt tension. See TIMING BELT TENSION ADJUSTMENT under ADJUSTMENTS. To complete installation, reverse removal procedure. Tighten crankshaft pulley bolt to 147 ft. lbs. (200 N.m), loosen, then retighten to 133 ft. lbs. (180 N.m).
