Removal & Installation: Engine: Installation

WARNING: This page is about a different variant/trim than selected.

To install, reverse removal procedure. To prevent excessive engine vibration and premature engine mount wear, tighten engine/transaxle mounts in specified sequence. See Fig 1 .
When installing drive axles, use new spring clips. Insert drive axles until spring clips click into groove of differential side gear. Ensure harness connectors and hoses are connected properly.
Ensure control cables are not bent or pinched and are adjusted properly. On M/T models, adjust clutch pedal free play. Verify transaxle shifts smoothly.
On all models, adjust drive belt tension. Fill or top off all fluids. Fill and bleed air from cooling system. See BLEEDING COOLING SYSTEM. Start engine and check for leaks.

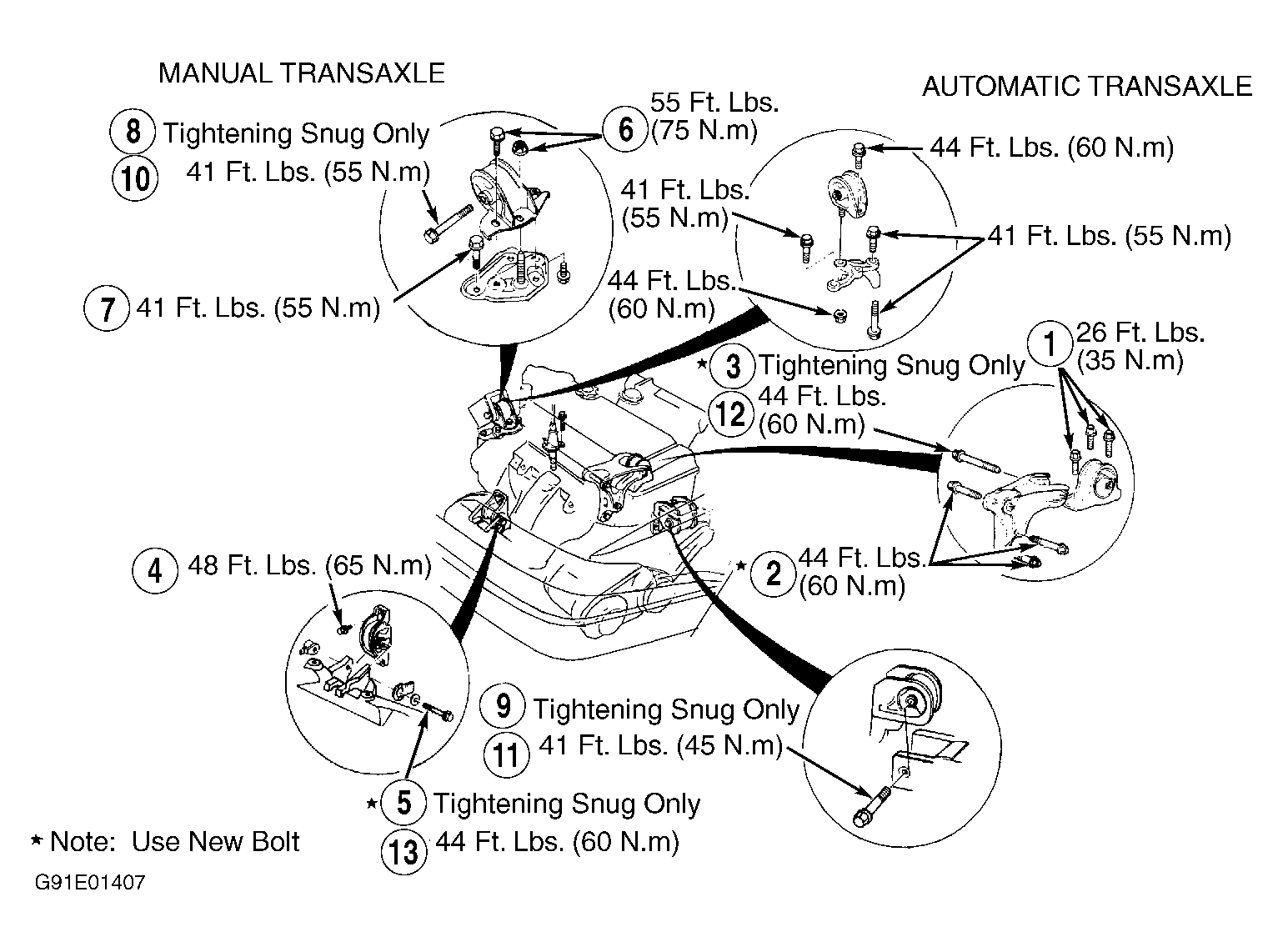

Fig 1: Engine/Transaxle Mount Tightening Sequence

Courtesy of AMERICAN HONDA MOTOR CO., INC.
