Piston Pin Removal

  1. Install Piston Base Head (07HAF-PL20102) and Piston Pin Base Insert (07GAF-PH60300) into Base(07973-6570500). Turn handle on Piston Pin Driver Head (07973-PE00320) so piston driver length is 2.035" (51.70 mm). See Fig 1.
  2. Insert Piston Driver Shaft (07973-PE00310) into Pilot Collar(07LAF-PR30100). Place piston onto base. Press out piston pin. When removing or installing piston pin, set piston in press with embossed side facing up. Align lugs on base insert with recessed part of piston.

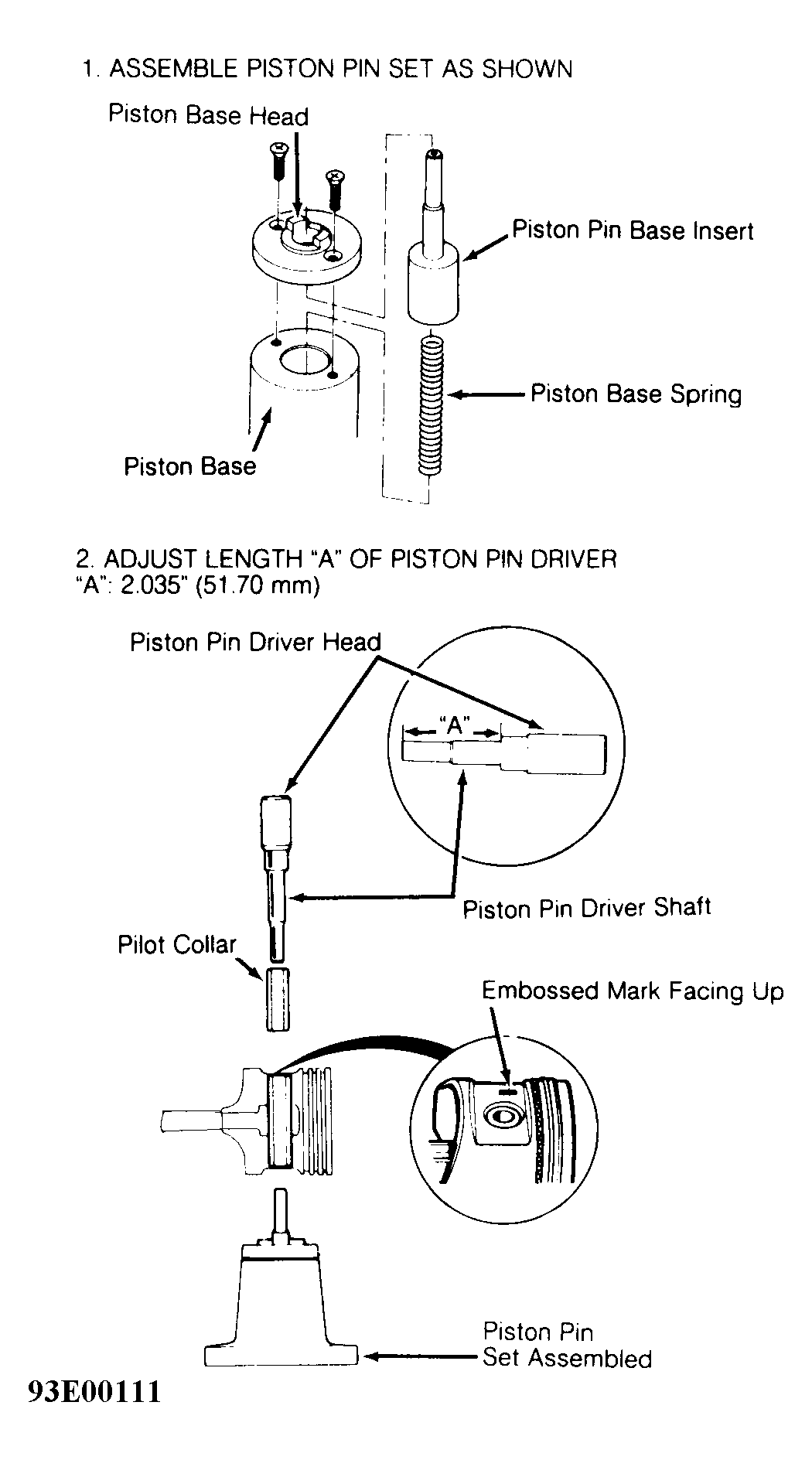

Fig 1: Removing Piston Pin
G93E00111Courtesy of AMERICAN HONDA MOTOR CO., INC.
