RS Model

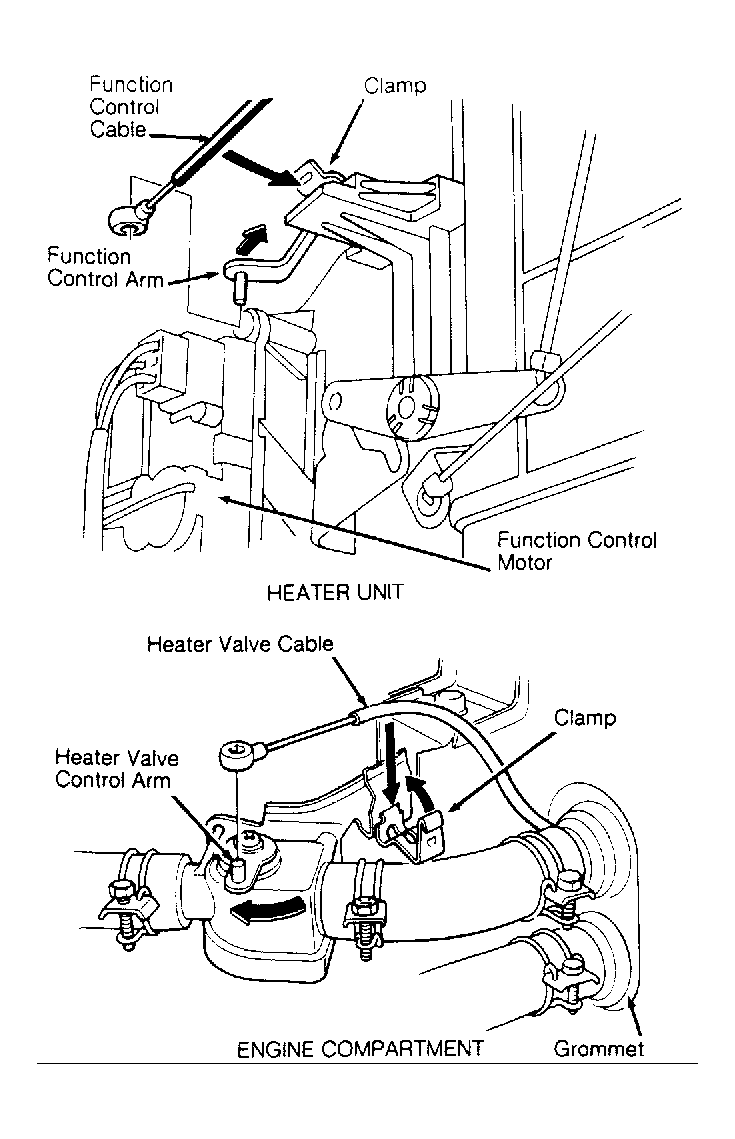

Slide function control lever to defrost position. Turn function control arm to front. Connect cable end to function control arm. See Figure . At heater assembly, slide cable housing back gently to eliminate slack, but not enough to move function control lever. Snap cable housing into clamp
