Rear Window Defogger Timer Circuit

For testing procedure, see Fig 1 .

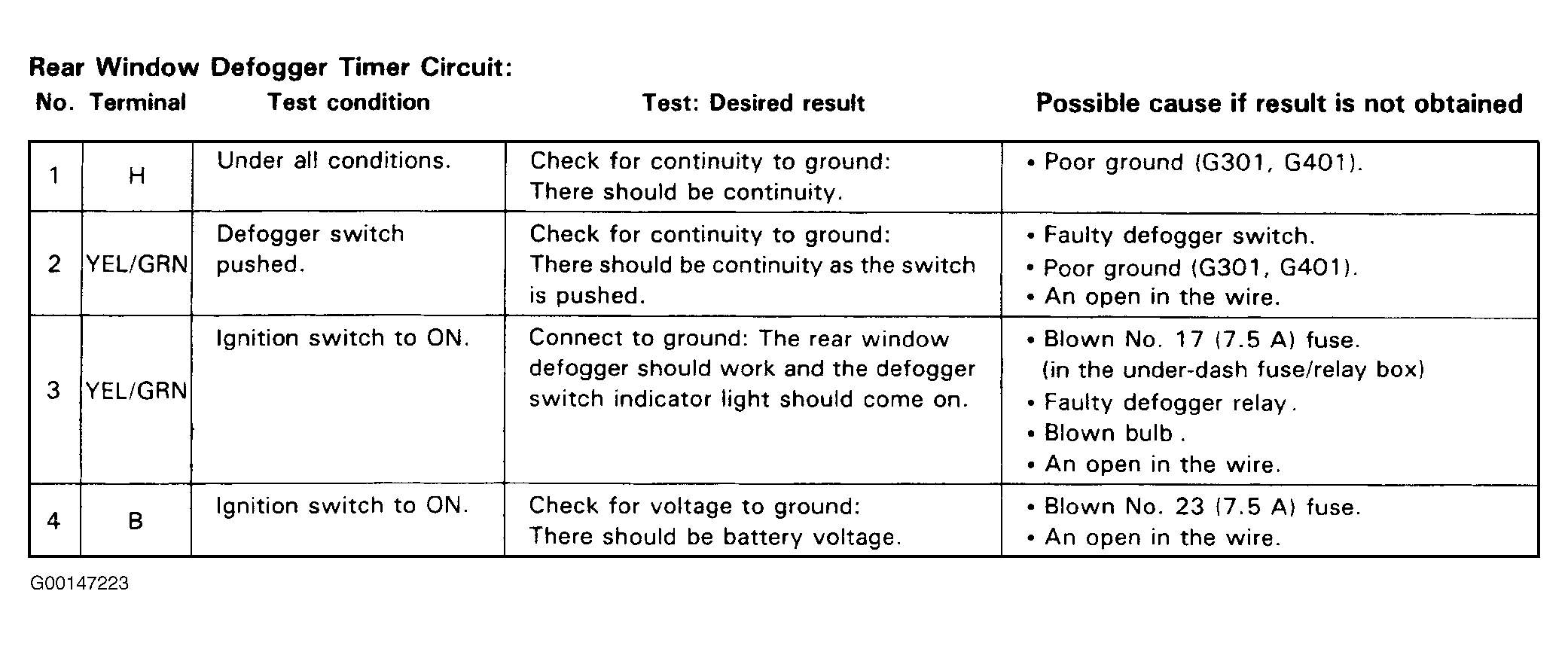

Fig 1: Rear Window Defogger Timer Circuit Input Test

G00147223

Courtesy of AMERICAN HONDA MOTOR CO., INC.
