Oil Pressure Indicator Flasher System
Oil Pressure Indicator Flasher System
For testing procedure, see
Fig 1
.

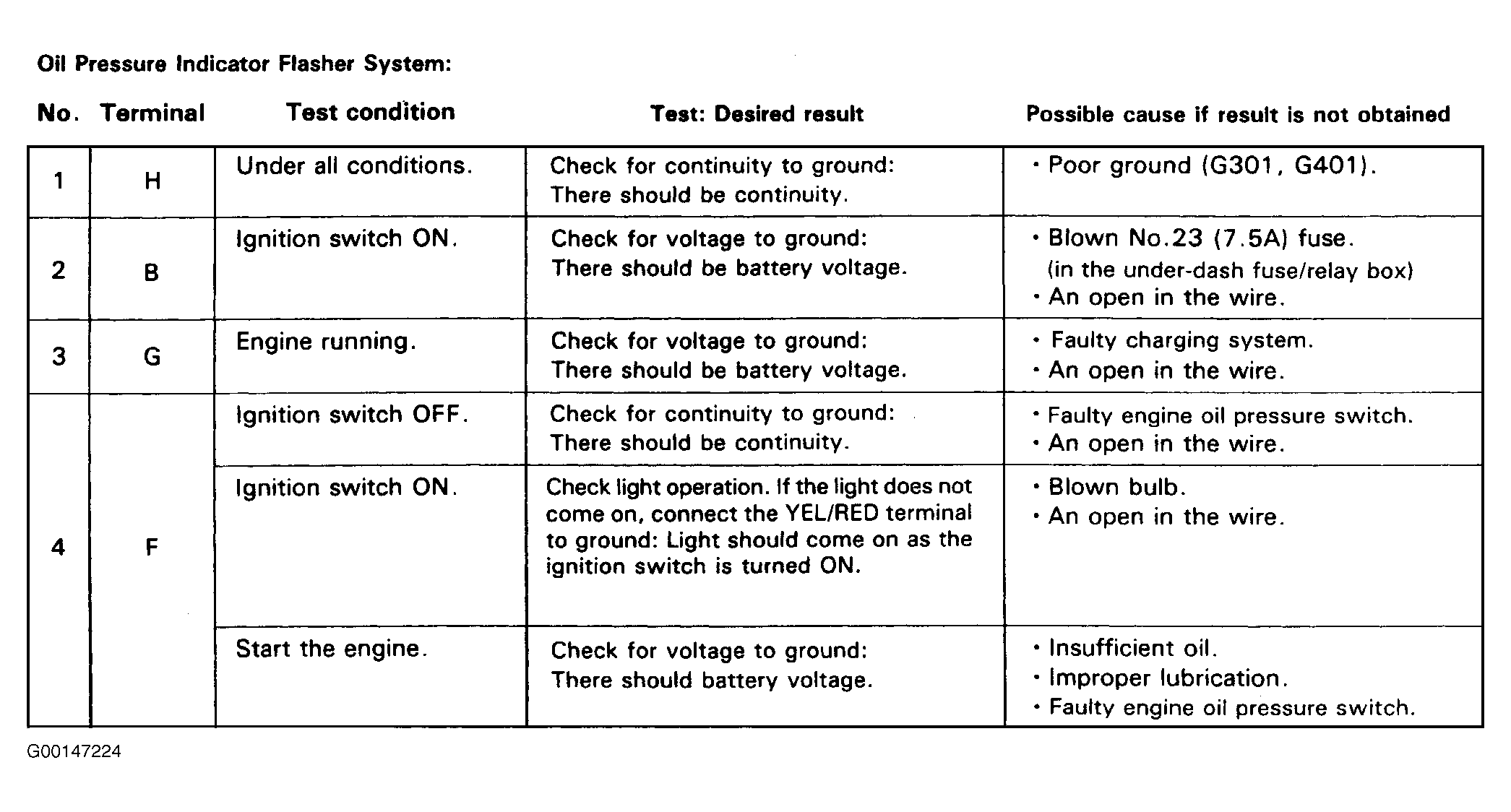

Fig 1: Oil Pressure Indicator Flasher System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
