Intermittent Wiper Relay Circuit

For testing procedure, see Fig 1 .

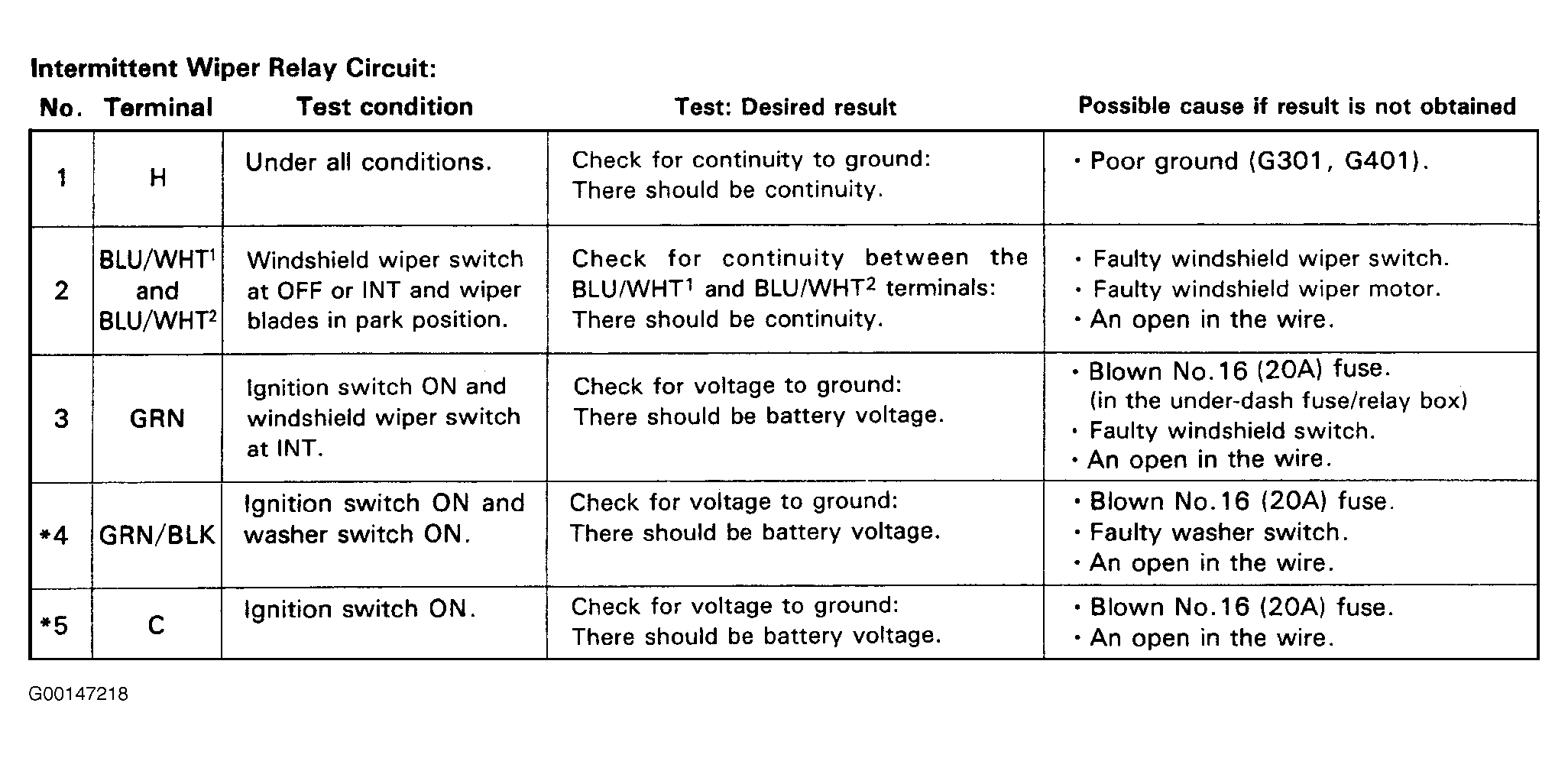

Fig 1: Intermittent Wiper Relay Circuit Input Test

G00147218

Courtesy of AMERICAN HONDA MOTOR CO., INC.
