| A/C Compressor Bolts |
16 (22) |
| A/C Compressor Bracket Bolts |
33 (45) |
| Alternator Bracket Bolts |
33 (45) |

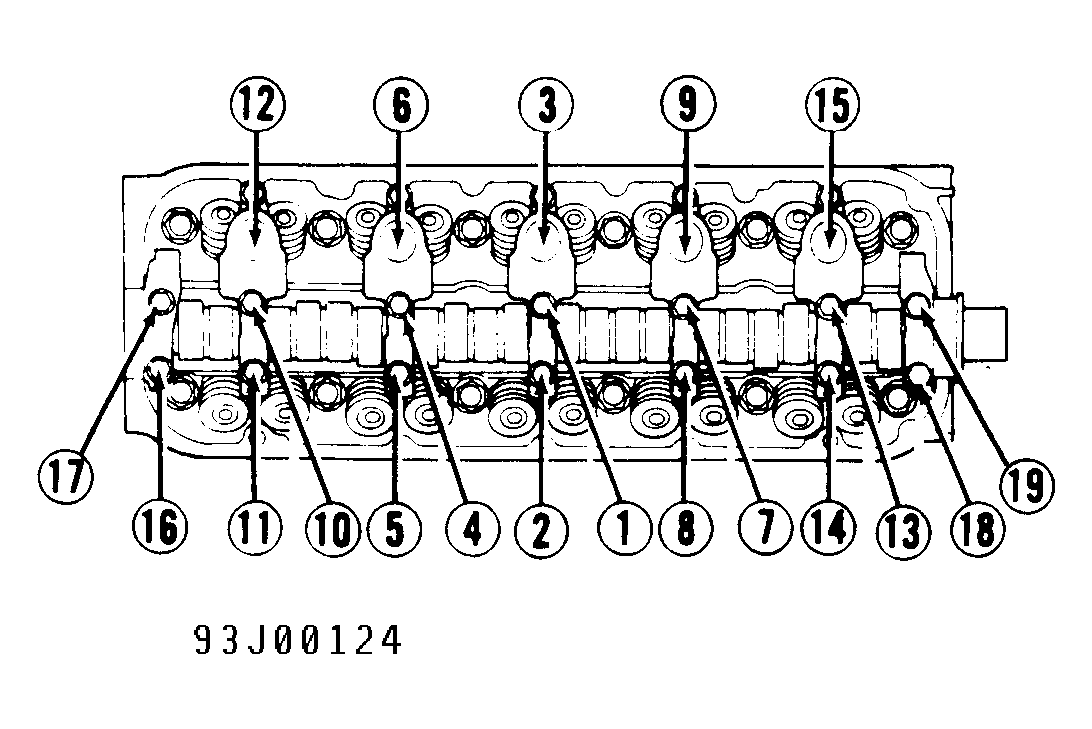

| Camshaft Bearing Cap Bolts |
| 6-mm Bolts |
|
| 8-mm Bolts |
16 (22) |
| Camshaft Pulley Bolts |
55 (75) |
| Clutch Slave Cylinder Bolts |
16 (22) |
| Connecting Rod Nuts |
24 (33) |
| Crankshaft Pulley Bolt |
181 (250) |

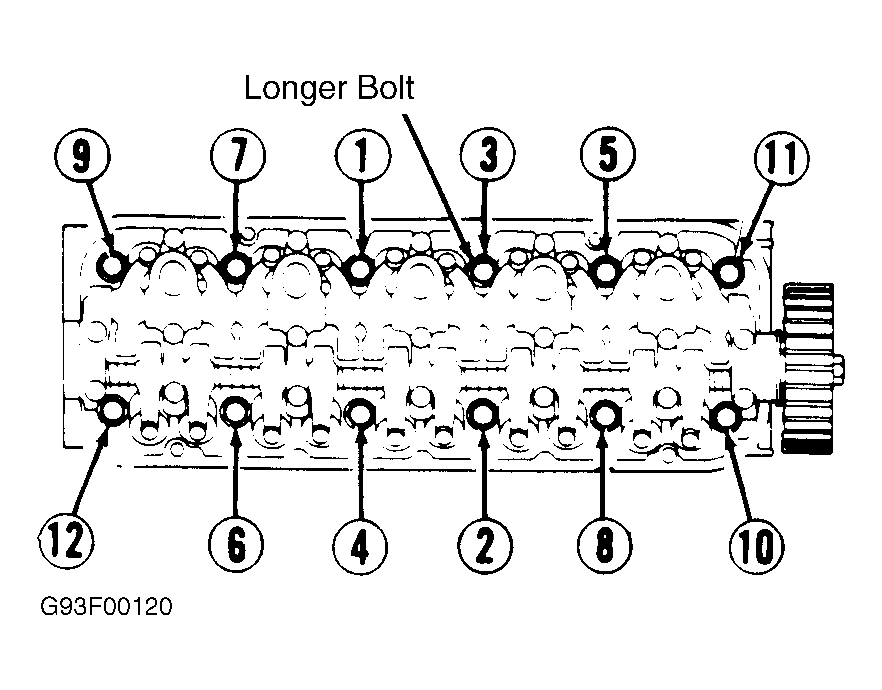

| Cylinder Head Bolts |
| Stage 1 |
55 (75) |
| Stage 2 |
74 (100) |

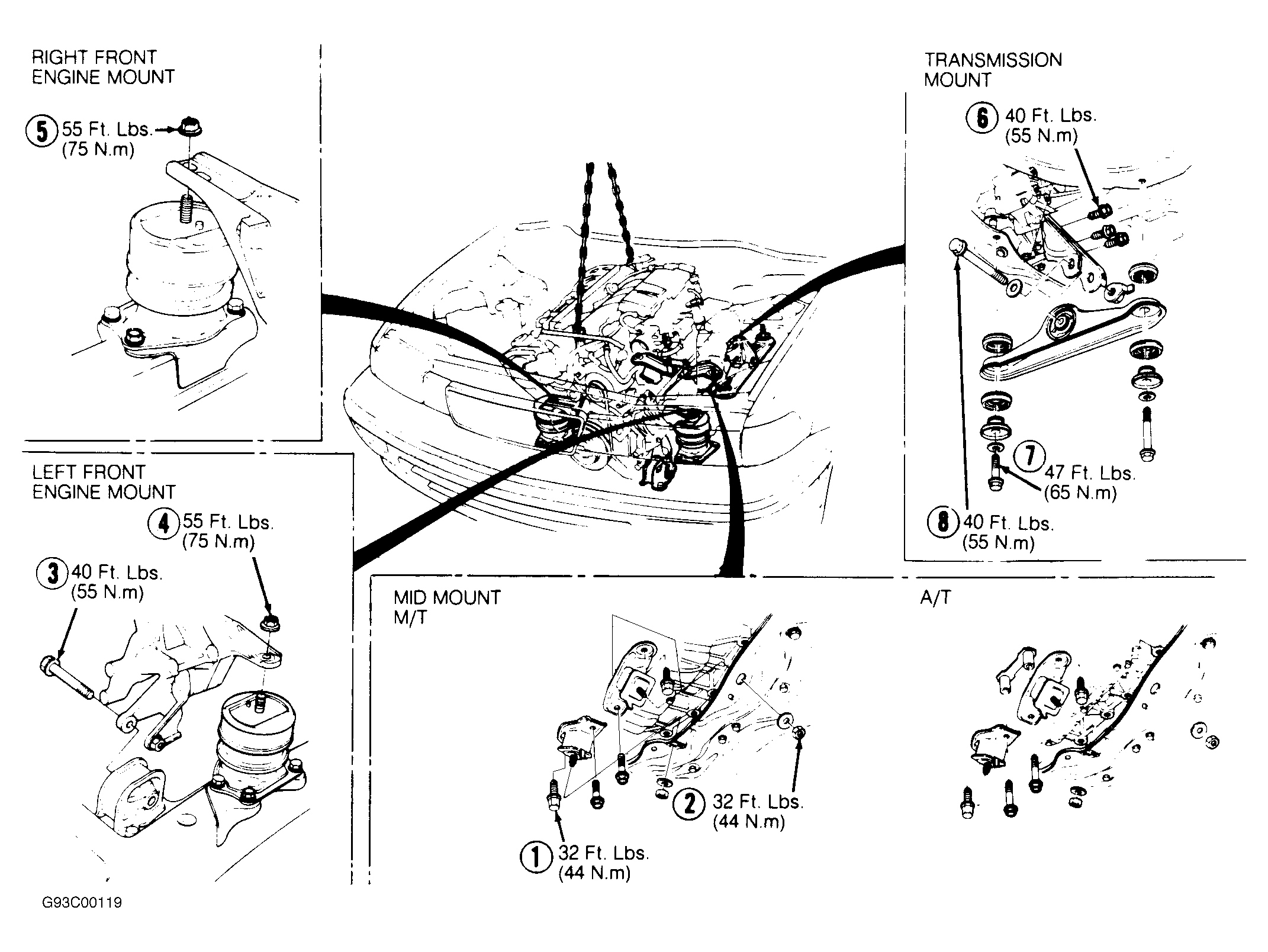

| Engine Mounts |
|
| Engine Block-To-Transaxle Housing Bolts |
55 (75) |
| Exhaust Manifold |
| Shroud Bolts |
16 (22) |
| Nuts |
22 (30) |
| Exhaust Pipe Flange Nuts |
40 (54) |
| Flywheel Bolts |
77 (105) |
| Intake Manifold Bolts/Nuts |
16 (22) |
| Main Bearing Cap Bolts |
| Stage 1 |
22 (30) |
| Stage 2 |
50 (68) |
| Oil Pan Bolts |
18 (24) |
| Oil Pump Housing Bolts |
| 6-mm Bolts |
|
| 8-mm Bolts |
16 (22) |
| Power Steering Pump Mount Bolt |
33 (45) |
| Timing Belt Tension Adjuster Bolt |
33 (45) |
| Torque Converter Drive Plate Bolts |
55 (75) |
| INCH Lbs. (N.m) |
| Fuel Service Bolt |
106 (12) |
| Oil Pump Screen Bolts |
106 (12) |
| Speed Sensor Bolt |
106 (12) |
| Timing Belt Cover Bolts |
106 (12) |
| Valve Cover Bolts |
106 (12) |
| Water Pump Bolts |
106 (12) |
