Oil Pressure Indicator Flasher System
Oil Pressure Indicator Flasher System
See
Figure
for connector terminal identification.

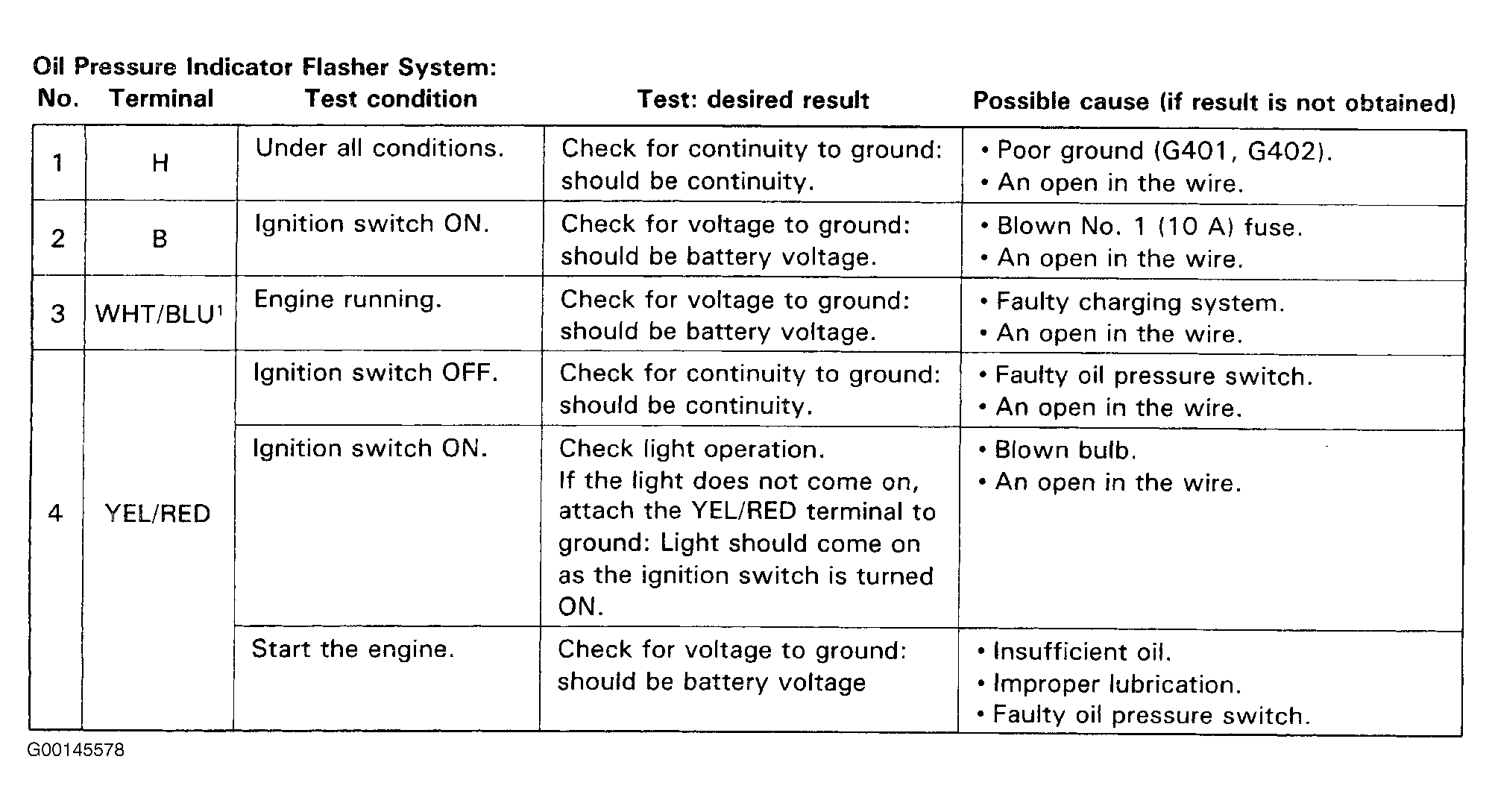

Fig 1: Oil Pressure Indicator Flasher System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
