Home >> Acura >> 1992 >> Vigor GS, Automatic >> Repair and Diagnosis >> Body & Frame >> Power Mirrors >> System Tests >> Switch Test

Switch Test

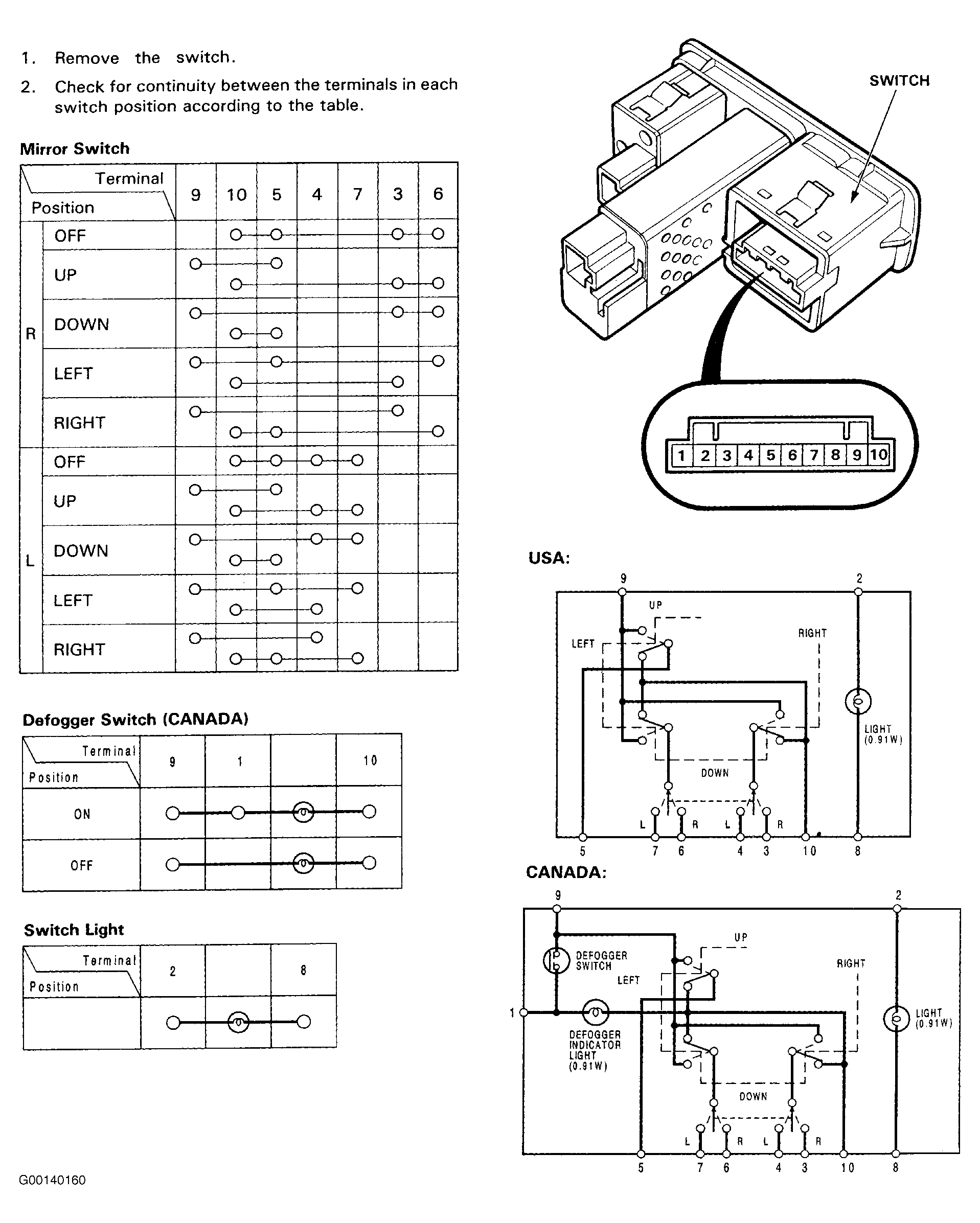

For testing procedures, see Fig 1 .

Fig 1: Switch Test

G00140160

Courtesy of AMERICAN HONDA MOTOR CO., INC.
