Component Locations

COMPONENT LOCATIONS

Component	Location
Under-Dash Fuse/Relay Box	Under lower left side of instrument panel, behind left kick panel.

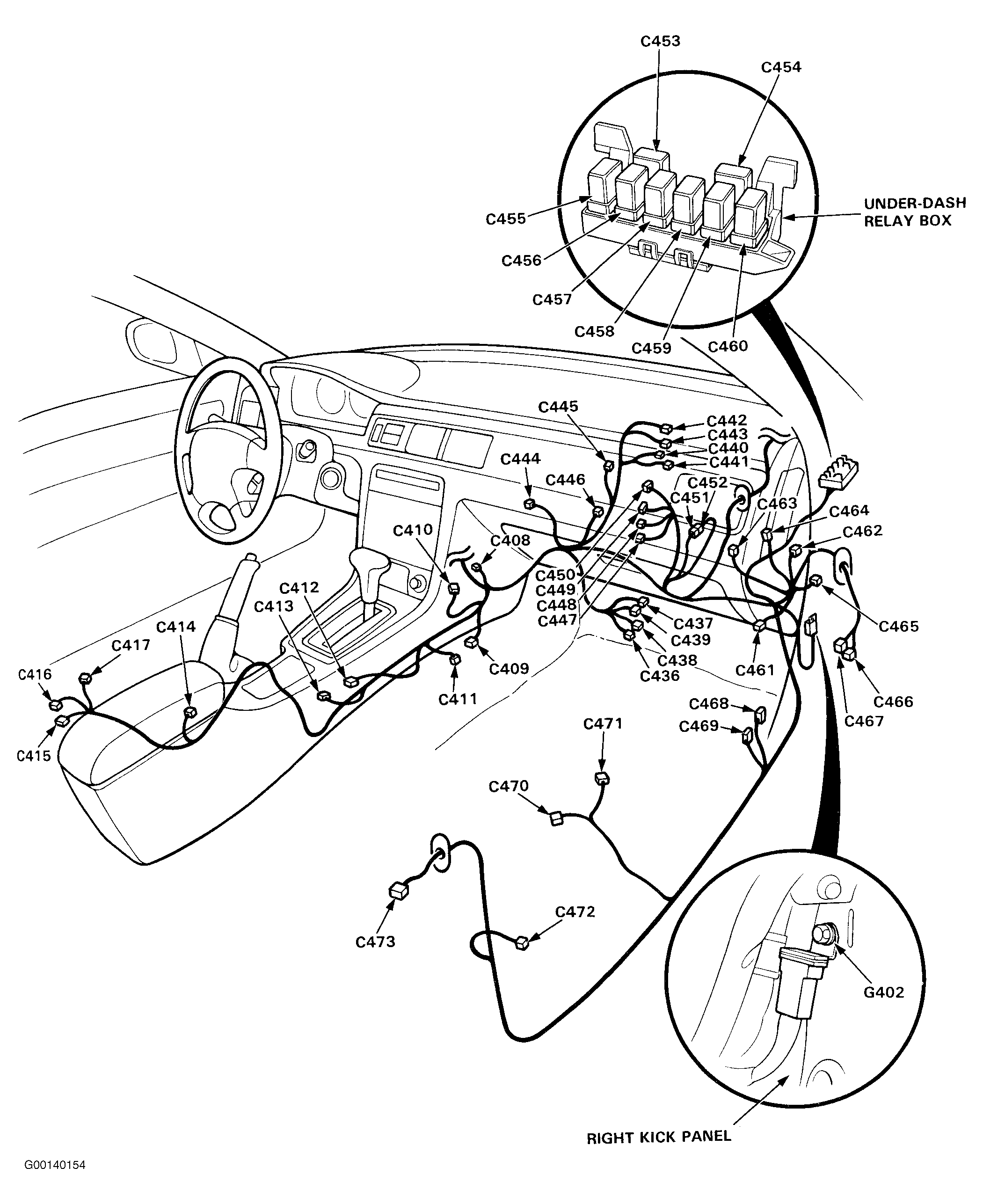

Fig 1: Locating Right Side Under-Dash Components & G402

Courtesy of AMERICAN HONDA MOTOR CO., INC.

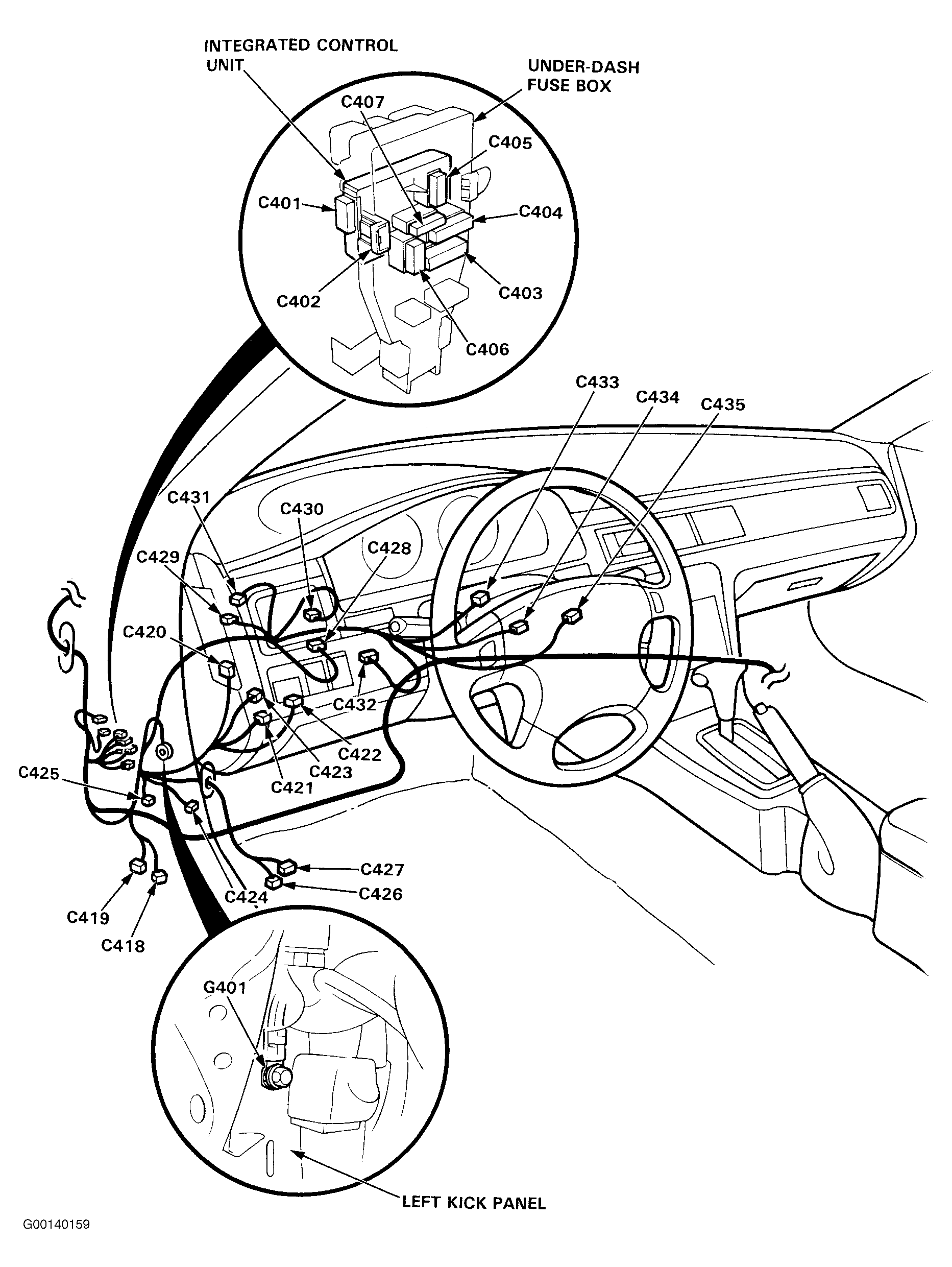

Fig 2: Locating Left Side Under-Dash Components& G401

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Locating Under-Dash Fuse Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.
