Wiper System
Wiper System
See
Figure
for connector terminal identification.

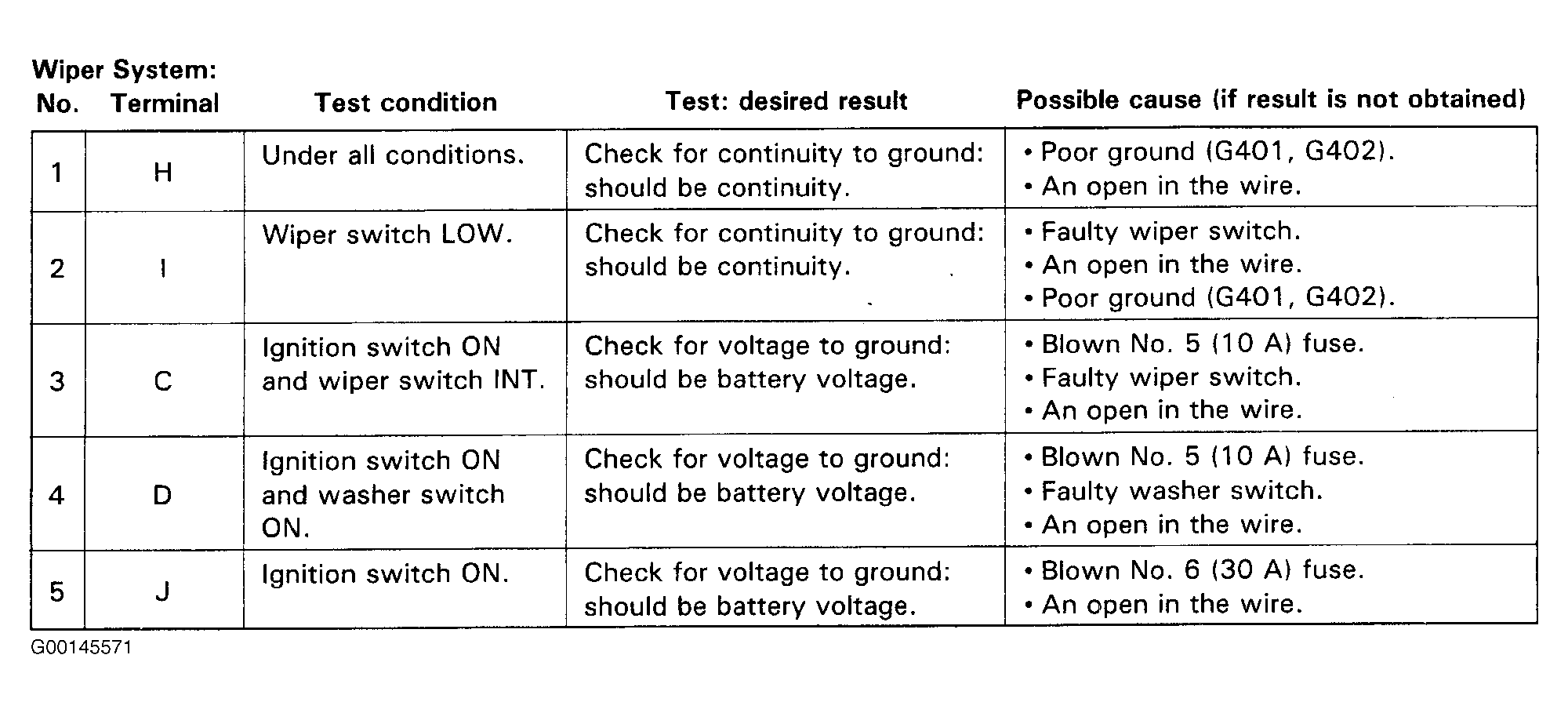

Fig 1: Wiper System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
