Rear Window Defogger Timer Circuit

See Figure for connector terminal identification.

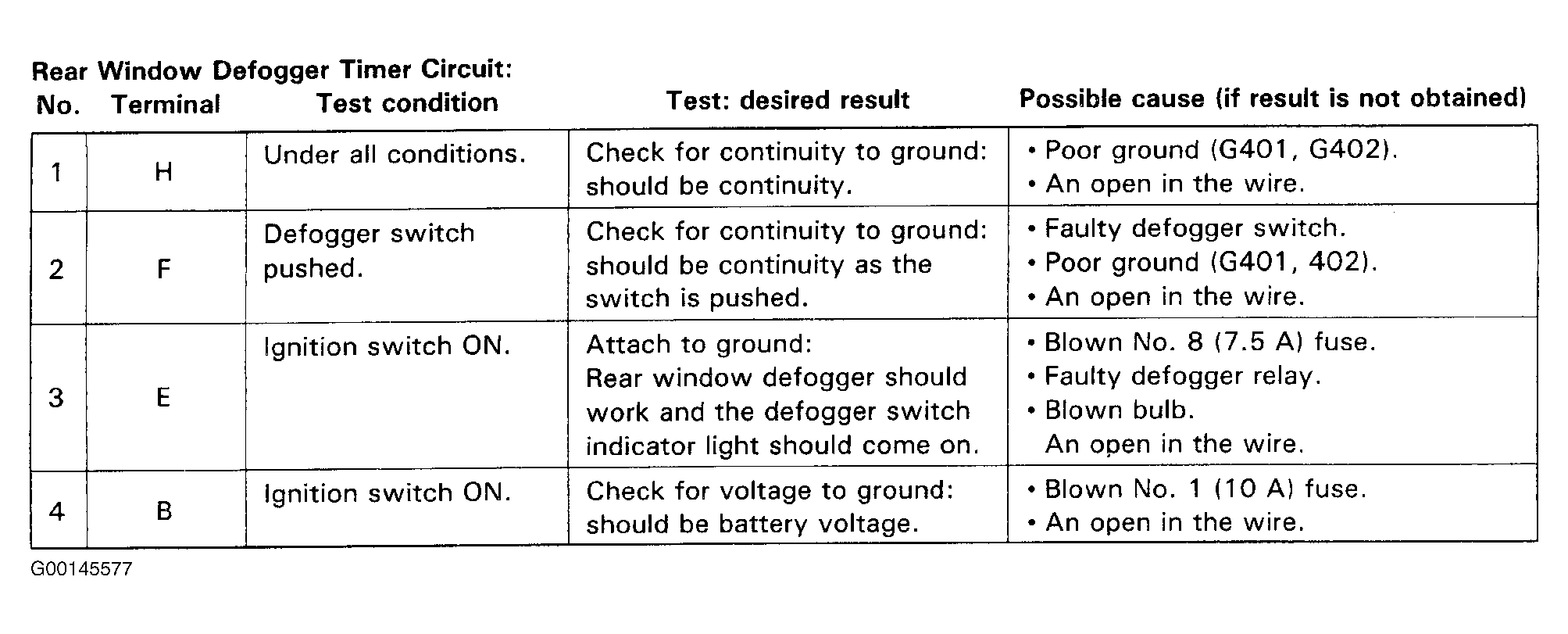

Fig 1: Rear Window Defogger Timer Circuit Input Test
G00145577Courtesy of AMERICAN HONDA MOTOR CO., INC.
