Entry Light Timer System

See Figure for connector terminal identification.

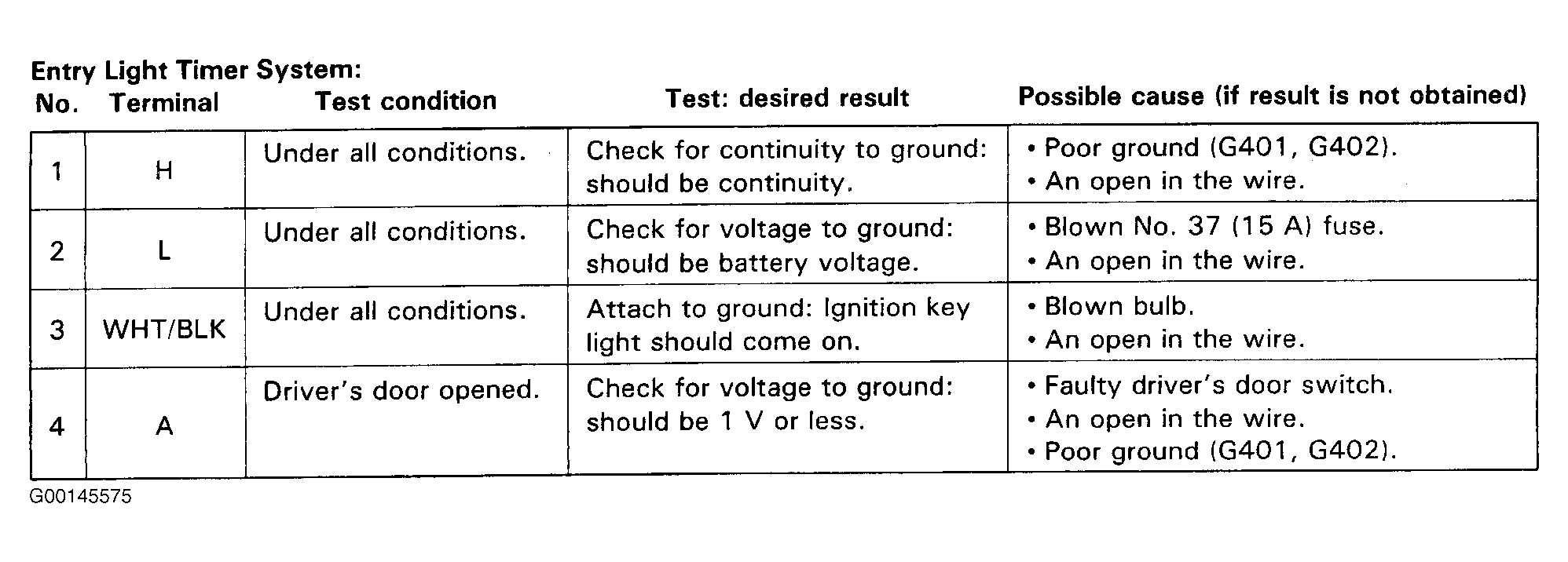

Fig 1: Entry Light Timer System Input Test
G00145575Courtesy of AMERICAN HONDA MOTOR CO., INC.
