DTC 13: Pa Sensor

If self-diagnosis Check Engine light indicates code 13, a problem may exist in the Atmospheric Pressure (PA) Sensor. See Fig 1 . The PA sensor is built into the ECU.

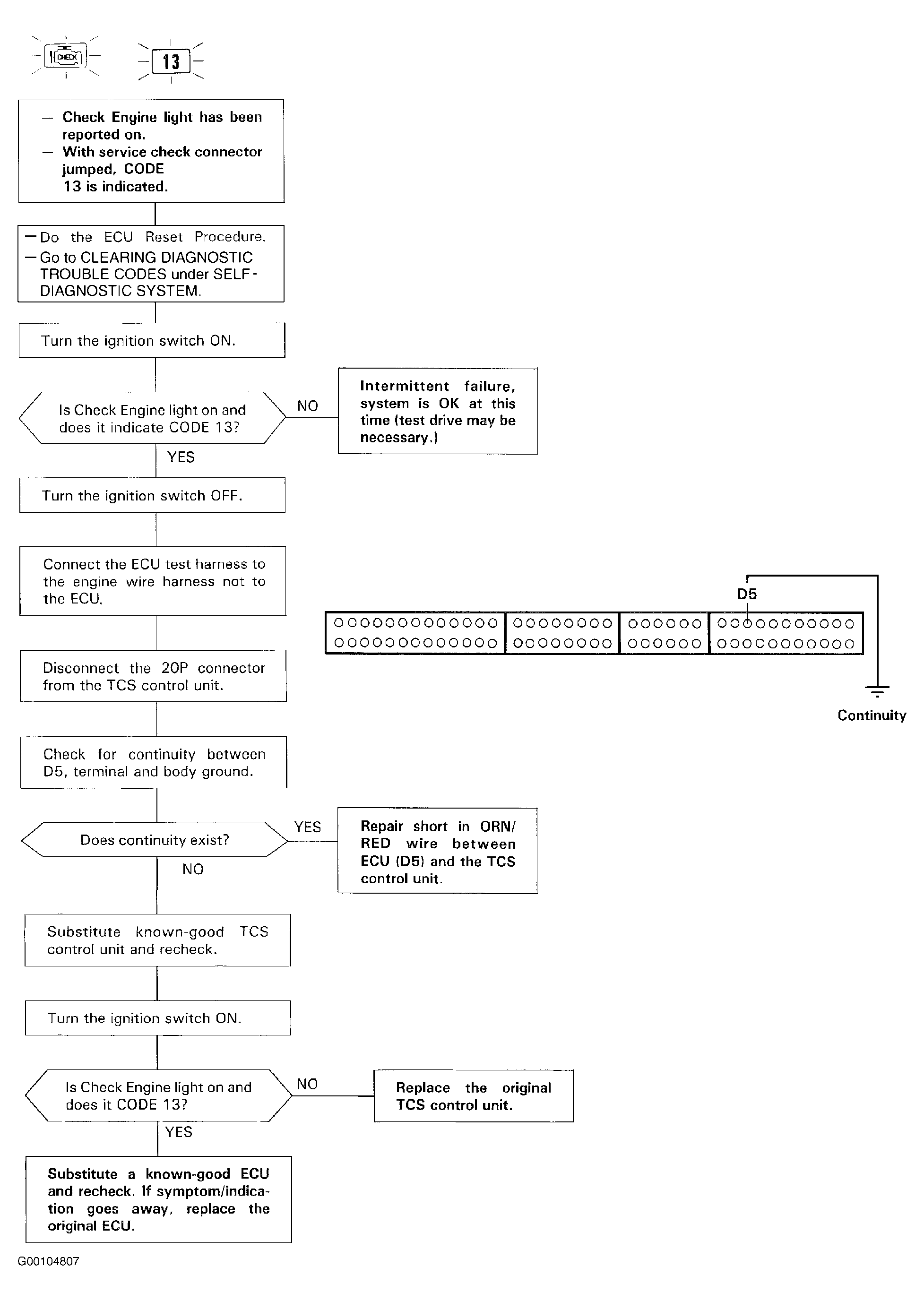

Fig 1: Atmospheric Pressure (PA) Sensor Circuit Diagnostic Flowchart
G00104807Courtesy of AMERICAN HONDA MOTOR CO., INC.
