Cooling Fan Control Unit
Cooling Fan Control Unit
Manufacturer does not supply information on component testing for cooling control unit. See
Fig 1
.

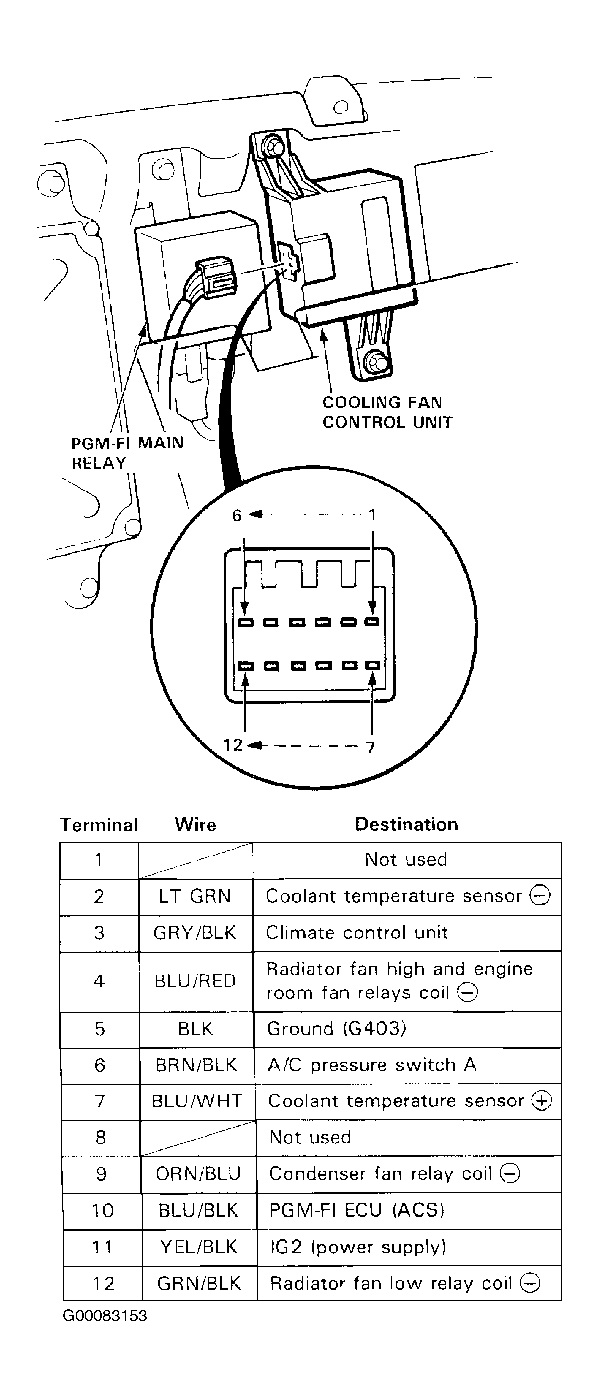

Fig 1: Cooling Fan Control Unit Pin Voltage
