Retractor Cut/Tail Light Relay

  1. Remove retractor cut relay from sub-relay box "A".
  2. There should be continuity between the "C" and "D" terminals. See Fig 1 .
  3. There should be continuity between the "A" and "B" terminals when the battery is connected to the "C" and "D" terminals. There should be no continuity when the battery is not connected.

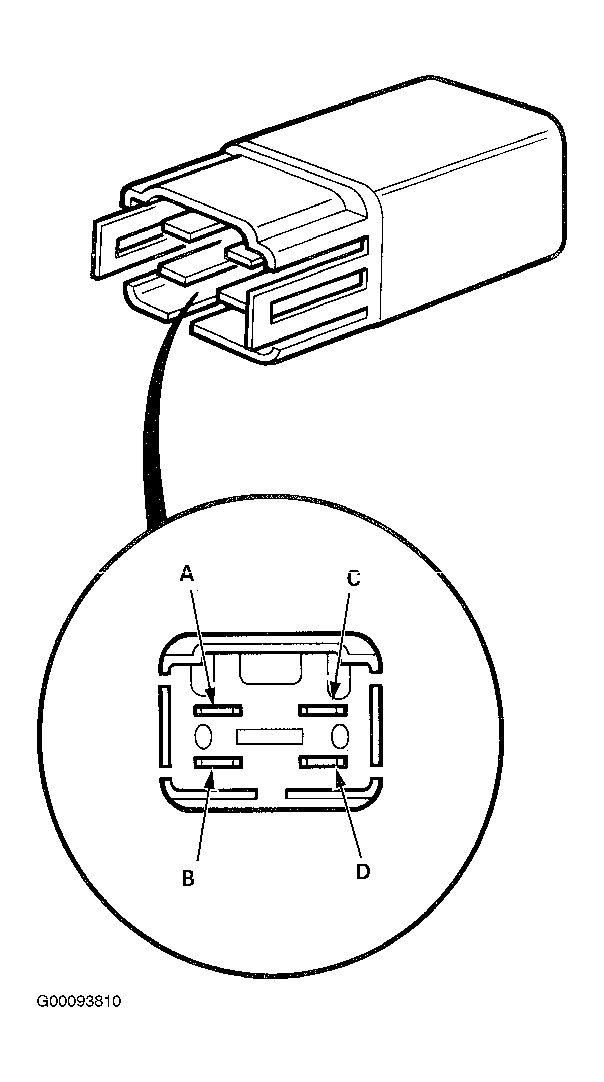

Fig 1: Identifying Retractor Cut/Tail Light Relay Terminals
G00093810Courtesy of AMERICAN HONDA MOTOR CO., INC.
