Shift Lock Solenoid

  1. Remove center console. Disconnect connector from main wiring harness and note terminal identification. See Fig 1 .
    CAUTION: Battery voltage must be applied to correct shift lock solenoid terminals or diode inside shift lock solenoid will be damaged.
  2. Momentarily connect battery positive terminal to terminal "A" and battery negative terminal to terminal "B". See Fig 1 . Note that shift lock solenoid operates with battery voltage applied. Replace shift lock solenoid if it does not operate.

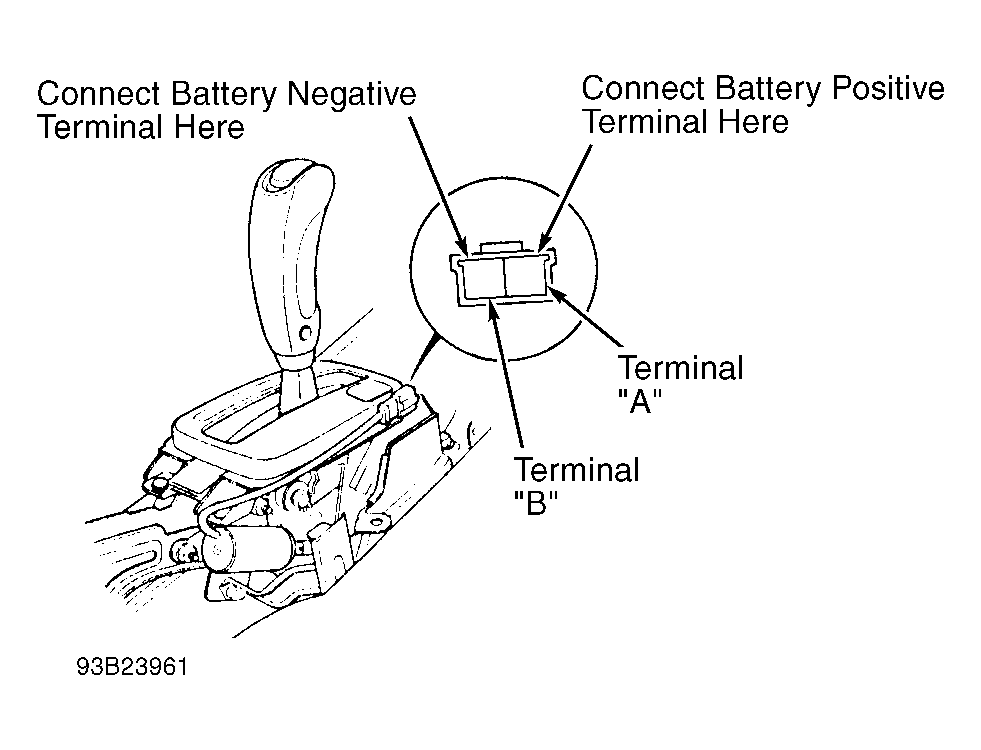

Fig 1: Identifying Shift Lock Solenoid Connector Terminals
G93B23961Courtesy of AMERICAN HONDA MOTOR CO., INC.
