Fault Code No. 6
Fault Code No. 6

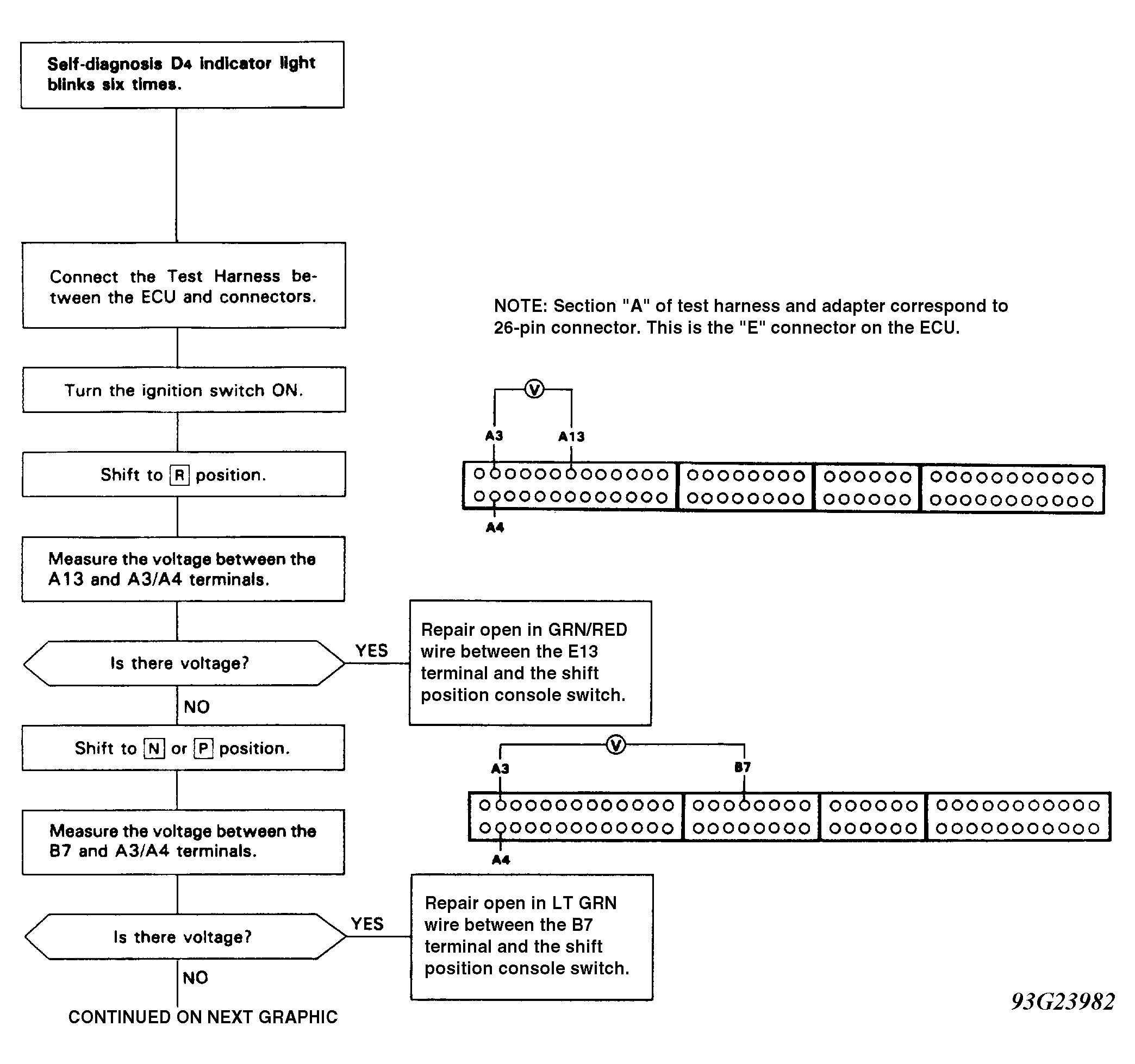

Fig 1: Flow Chart - Fault Code No. 6 (1 of 2)

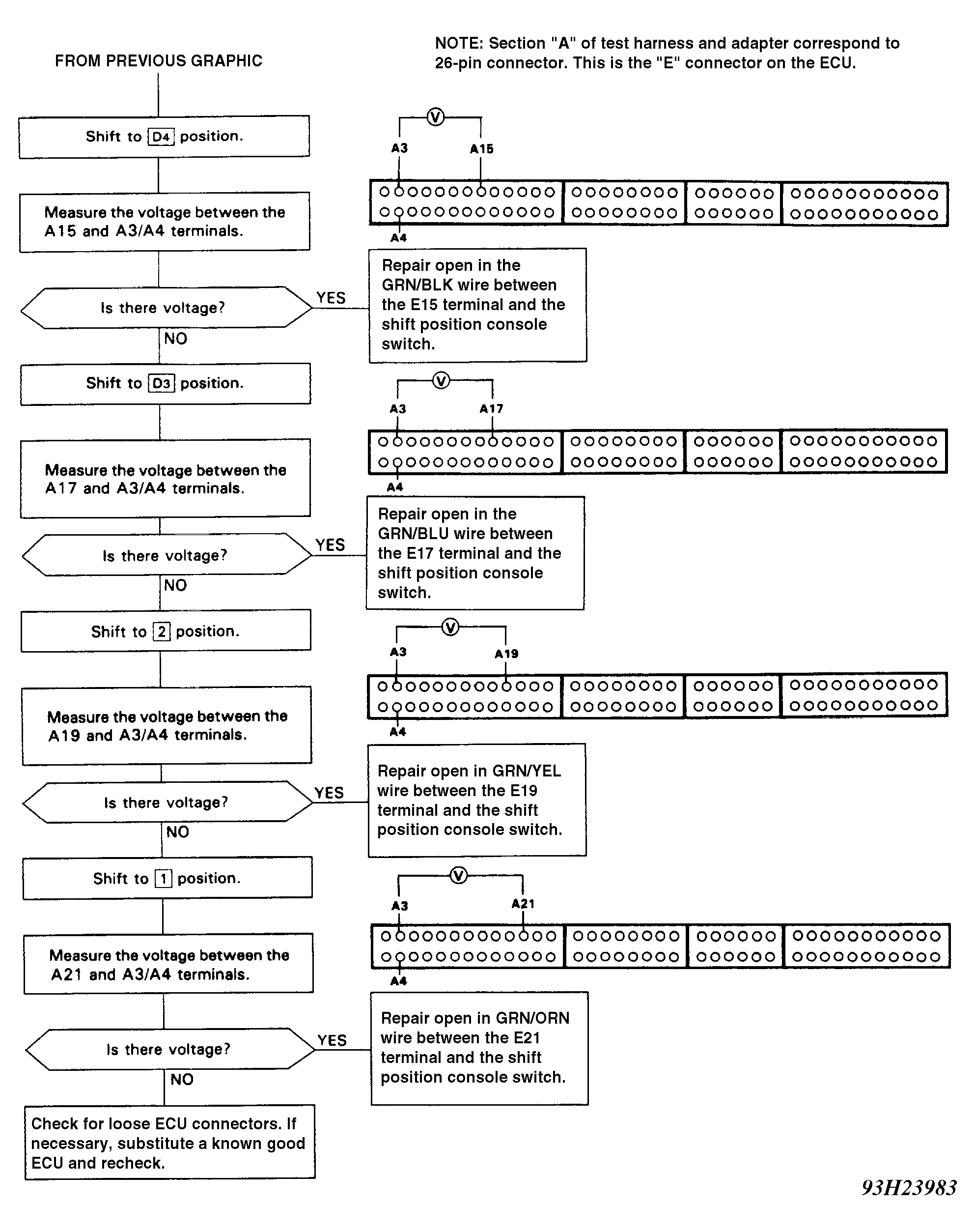

Fig 2: Flow Chart - Fault Code No. 6 (2 of 2)
