BRAKELIGHT Switch

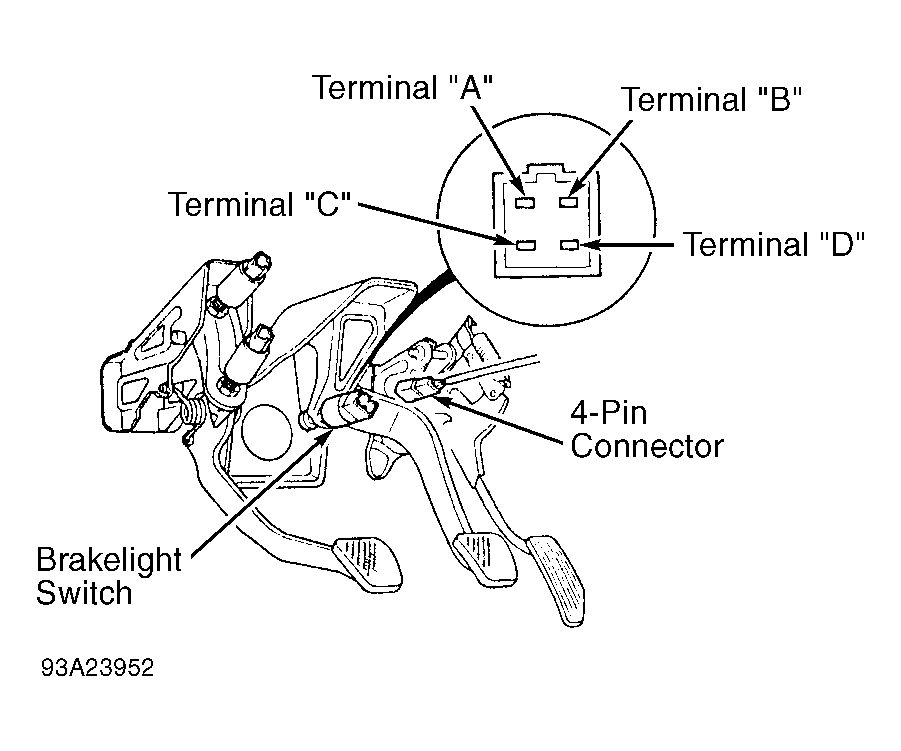

- Disconnect electrical connector from brakelight switch, located near brake pedal. Note brakelight switch terminal identification. See Fig 1
.
- Using ohmmeter, check for continuity between terminals "A" and "D" with brake pedal released. Replace brakelight switch if continuity does not exist.
- Check for continuity between terminals "B" and "C" with brake pedal depressed. Continuity should exist.
- If continuity does not exist, ensure brake pedal is properly adjusted so brakelight switch can obtain proper travel for switch operation. If proper brakelight switch travel exists, replace brakelight switch.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
