| Countershaft Lock Nut |
| Step 1 |
103 (140) |
| Step 2 |
Loosen Lock Nut |
| Step 3 |
103 (140) |
| Drain Plug |
29 (39) |
| Joint Bolt |
21 (29) |
| Mainshaft Lock Nut |
| Step 1 |
70 (95) |
| Step 2 |
Loosen Lock Nut |
| Step 3 |
70 (95) |
| Main Valve Body Bolt |
| 6-mm Bolt |
|
| 10-mm Bolt |
13 (18) |
| Parking Brake Stopper Bolt |
11 (15) |
| Pressure Tap Plug |
13 (18) |
| Reverse Shift Fork Bolt |
11 (15) |
| Ring Gear Bolt |
74 (100) |
| Shaft Retaining Bolt |
20 (27) |
| Stopper Bolt |
13 (18) |

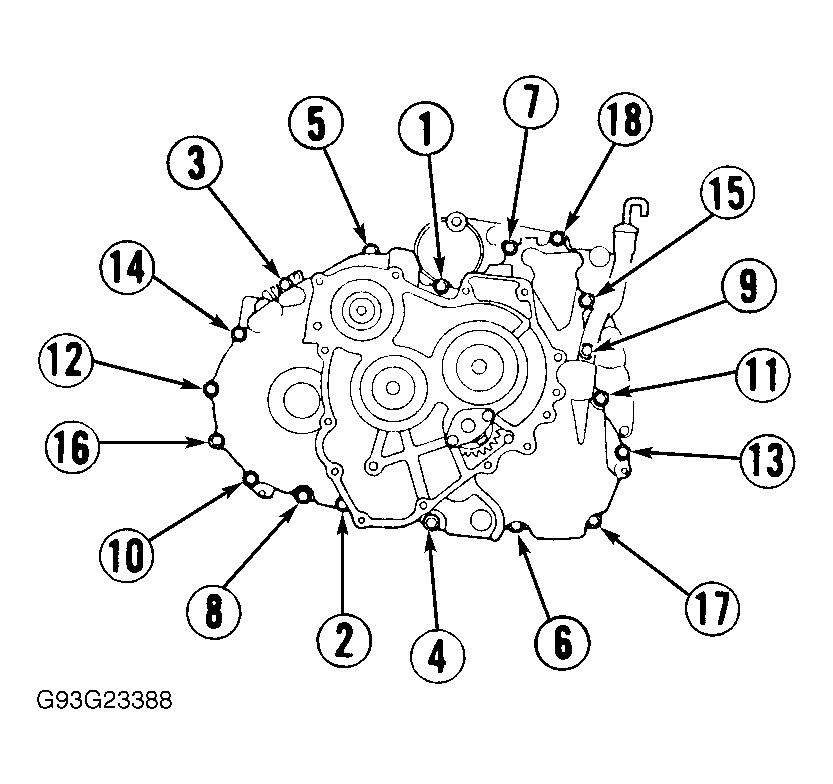

| Transaxle Housing Bolt |
40 (54) |
| INCH Lbs. (N.m) |
| Accumulator Cover Bolt |
106 (12) |
| Control Lever Bolt |
106 (12) |
| Lock Bolt |
106 (12) |
| Lock-Up Control Solenoid Valve Bolt |
106 (12) |
| Lock-Up Cover Bolt |
106 (12) |
| Regulator Valve Body Bolt |
106 (12) |
| Reverse Idler Gear Shaft Holder Bolt |
106 (12) |
| Right Side Cover Bolt |
106 (12) |
| Shift Control Solenoid Valve Bolt |
106 (12) |
| Second Accumulator Body Bolt |
106 (12) |
| Servo Detent Base Bolt |
106 (12) |
| Servo Valve Body Bolt |
106 (12) |
| Speed Pulser Bolt |
106 (12) |
| Speed Sensor Bolt |
106 (12) |
| Vacuum Modulator Valve Bolt |
106 (12) |
| Valve Cover Bolt |
71 (8) |
