Rear Suspension: Description

Integra, Legend and Vigor use an independent control arm suspension system. Suspension consists of a vertically-mounted strut with coil spring connected to a knuckle/spindle assembly, upper control arm, one or 2 lower control arms, trailing arm (Integra and Vigor) and a stabilizer bar. See Fig 1 , Fig 2 and Fig 3 .

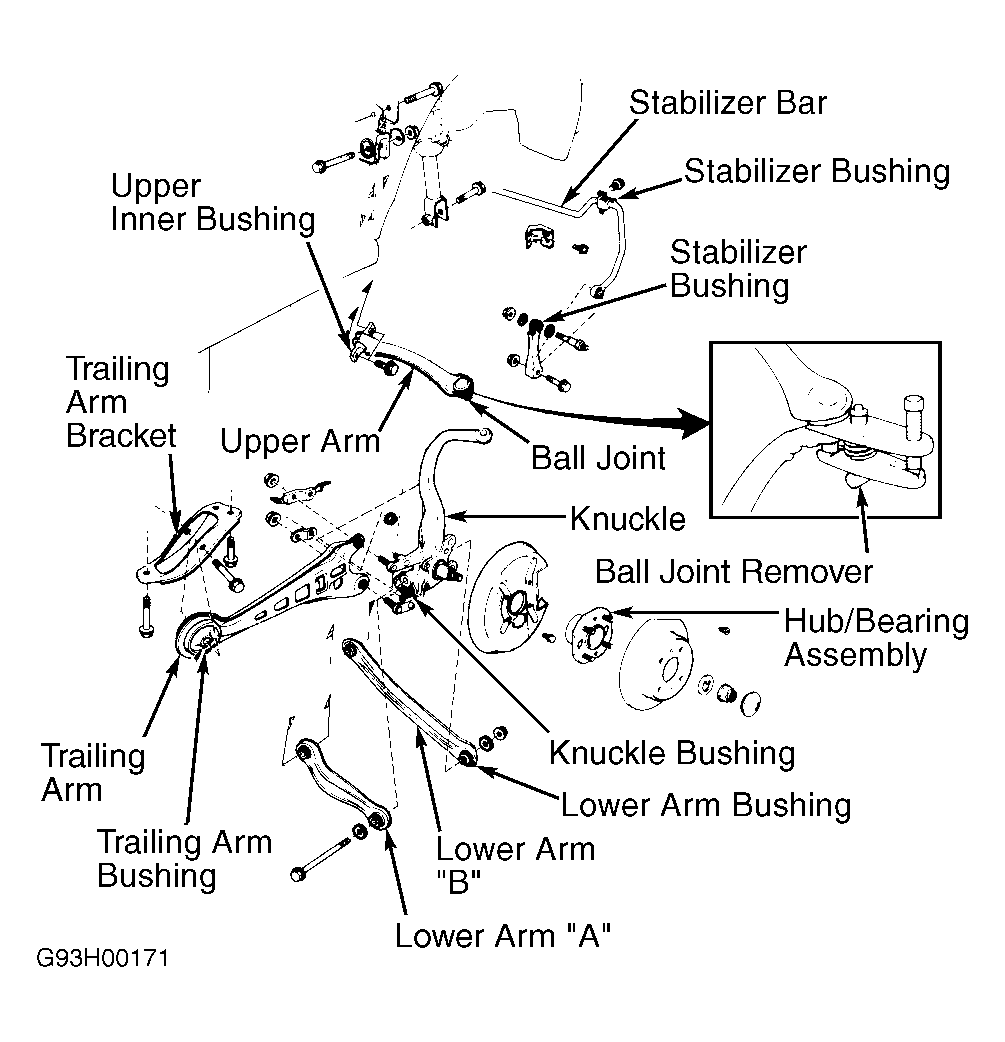

Fig 1: Exploded View Of Rear Suspension (Integra)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

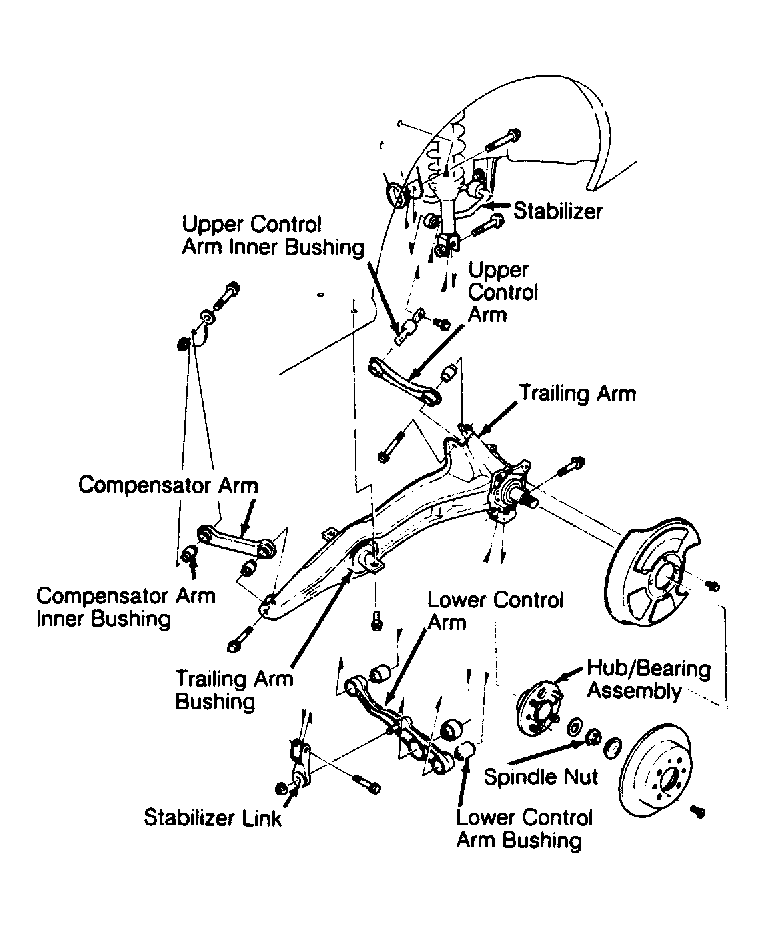

Fig 2: Exploded View Of Rear Suspension (Legend)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

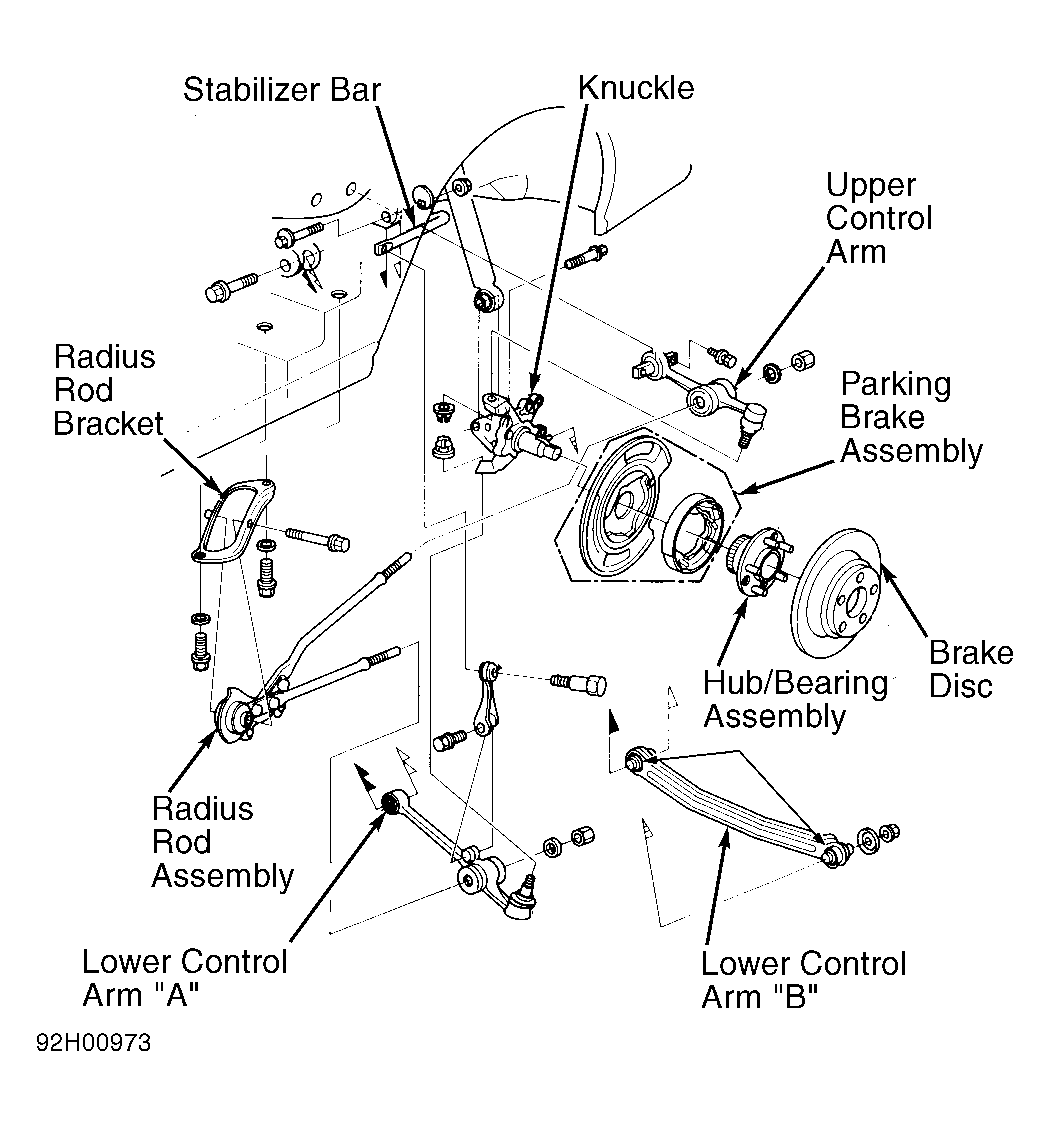

Fig 3: Exploded View Of Rear Suspension (Vigor)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
