Engine Skip? Check These Ignition Parts (ASN 1097-05)

Publication date: 1997-10-01
Reference number: ASN 1097-05

ENGINE SKIP? CHECK THESE IGNITION PARTS

TECHNICAL SERVICE BULLETIN

Reference Number(s): ASN 1097-05, Date of Issue: October, 1997

ENGINE SKIP? CHECK THESE IGNITION PARTS

Model(s): All Acura Models

Category: Acura Service News

Group: Engine

Bulletin No.: ASN 1097-05

Date: October, 1997

ENGINE SKIP

An intermittent engine skip at idle or during acceleration may be the result of carbon tracking on plugs, plug wires, the distributor cap, or the coil. On any vehicle, a "skip" can occur if voltage travels across a carbon track instead of between the electrode gap on the plug. (Remember, electricity always follows the path of least resistance.)

Here's where to look for carbon tracking.

SPARK PLUGS AND WIRES

Remove each plug boot, and look for small white flash marks on the wire and the boot, especially near the plug end. Then remove the spark plugs and look for carbon tracking on the porcelain insulators. See Fig 1 .

DISTRIBUTOR CAP AND COIL

Remove the cap, and look for tracking inside and out. Then inspect the coil for tracking. See Fig 2 .

NOTE: Whenever you find carbon tracking (or any other damage), replace the affected part(s).

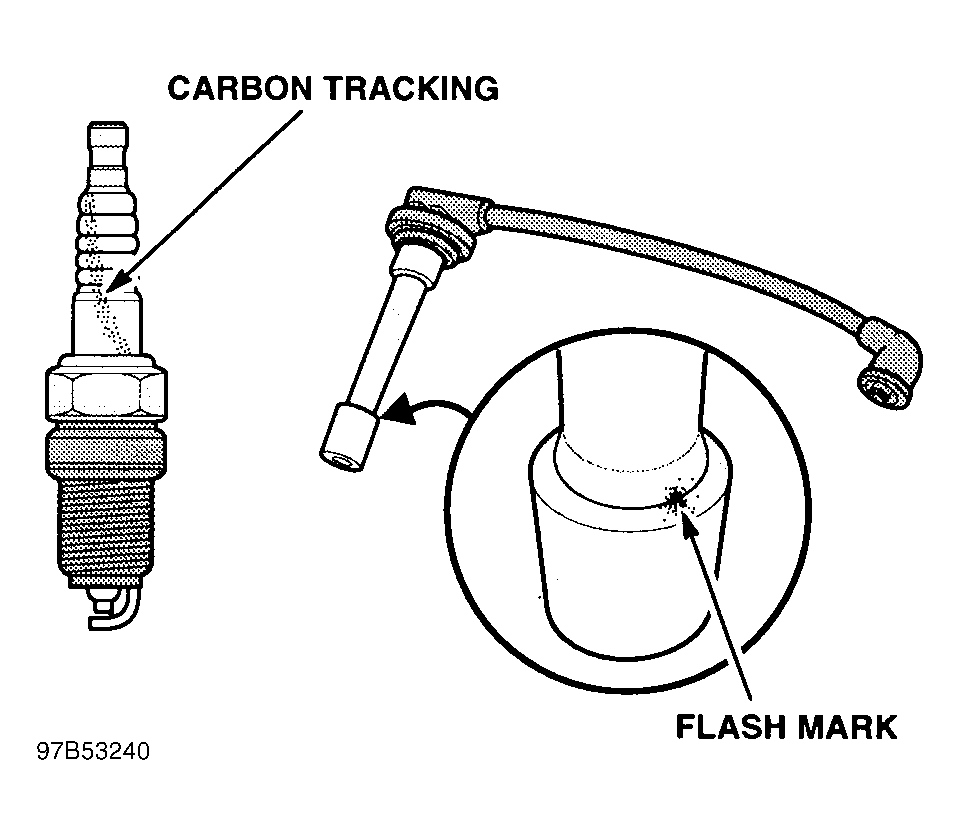

Fig 1: Spark Plugs & Wires - Carbon Tracking & Flash Mark

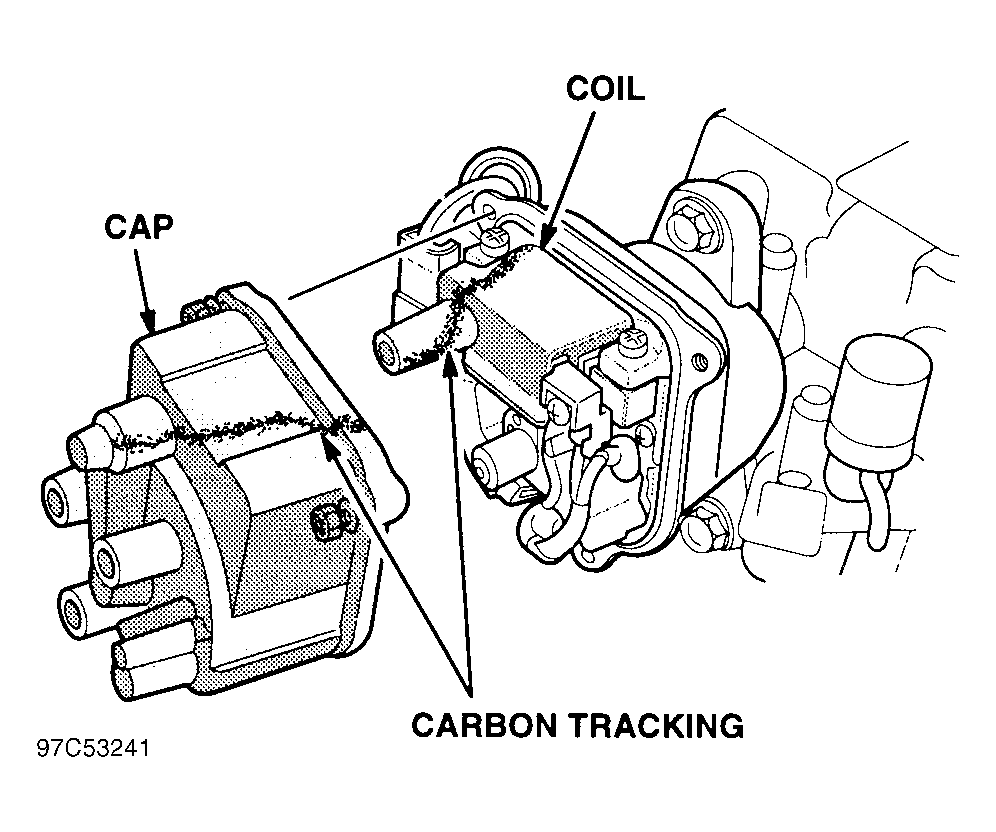

Fig 2: Distributor Cap & Coil - Cap, Coil & Carbon Tracking
