Under-Hood Main Fuse Panel Identification (1990-93 Models): Notes

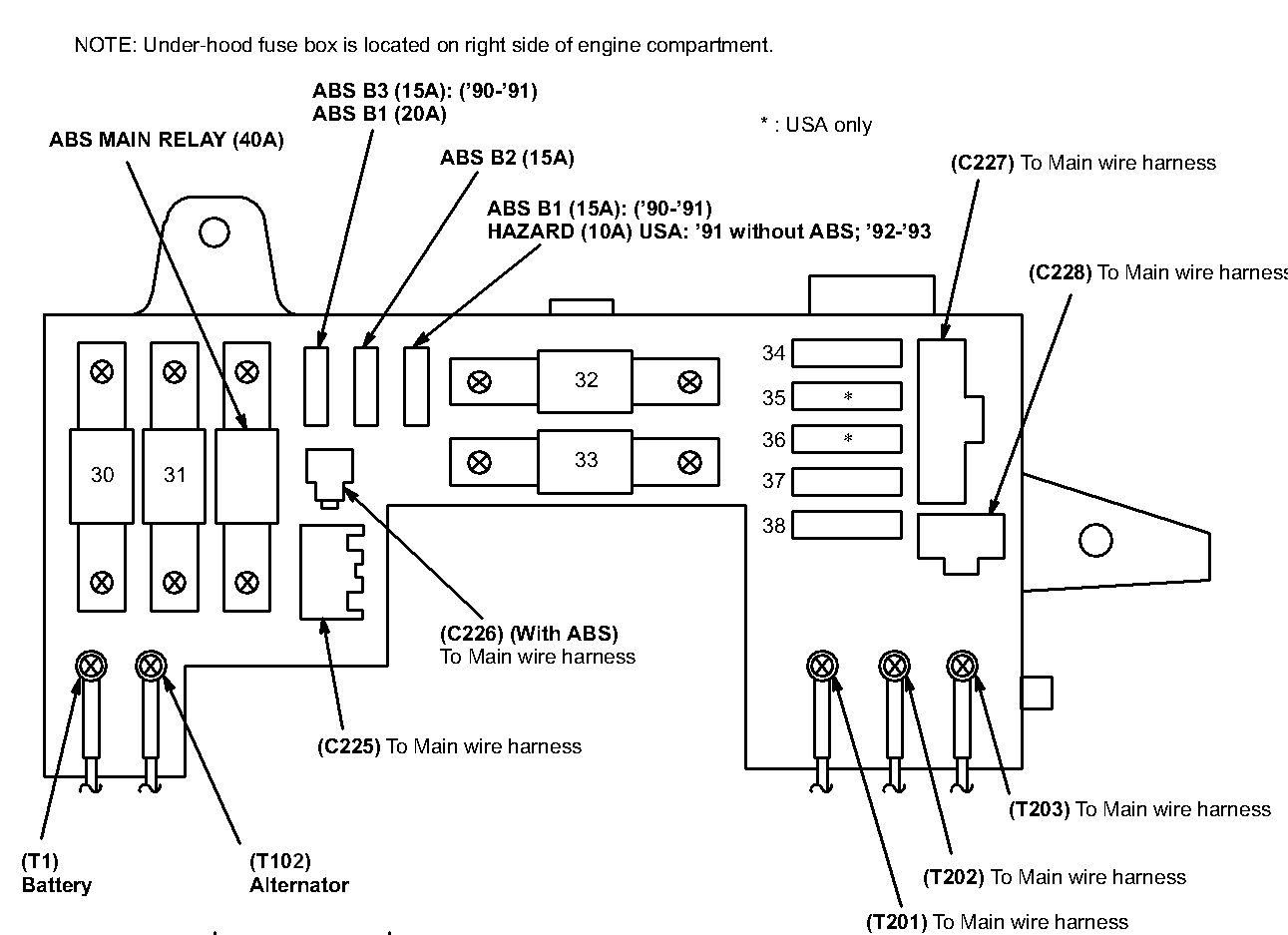

Fig 1: Underhood Main Fuse Panel Identification (1990-93 Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.
