Ignition Switch: Vigor

Remove lower instrument panel cover, left knee bolster and left kick panel. Unplug 7-pin connector from underdash fuse block. Using an ohmmeter, check switch continuity. See Fig 1 .

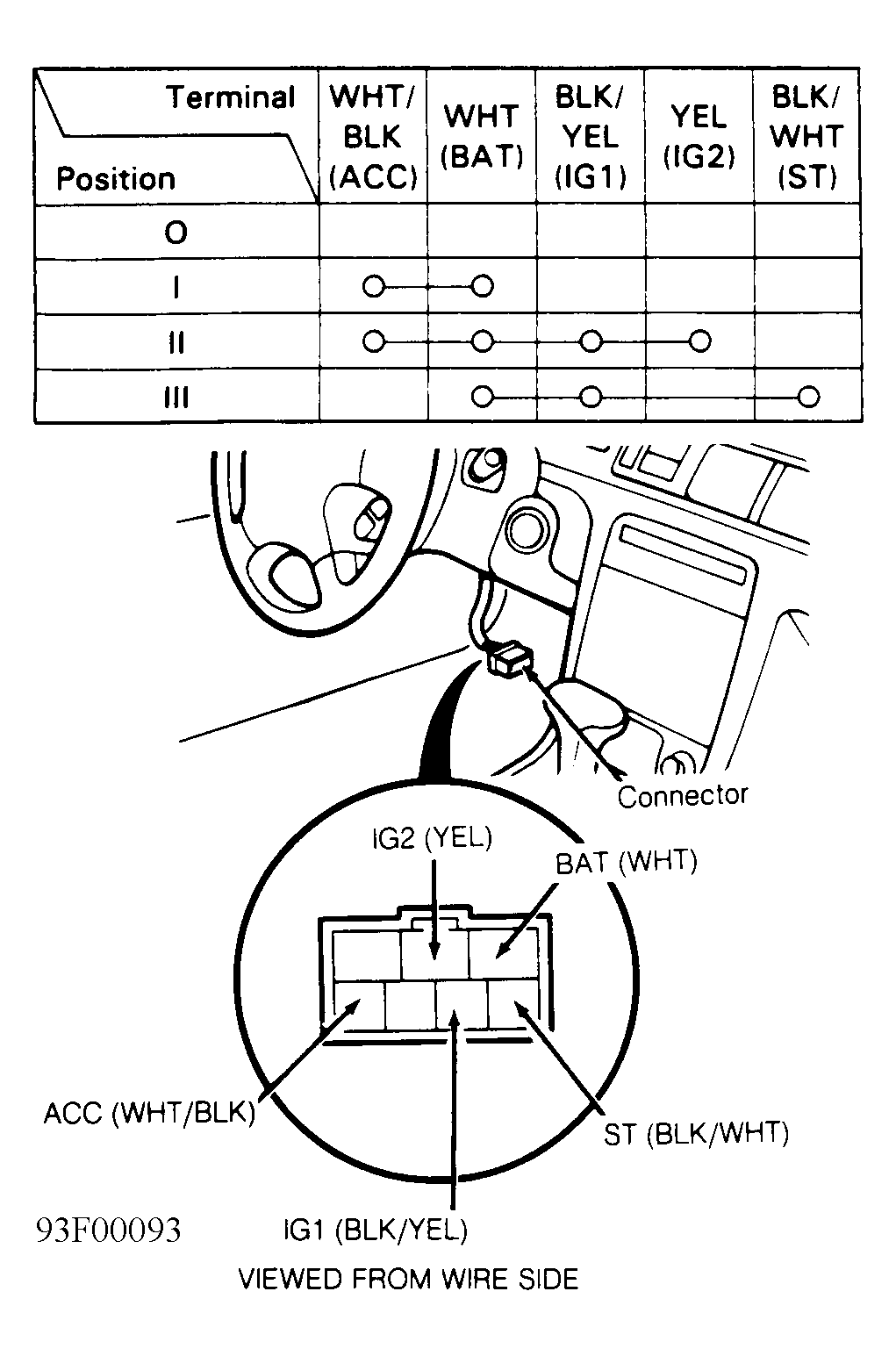

Fig 1: Testing Ignition Switch (Vigor)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
