DTC 47: Fuel Pump

If self-diagnosis Check Engine light indicates code 47, a problem may exist in the Fuel Pump circuit. See Fig 1 -Fig 3 .

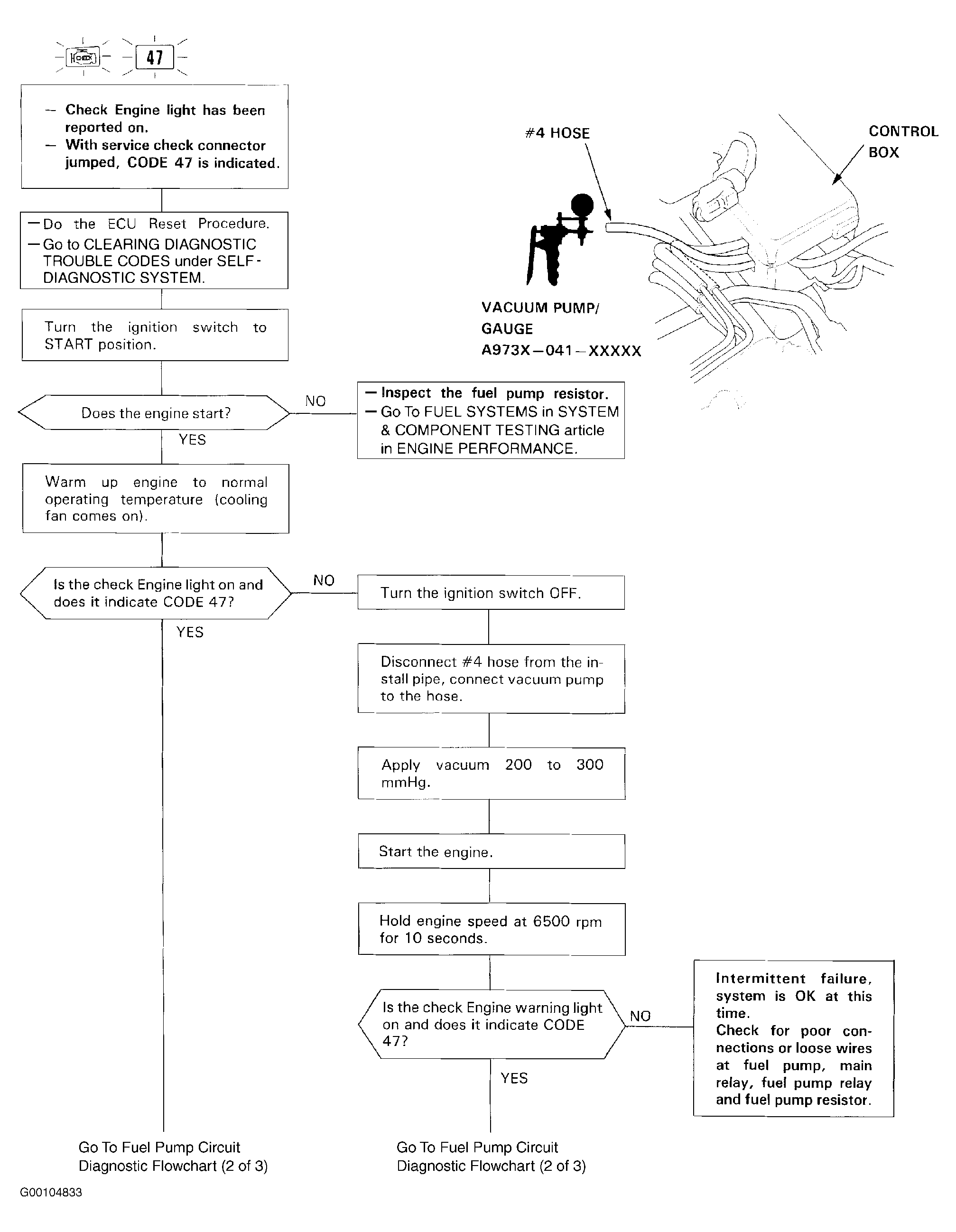

Fig 1: Fuel Pump Circuit Diagnostic Flowchart (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

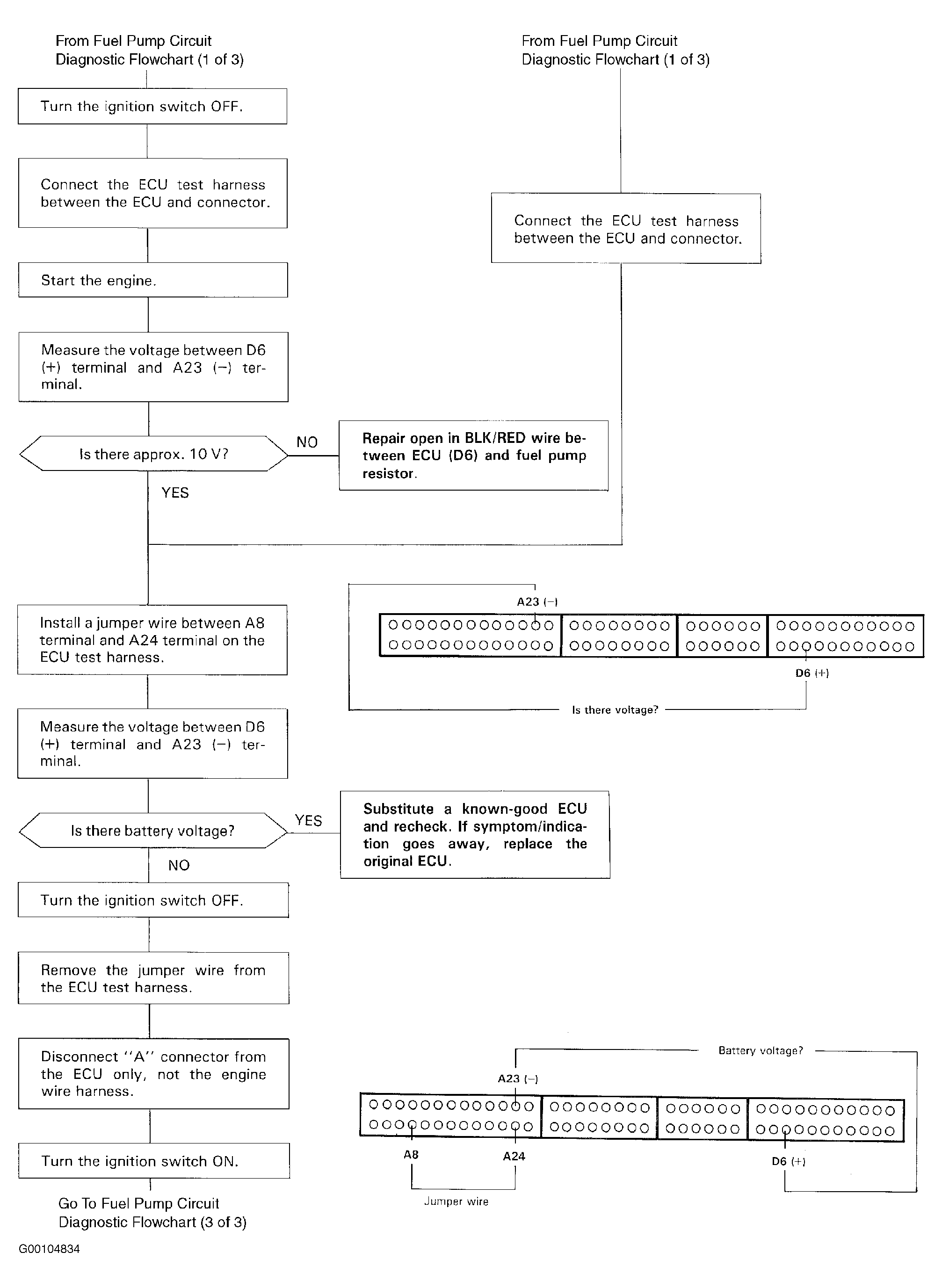

Fig 2: Fuel Pump Circuit Diagnostic Flowchart (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

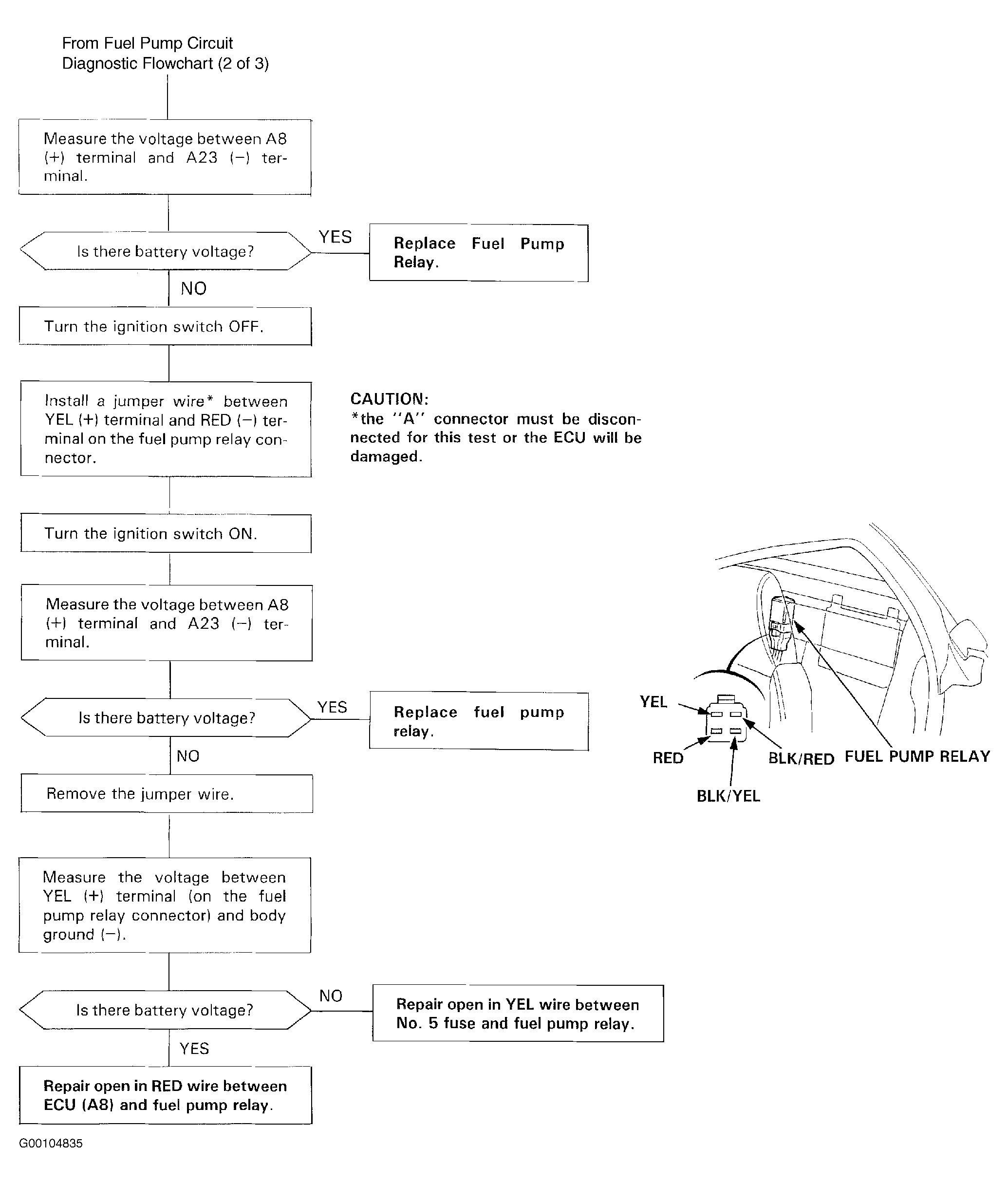

Fig 3: Fuel Pump Circuit Diagnostic Flowchart (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
