DTC 10: Ta Sensor

If self-diagnosis Check Engine light indicates code 10, a problem may in the Intake Air Temperature (TA) Sensor circuit. See Fig 1 and Fig 2 . The TA sensor is a temperature defendant resistor (thermistor). The resistance of the thermistor decreases as the intake air temperature increases as shown below.

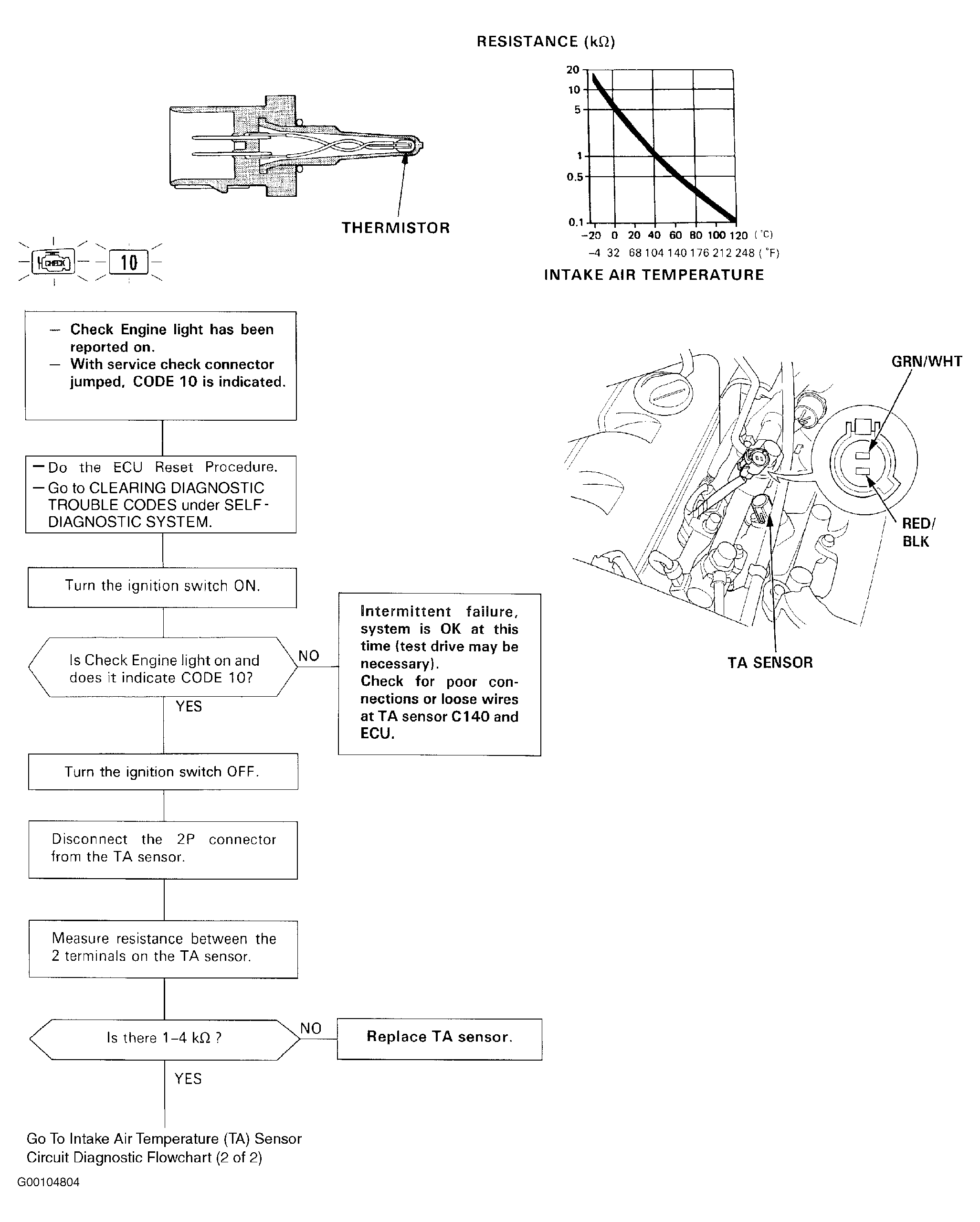

Fig 1: TA Sensor Circuit Diagnostic Flowchart (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

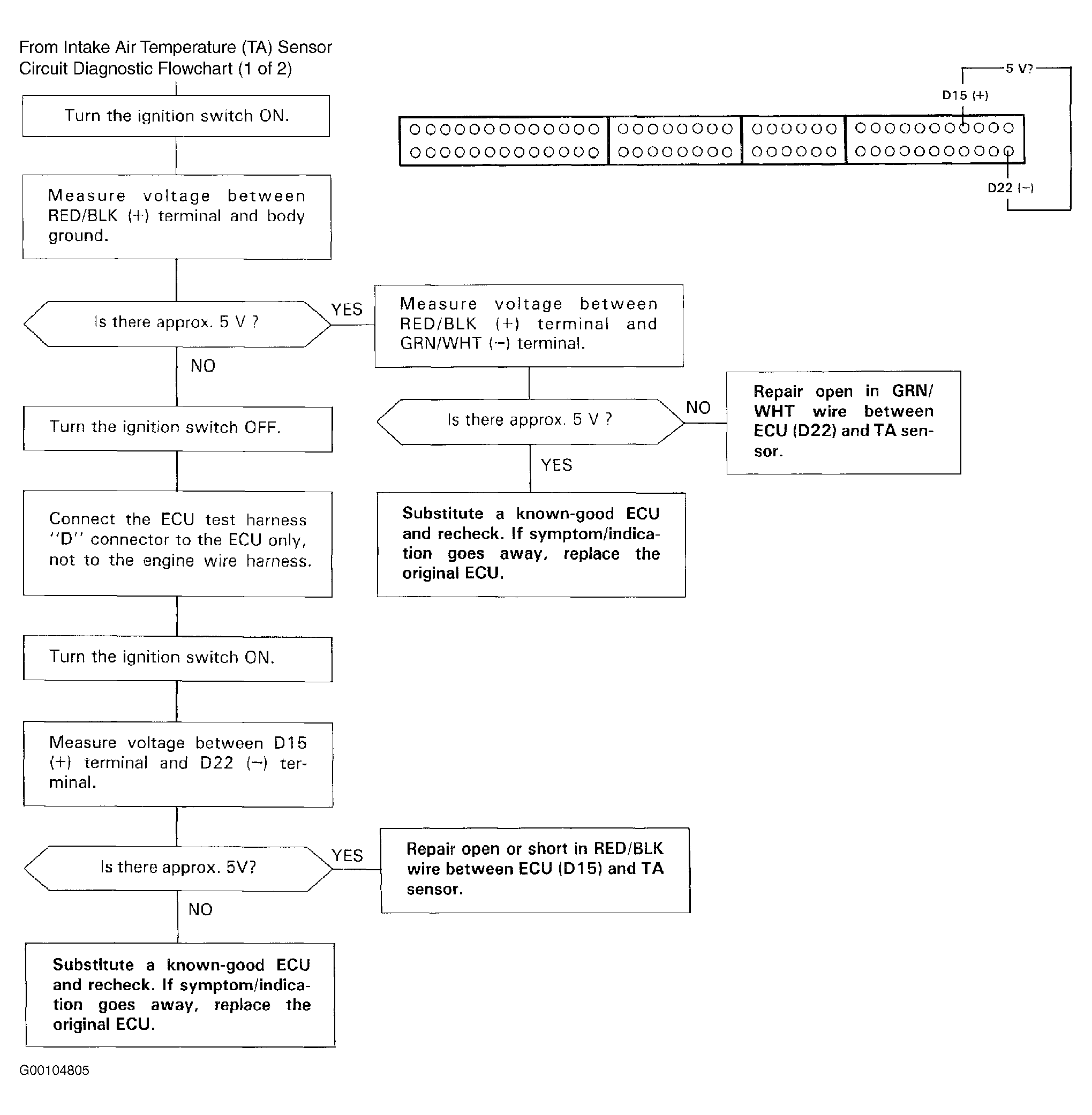

Fig 2: TA Sensor Circuit Diagnostic Flowchart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
