System Operation Check

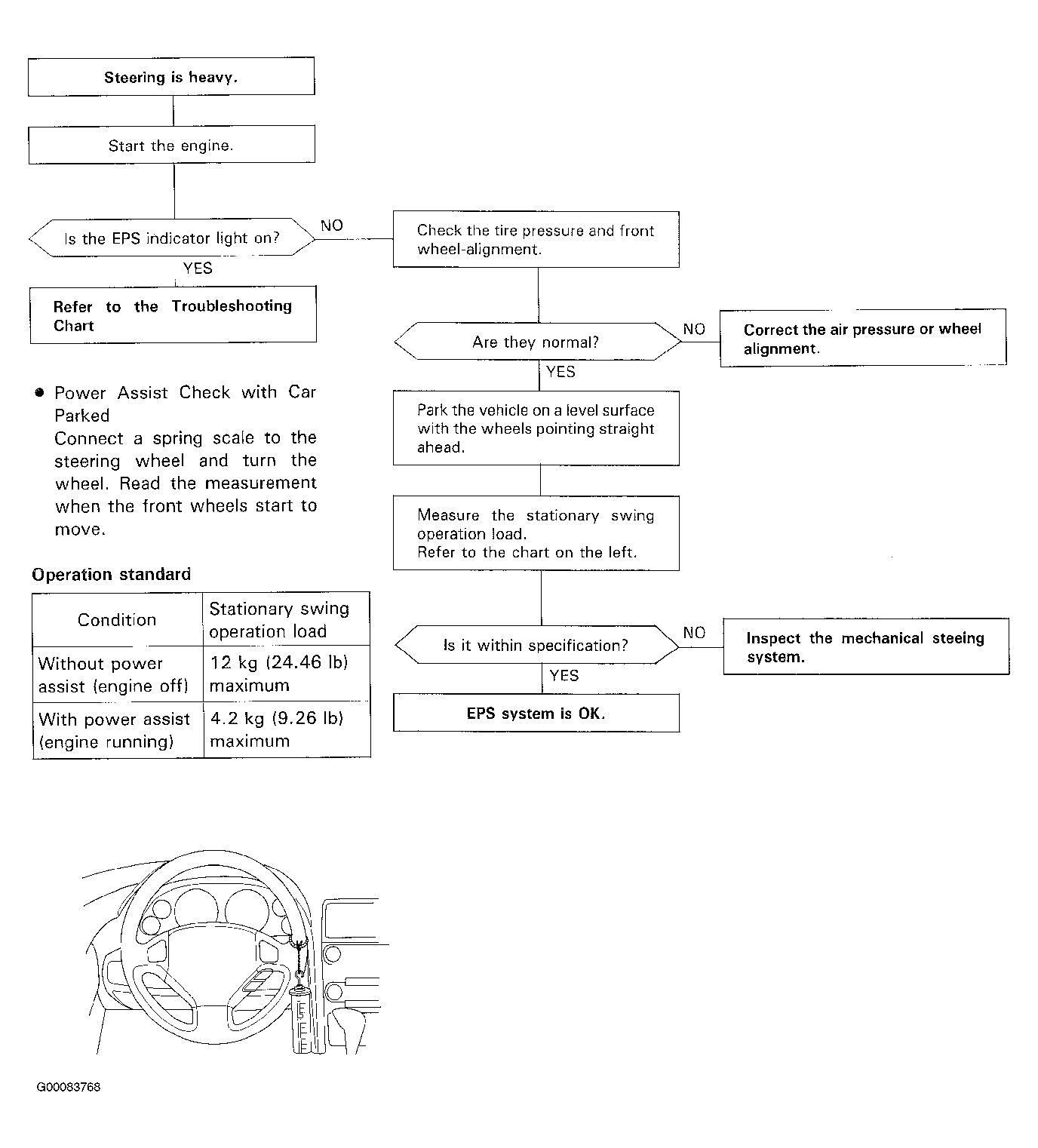

Fig 1: Troubleshooting Flowcharts - Steering Is Heavy
Courtesy of AMERICAN HONDA MOTOR CO., INC.

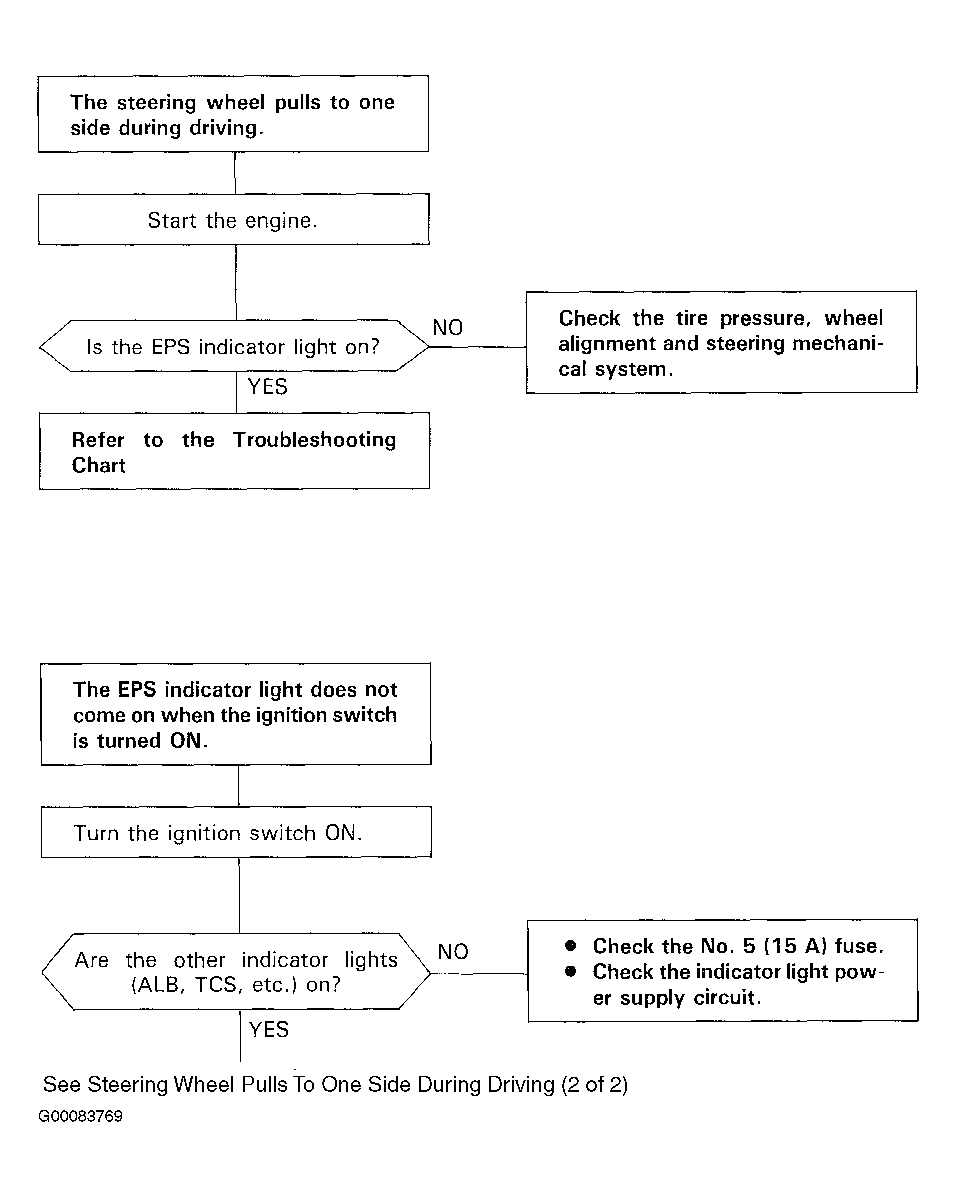

Fig 2: Troubleshooting Flowcharts - Steering Wheel Pulls To One Side During Driving (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

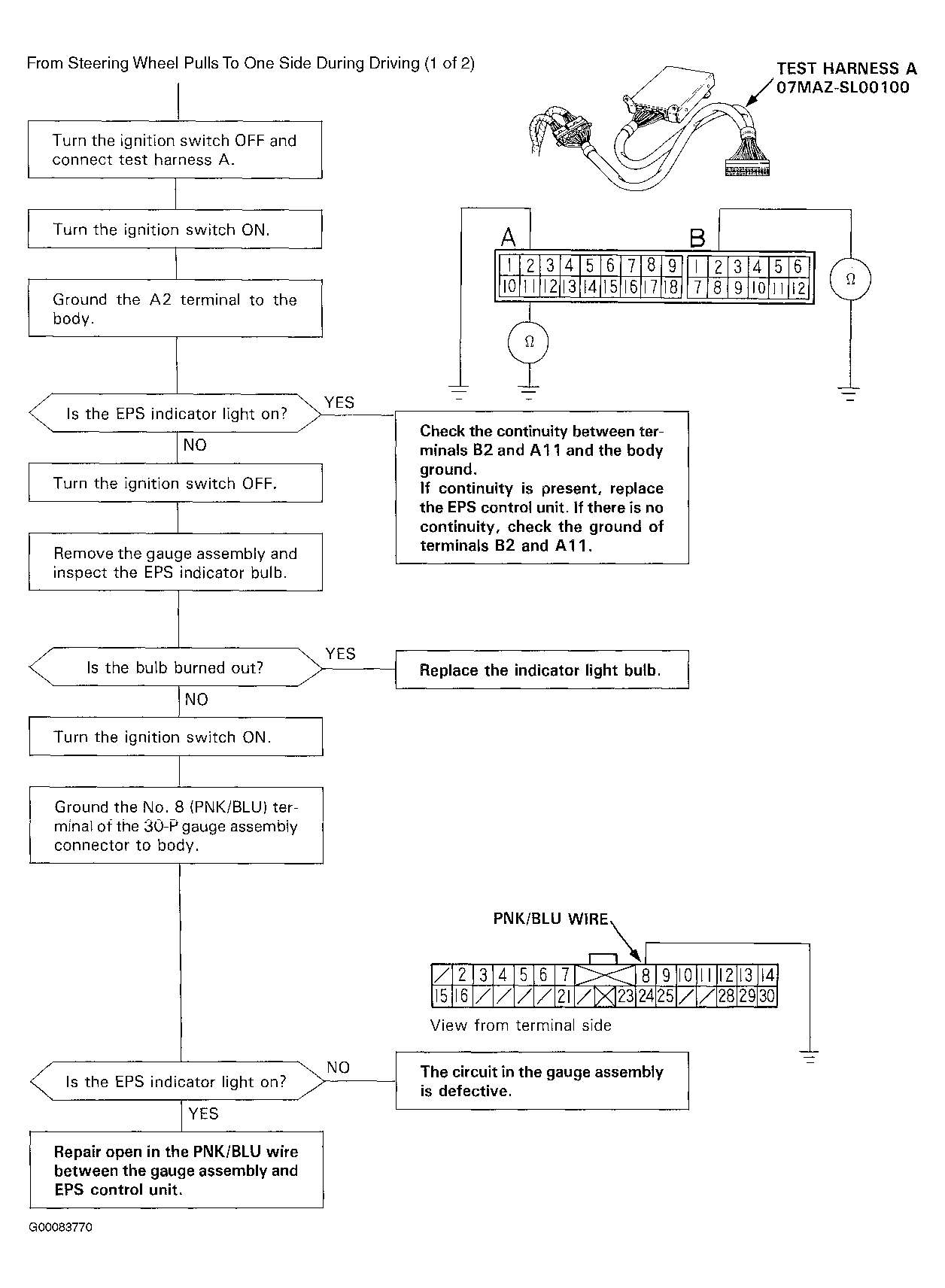

Fig 3: Troubleshooting Flowcharts - Steering Wheel Pulls To One Side During Driving (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

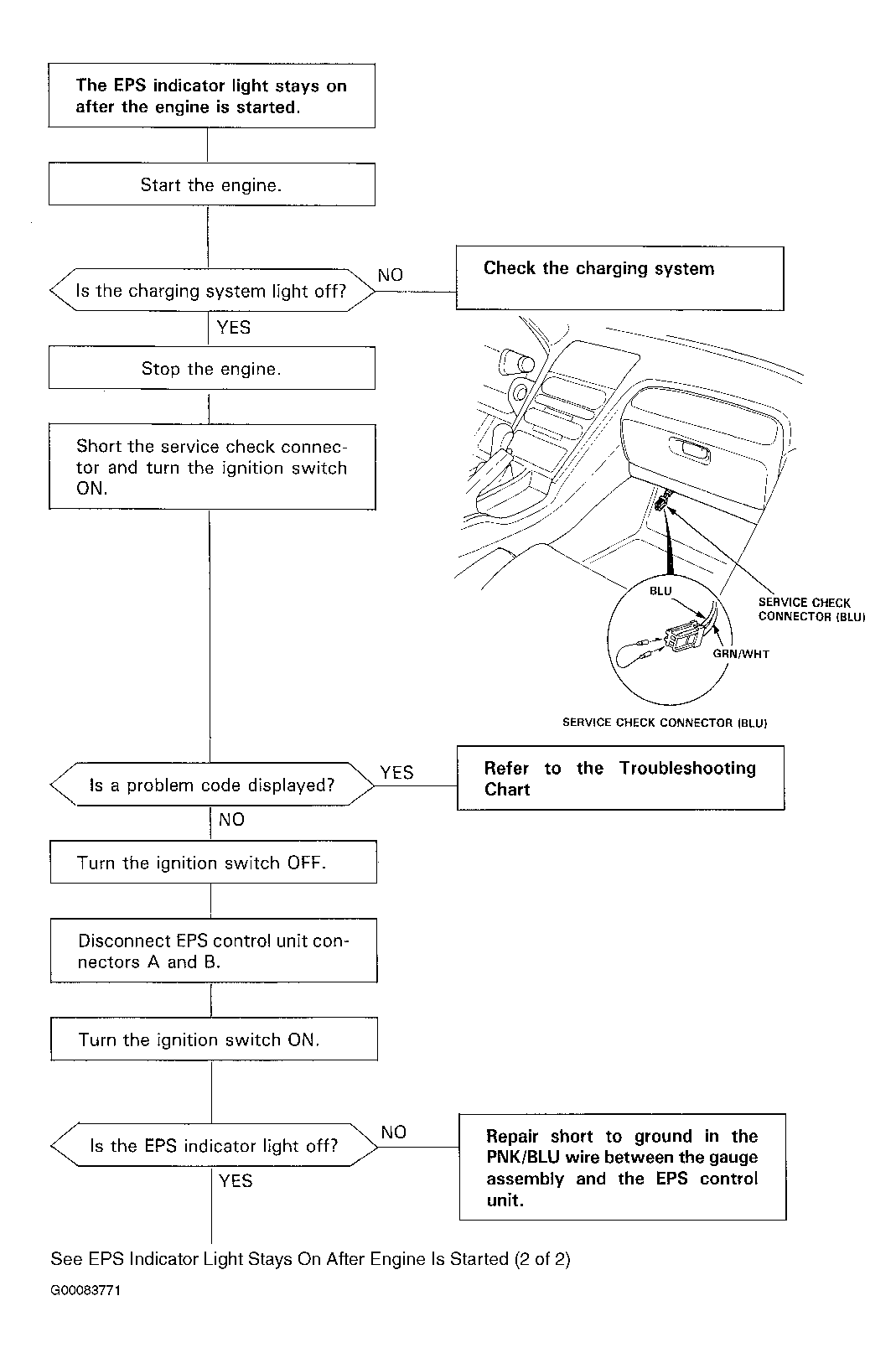

Fig 4: Troubleshooting Flowcharts - EPS Indicator Light Stays On After Engine Is Started (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

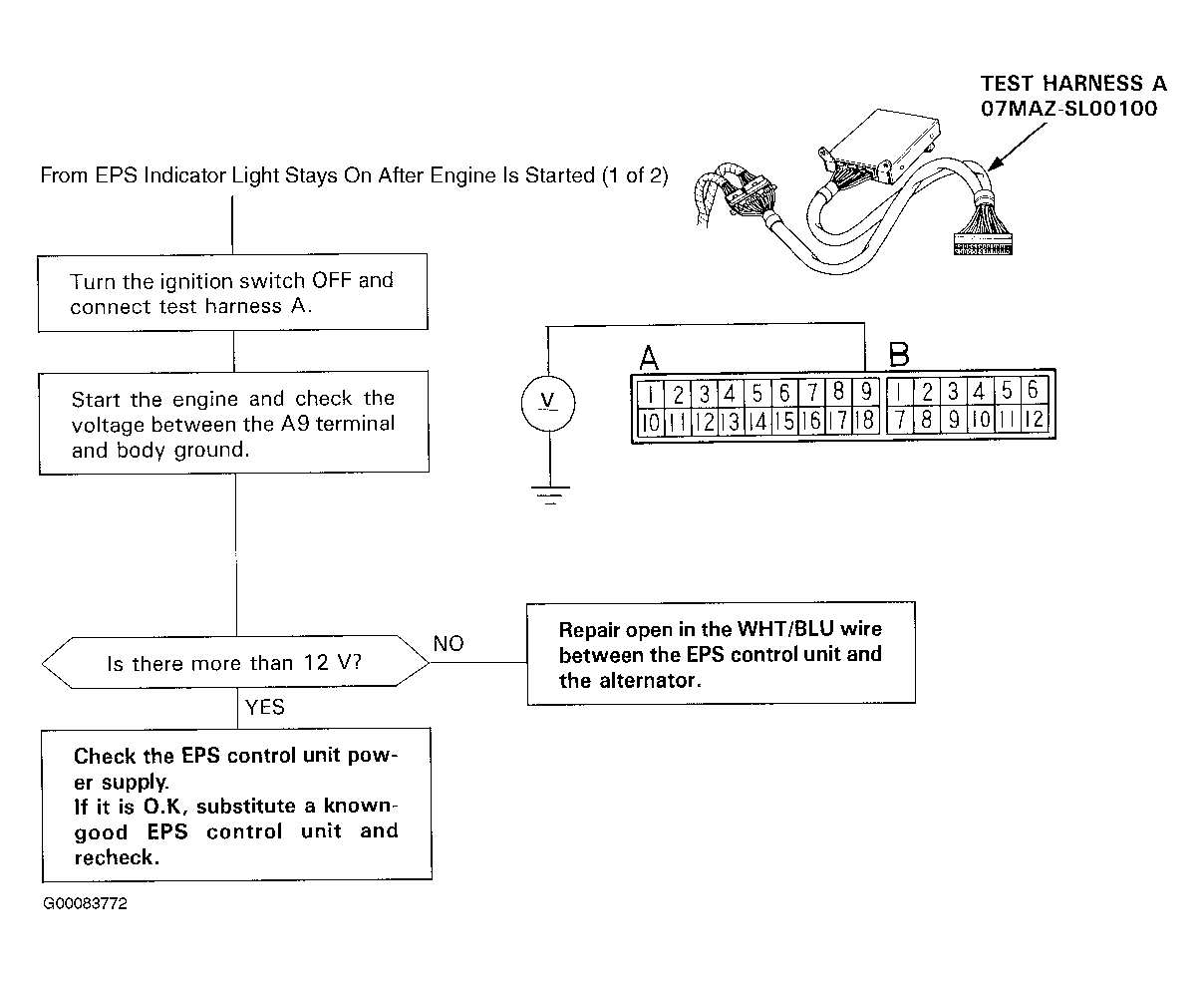

Fig 5: Troubleshooting Flowcharts - EPS Indicator Light Stays On After Engine Is Started (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
