Home >> Acura >> 1991 >> Legend Base, Standard >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Diagnosis - MPYA >> Diagnostic Flow Charts >> Fault Code No. 2

Fault Code No. 2

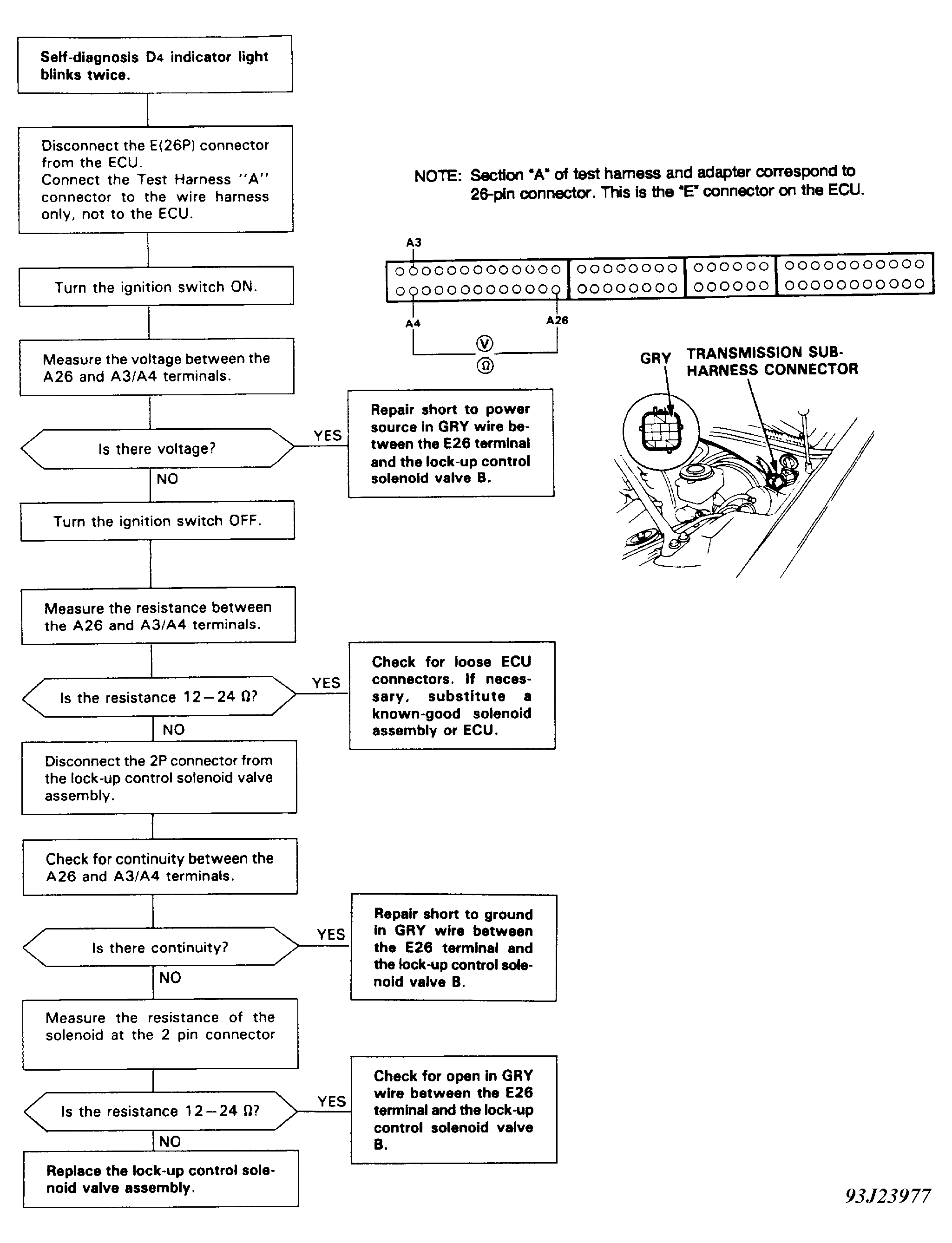

Fig 1: Flow Chart - Fault Code No. 2

G93J23977
