Home >> Acura >> 1991 >> Legend Base, Standard >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Diagnosis - MPYA >> Diagnostic Flow Charts >> Fault Code No. 1

Fault Code No. 1

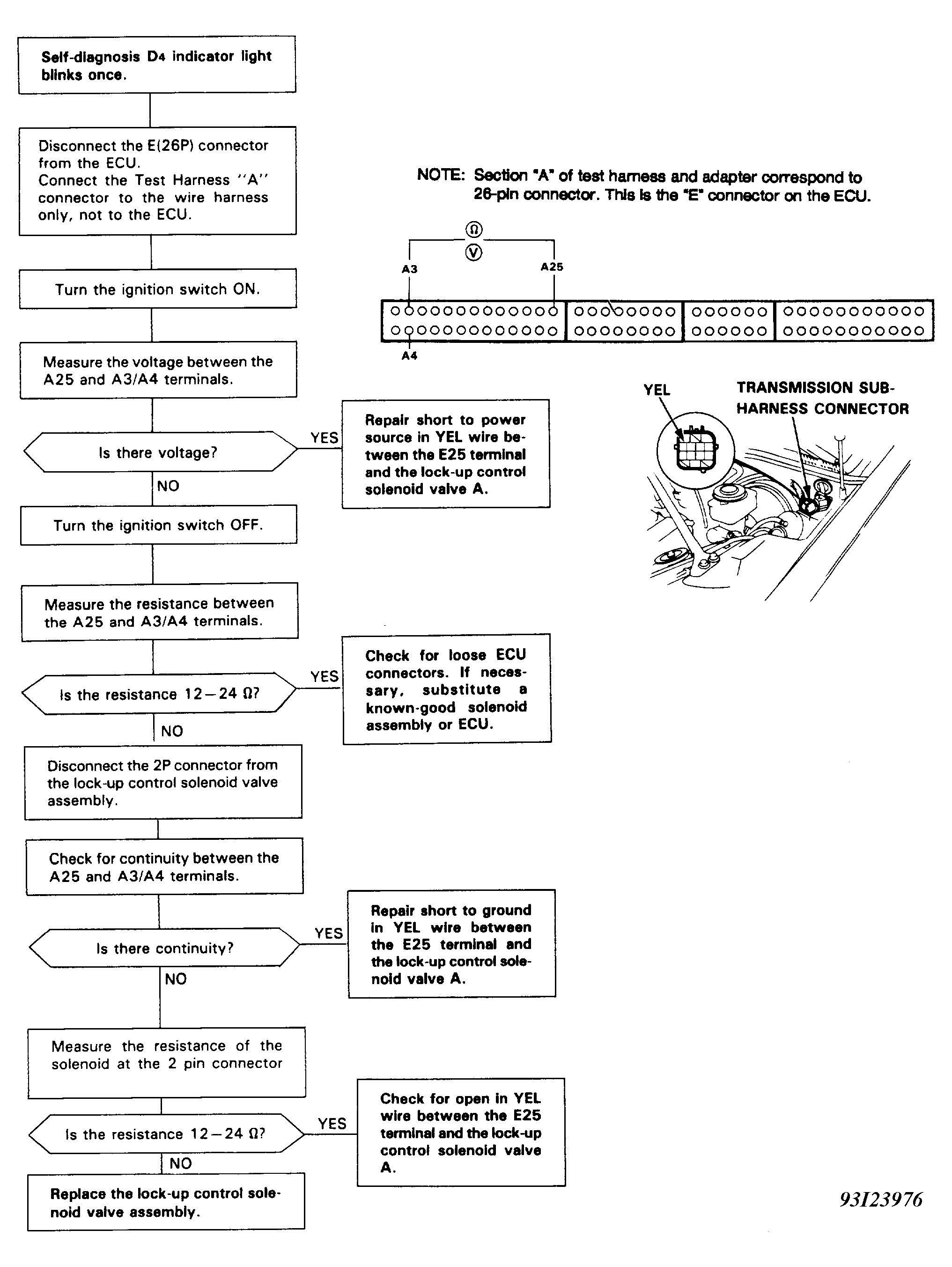

Fig 1: Flow Chart - Fault Code No. 1

G93I23976
