Legend Base, Standard
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Warning Systems
>>
Integrated Control Unit
>>
Circuit Tests
>>
Input Tests
>>
Entry Light Control System
Entry Light Control System
NOTE:
See
Figure
or
Figure
for connector terminal identification. For input test, see
Fig 1
or
Fig 2

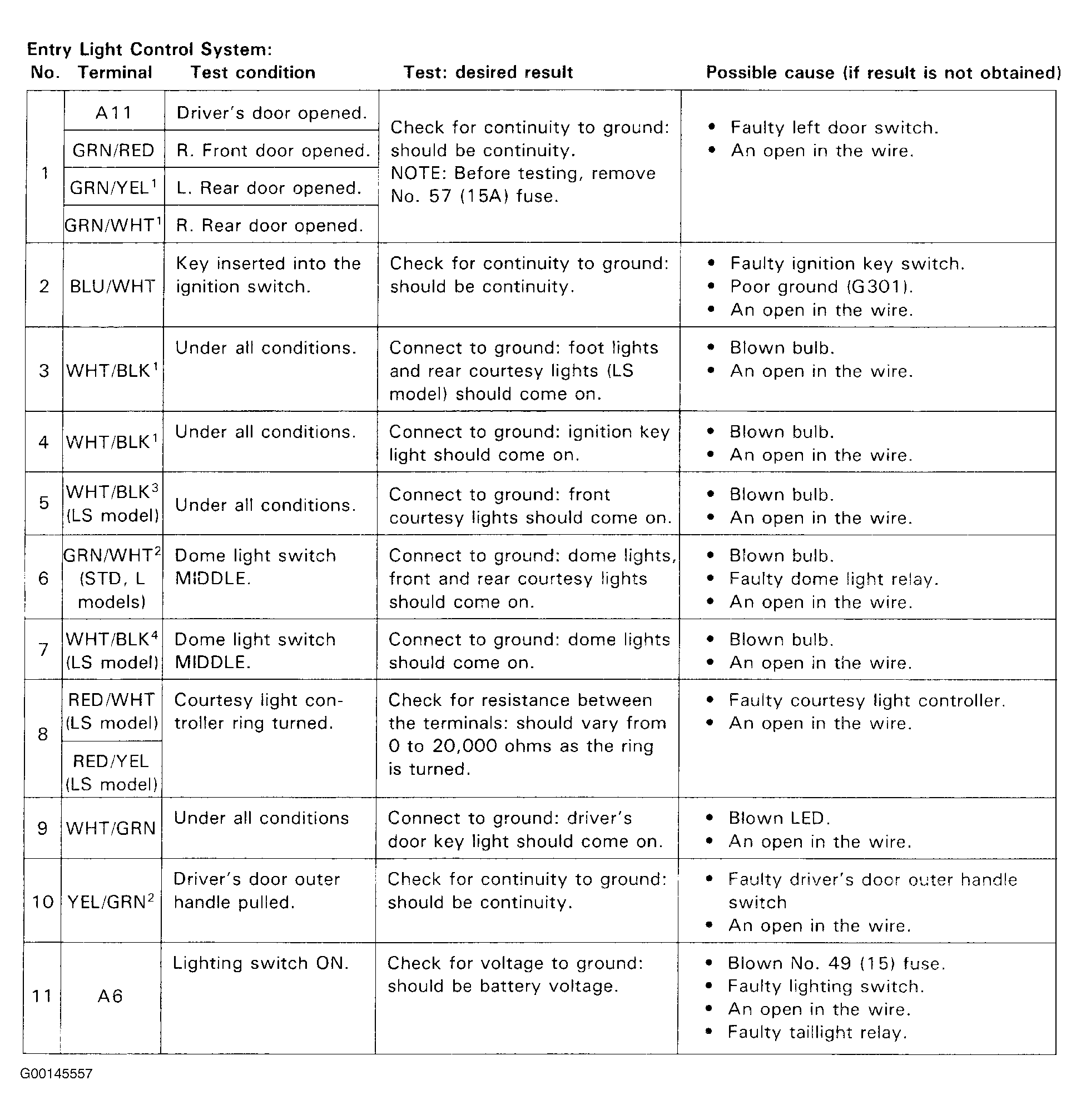

Fig 1: Entry Light Control System Input Test (Coupe)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

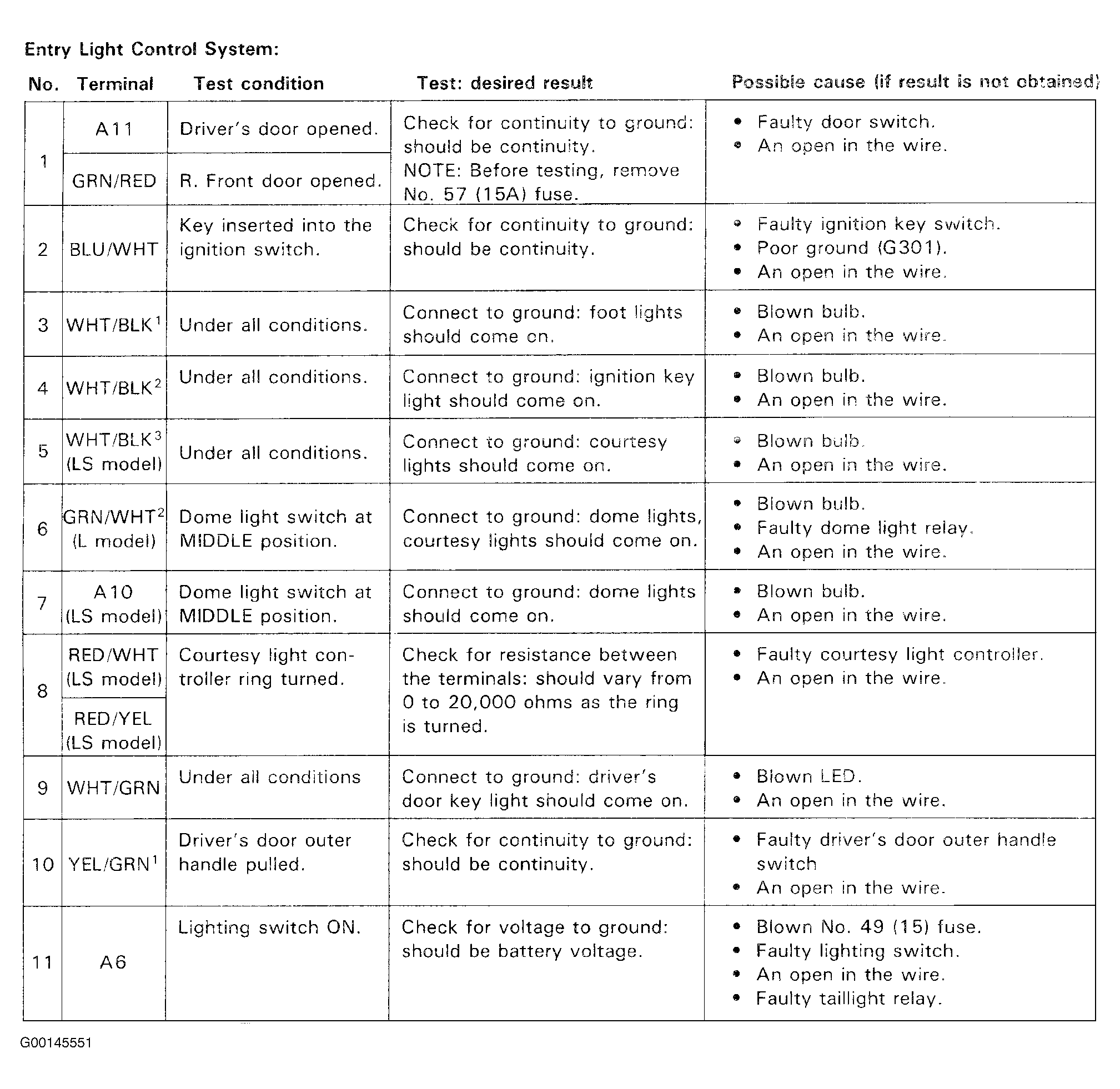

Fig 2: Entry Light Control System Input Test (Sedan)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
