Removal & Installation

Remove cruise control actuator. Remove left camshaft upper timing belt cover. See Fig 1. Remove timing belt. Remove upper timing belt camshaft pulley bolts. Remove left camshaft timing belt upper backing plate. Remove CRANK/CYL sensor. To install, reverse removal procedure.

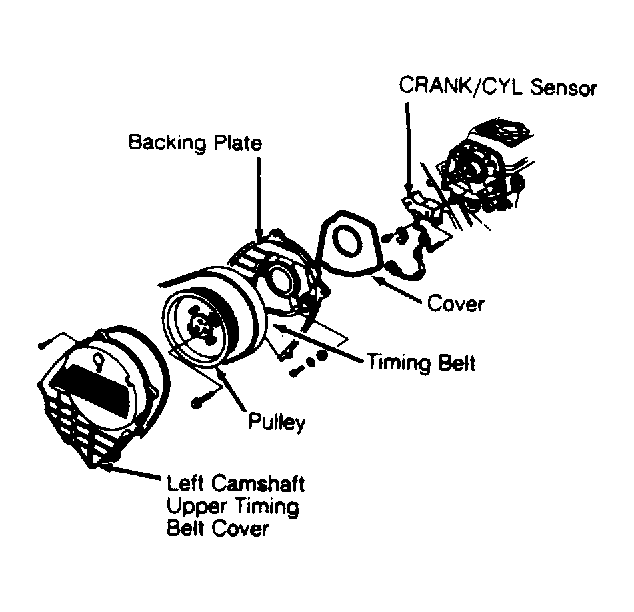

Fig 1: Exploded View of CRANK/CYL Sensor (Legend)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
