Fuel Pump (Legend): Removal

WARNING: Do not smoke while working on fuel system. Keep open flames away from your work area.
  1. Remove the rear seats. See SEAT ASSEMBLY (LEGEND)
  2. Remove the maintanance access cover.
  3. Disconnect the connector from the fuel pump.
  4. Remove the fuel pump mounting nuts.
  5. Remove the fuel pump from the fuel tank. See Fig 1.

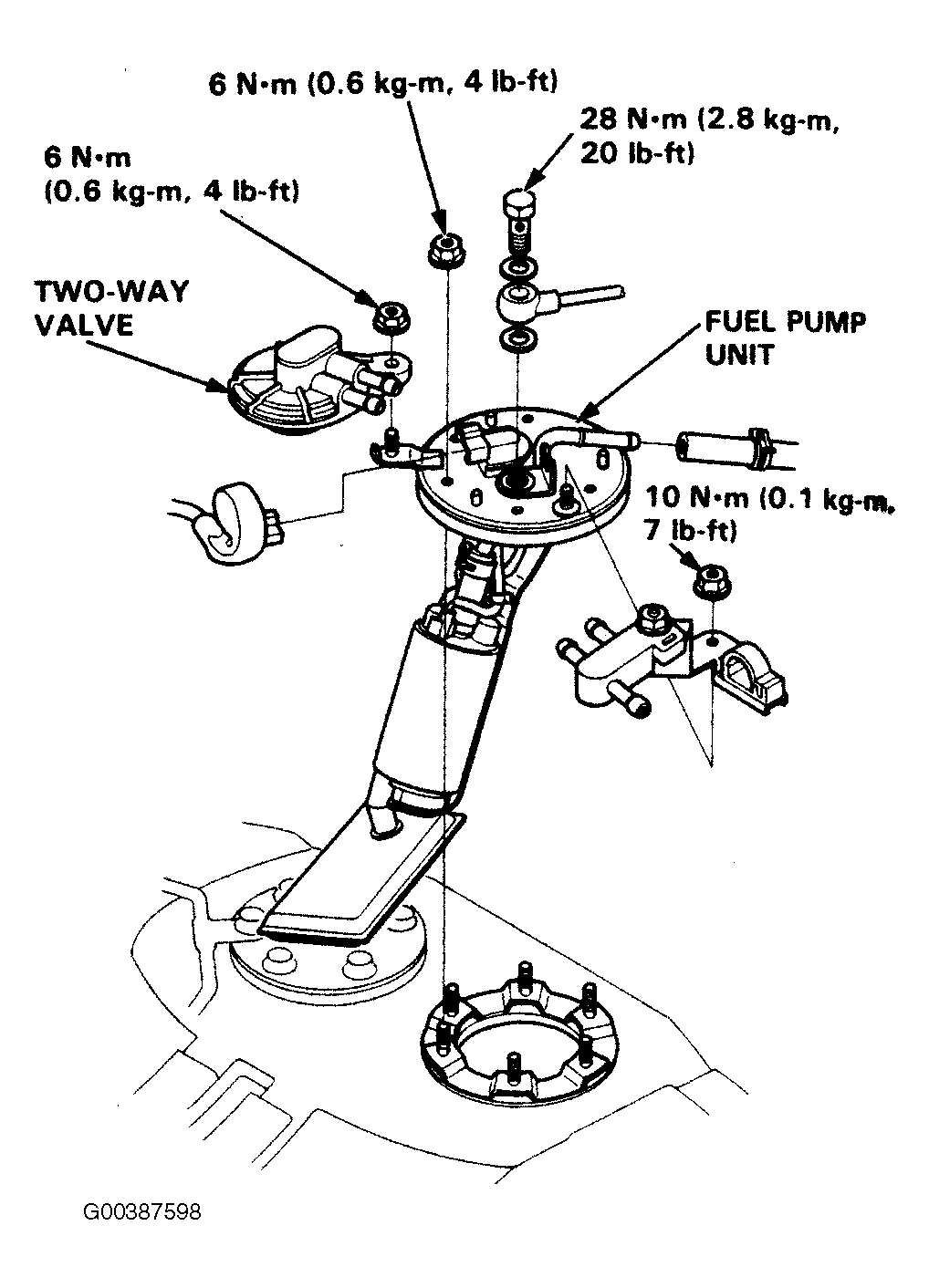

Fig 1: Removing/Insalling Fuel Pump (Legend)
G00387598Courtesy of AMERICAN HONDA MOTOR CO., INC.
