Wiring Diagrams

WARNING: This page is about a different car, the 1991 Acura Legend. However, it is still accessible from the selected car via links, so may be relevant.

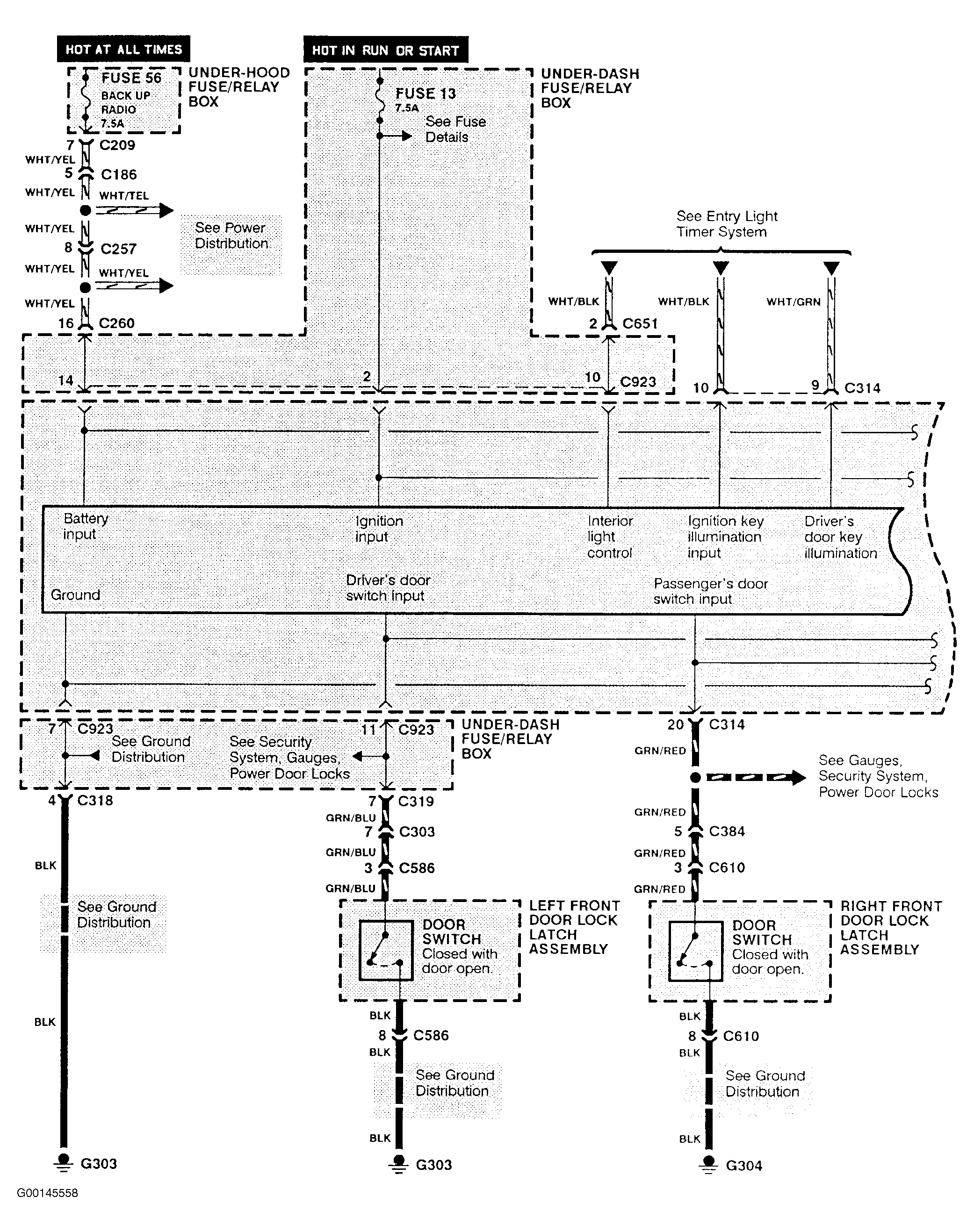

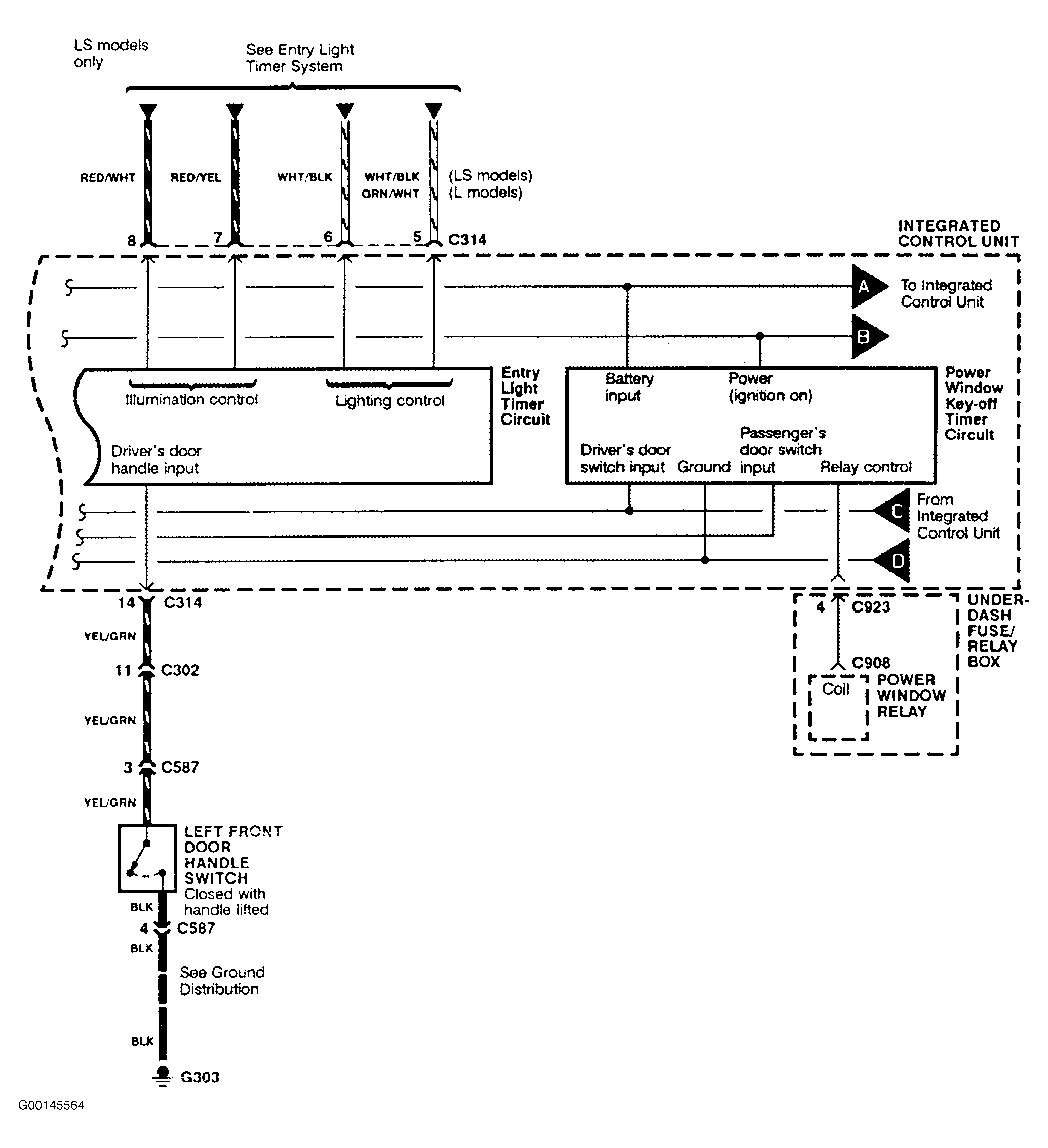

Fig 1: Entry Light & Key Off Timer Wiring Diagram (Coupe - 1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

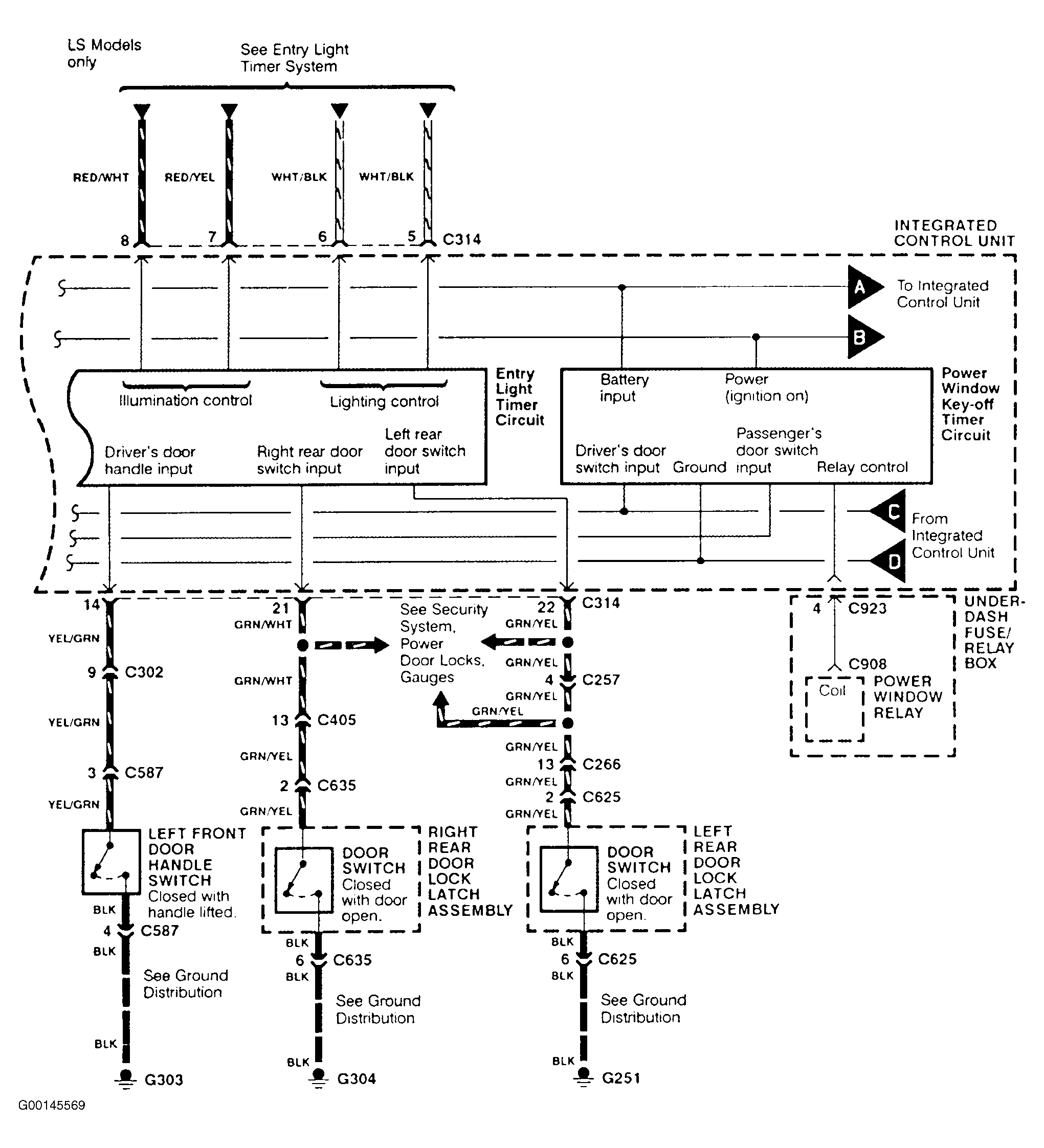

Fig 2: Entry Light & Key Off Timer Wiring Diagram (Coupe - 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

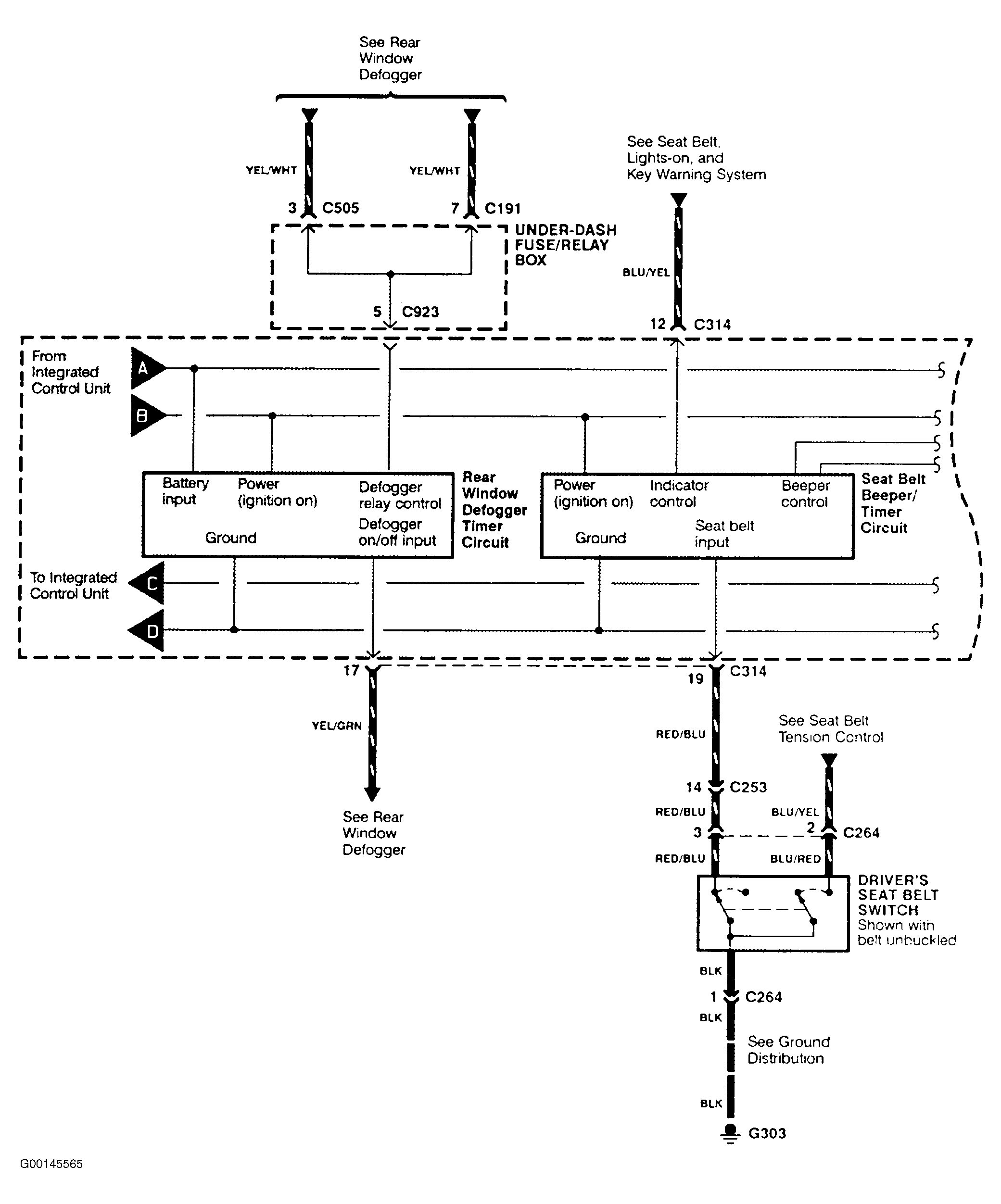

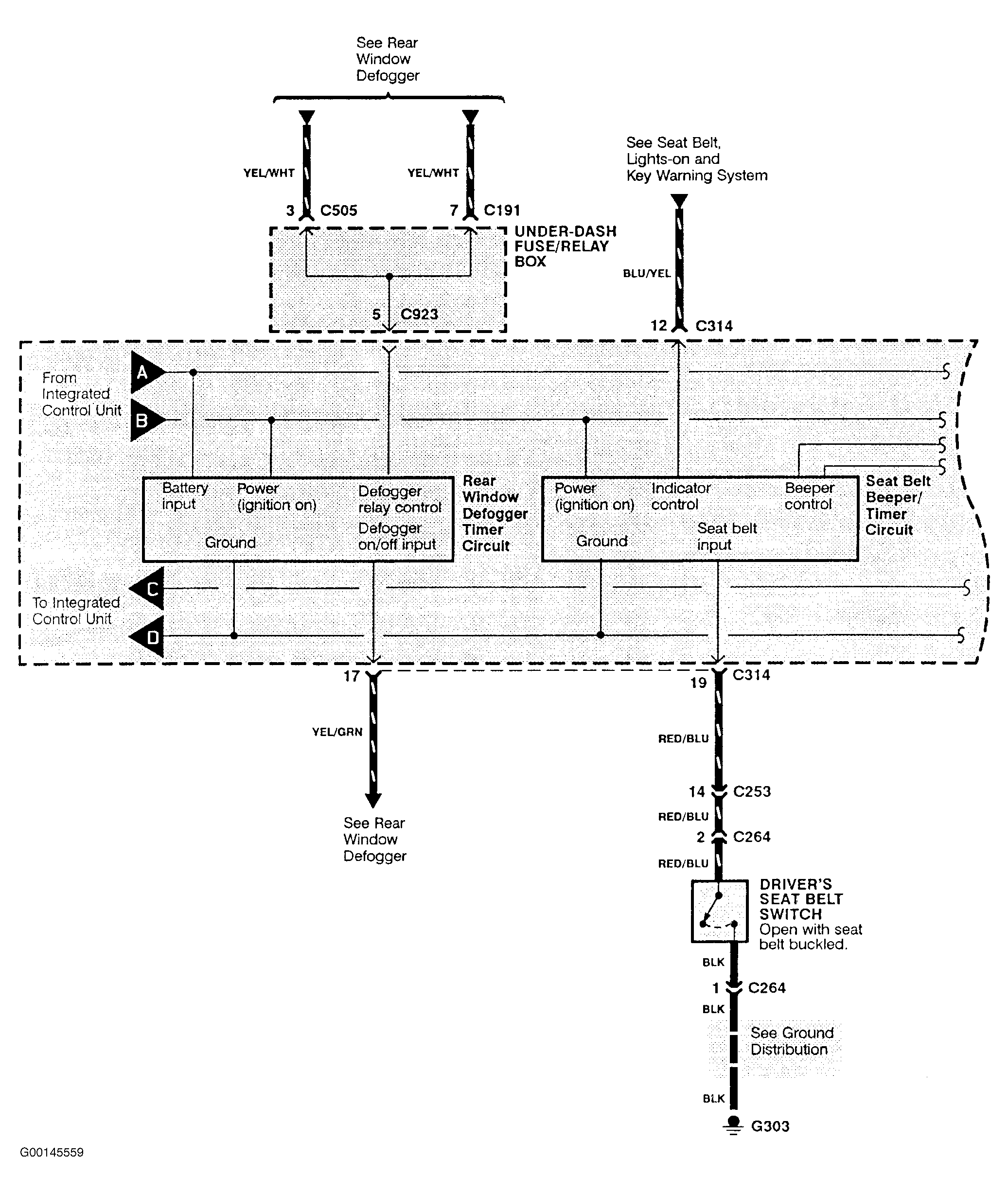

Fig 3: Rear Window Defogger & Seat Belt Beeper Timer Wiring Diagram (Coupe)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

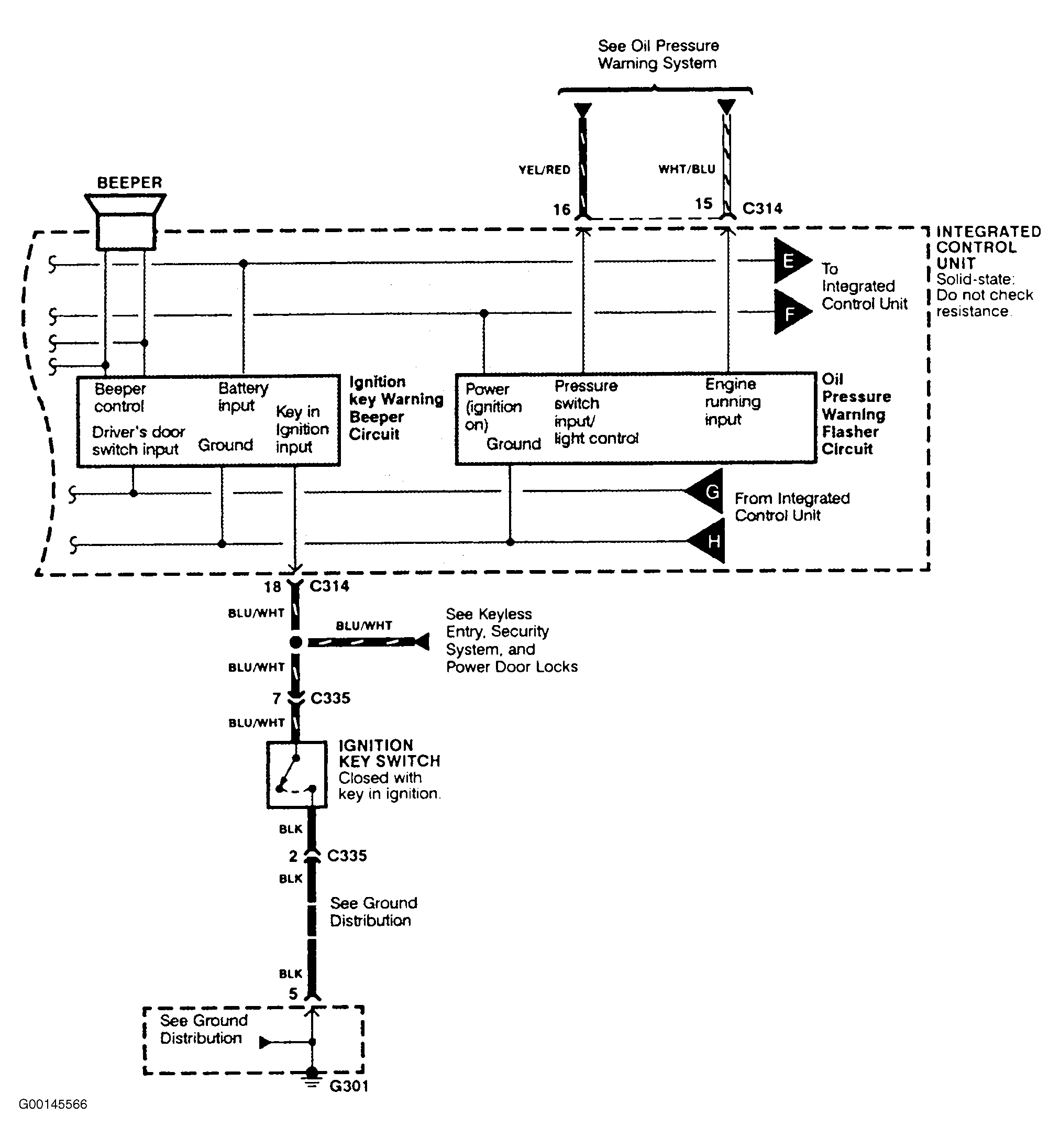

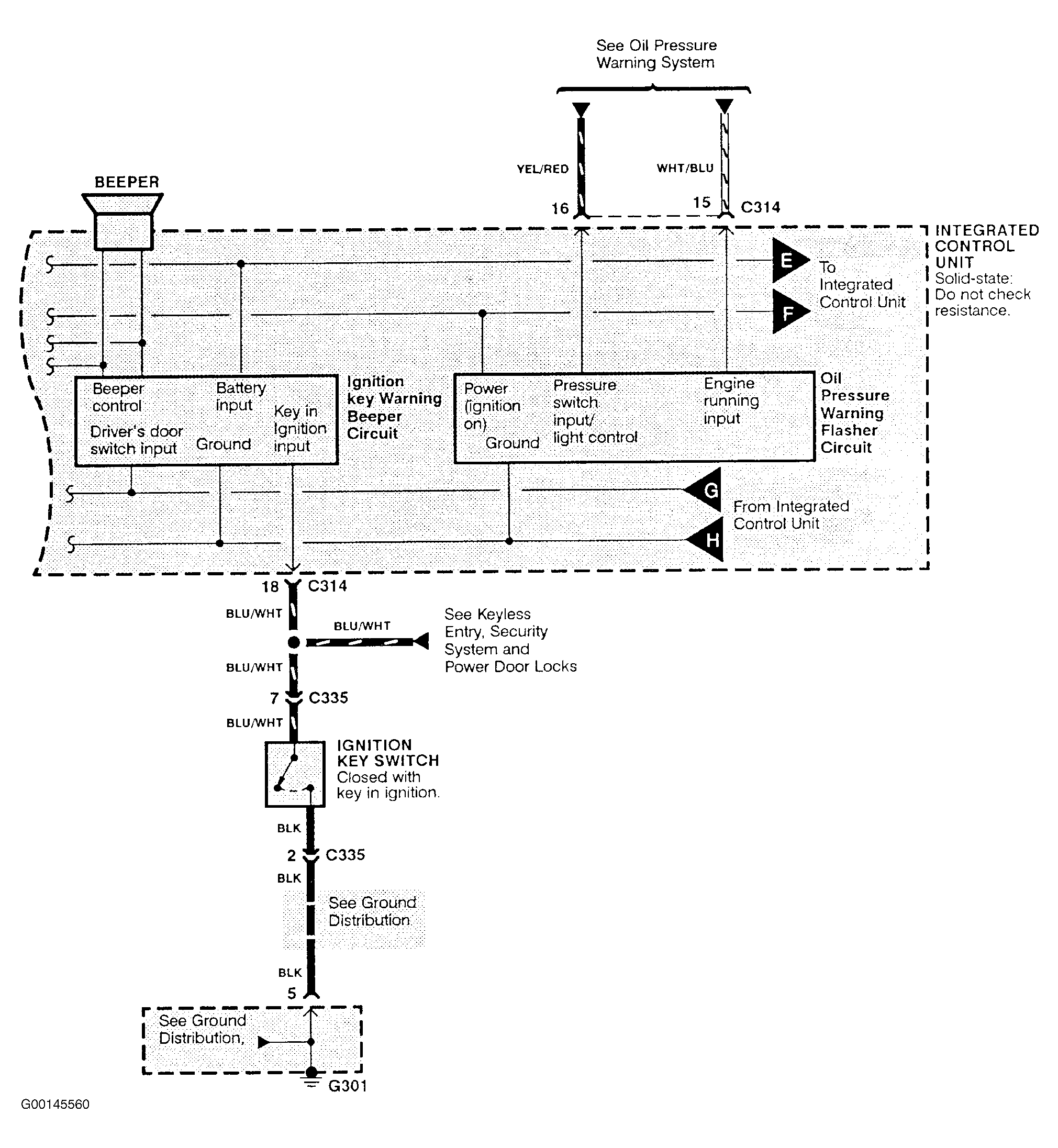

Fig 4: Ignition Key & Oil Pressure Warning Wiring Diagram (Coupe)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

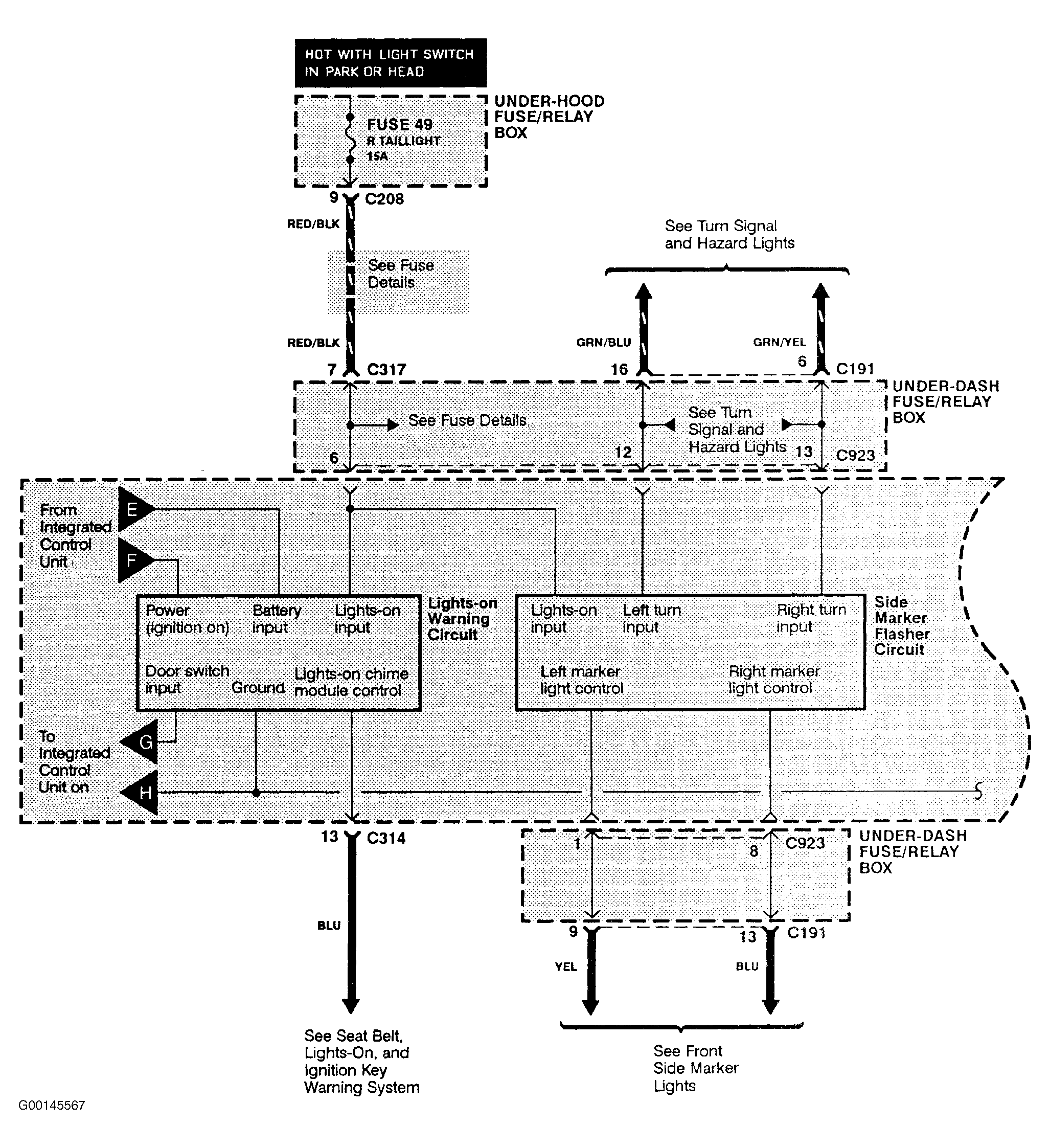

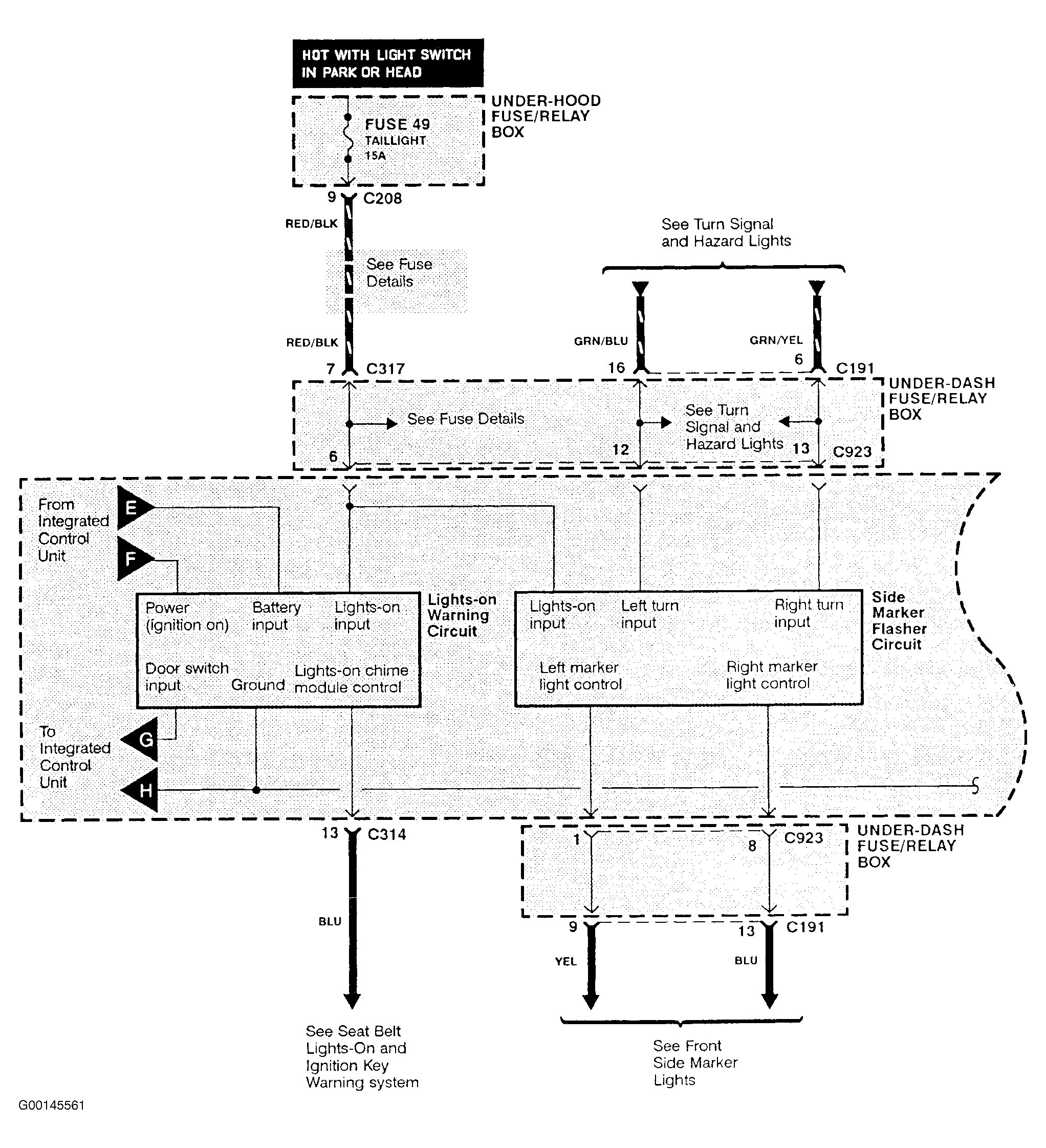

Fig 5: Lights-On Warning & Side Marker Flasher Wiring Diagram (Coupe)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

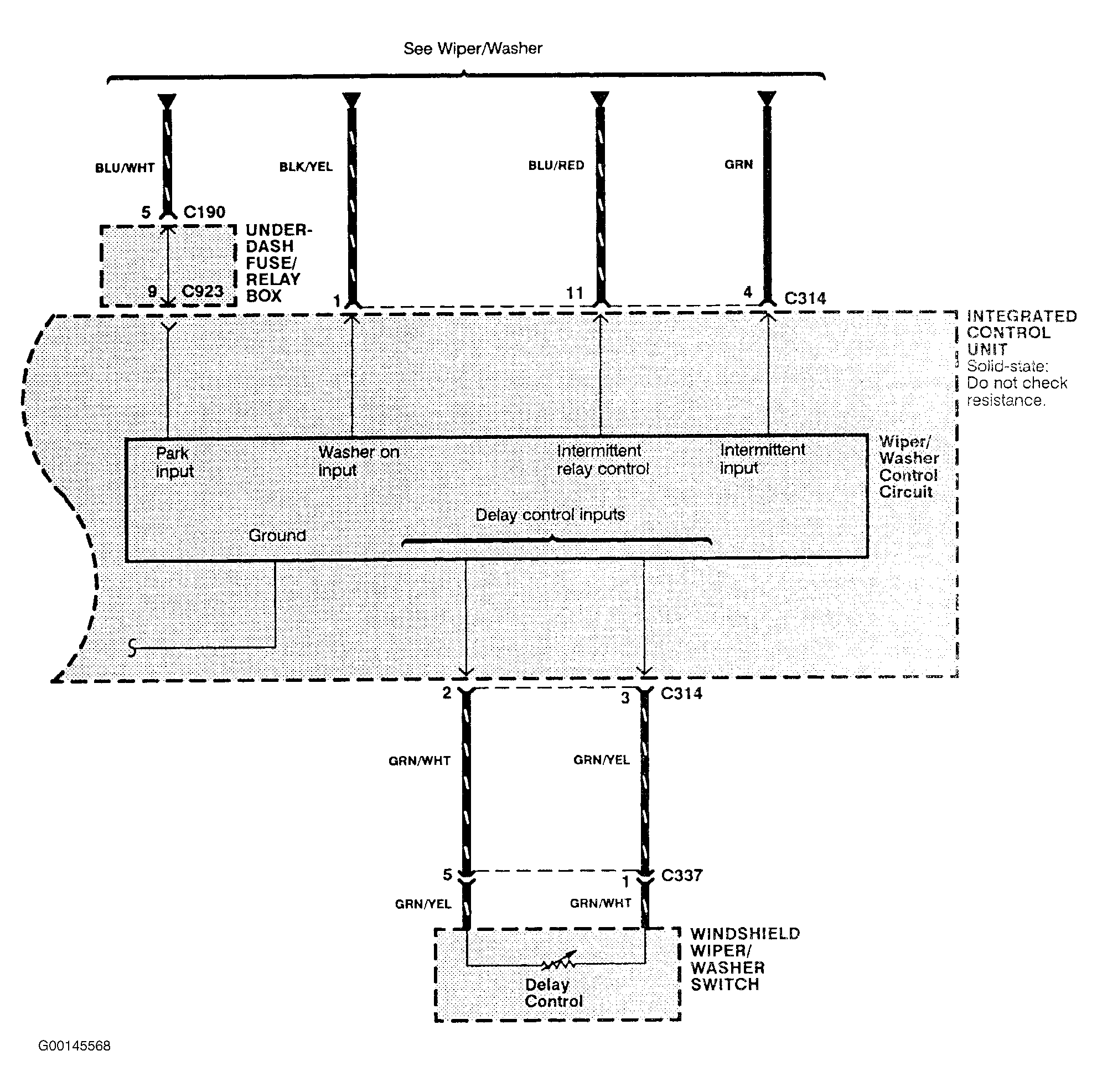

Fig 6: Intermittent Wiper Control Wiring Diagram (Coupe)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

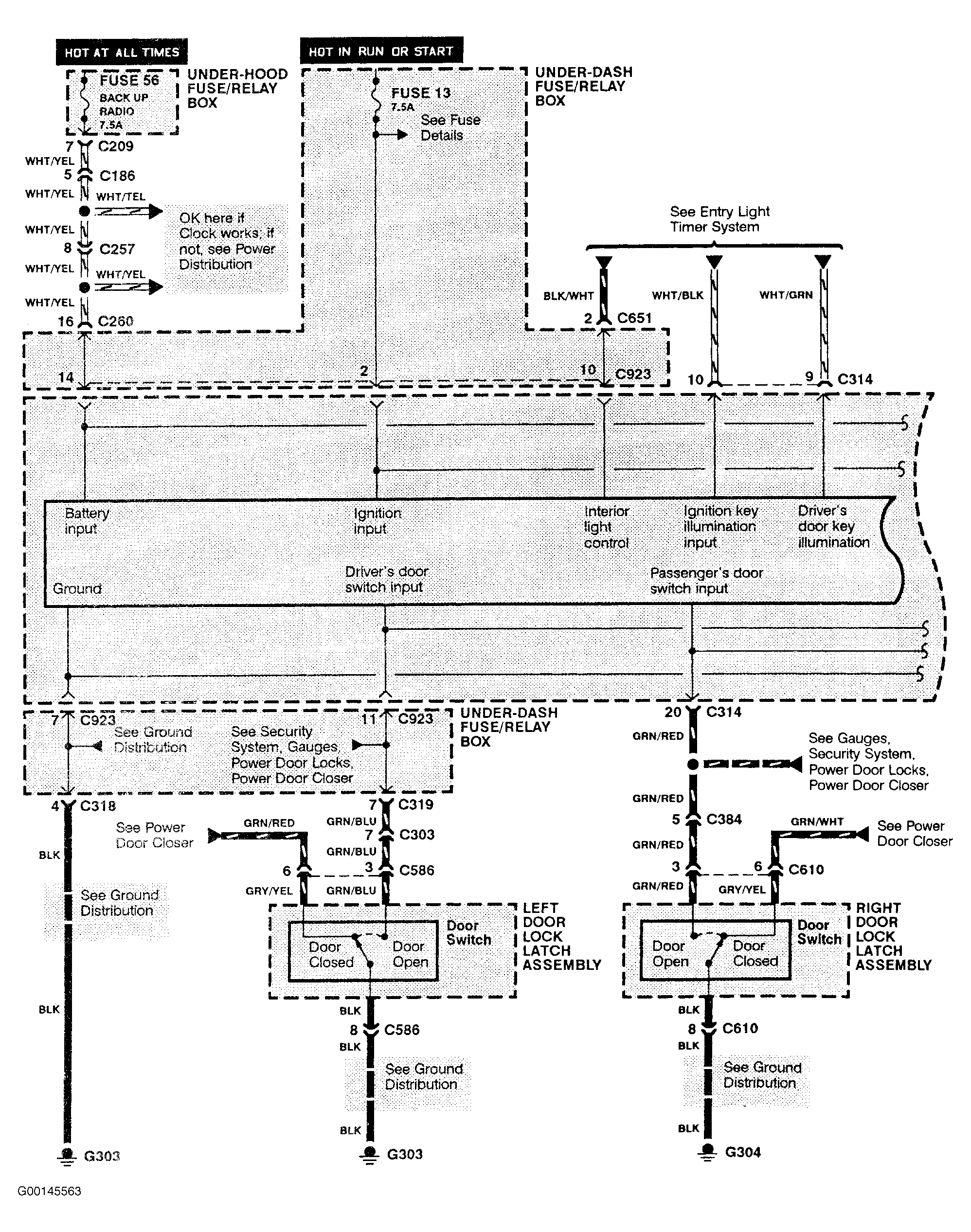

Fig 7: Entry Light & Key Off Timer Wiring Diagram (Sedan - 1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 8: Entry Light & Key Off Timer Wiring Diagram (Sedan - 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 9: Rear Window Defogger & Seat Belt Beeper Timer Wiring Diagram (Sedan)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Ignition Key & Oil Pressure Warning Wiring Diagram (Sedan)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: Lights-On Warning & Side Marker Flasher Wiring Diagram (Sedan)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

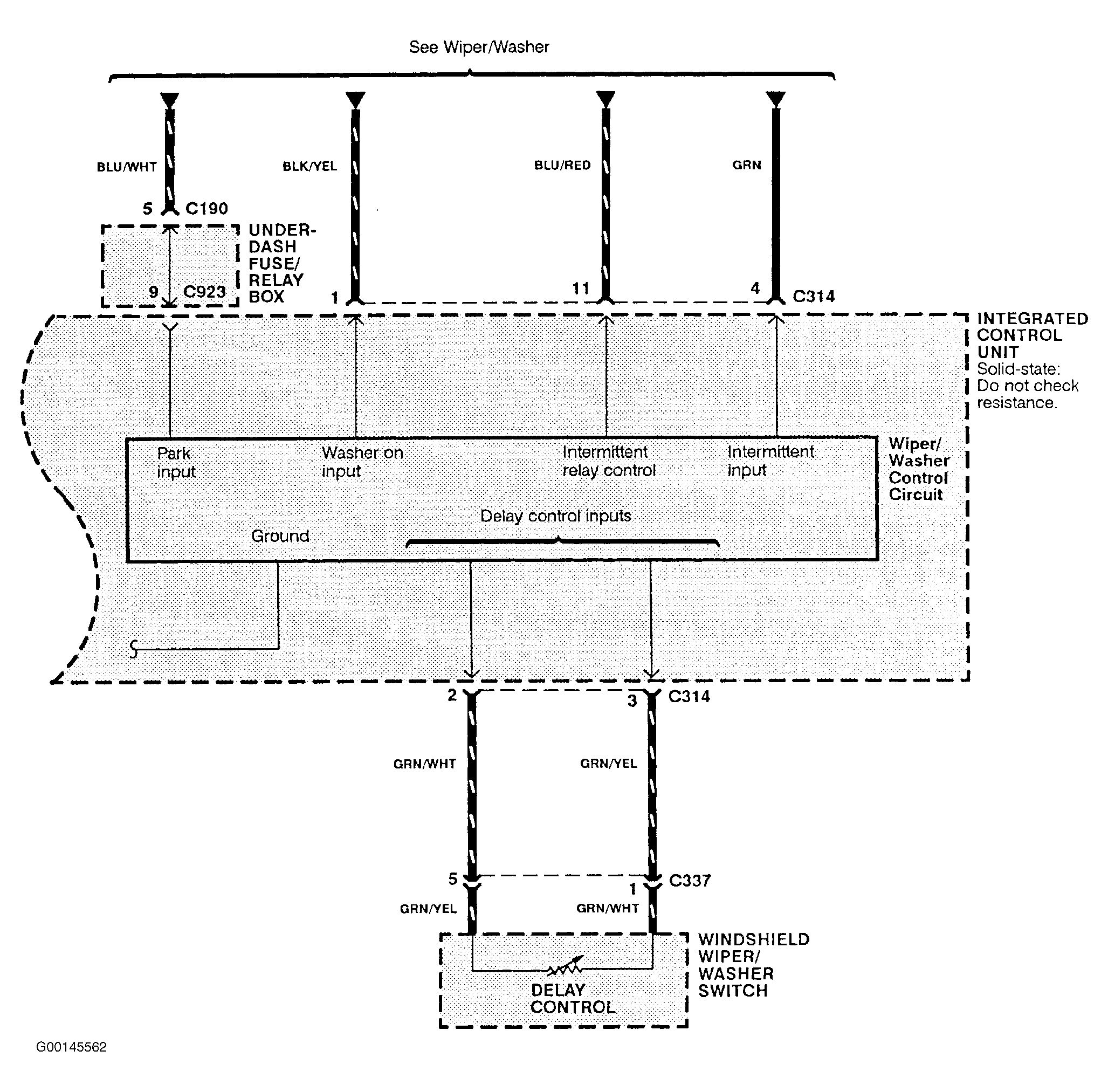

Fig 12: Intermittent Wiper Control Wiring Diagram (Sedan)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
