Integrated Control Unit

WARNING: This page is about a different car, the 1991 Acura Legend. However, it is still accessible from the selected car via links, so may be relevant.

A multi-function control unit located under the left side of the kick panel integrates the functions of the entry light control, key-on reminder, lights-on reminder, seat belt reminder, oil pressure indicator, side marker light flasher, power window key-off timer, intermittent wiper and rear window defogger timer onto one circuit board, sharing common circuit functions. See Fig 1 and Fig 2 .

NOTE: Several different wires have the same color. They have been given a number suffix to distinguish them (for example YEL/GRN¹ and YEL/GRN² are not the same wire).

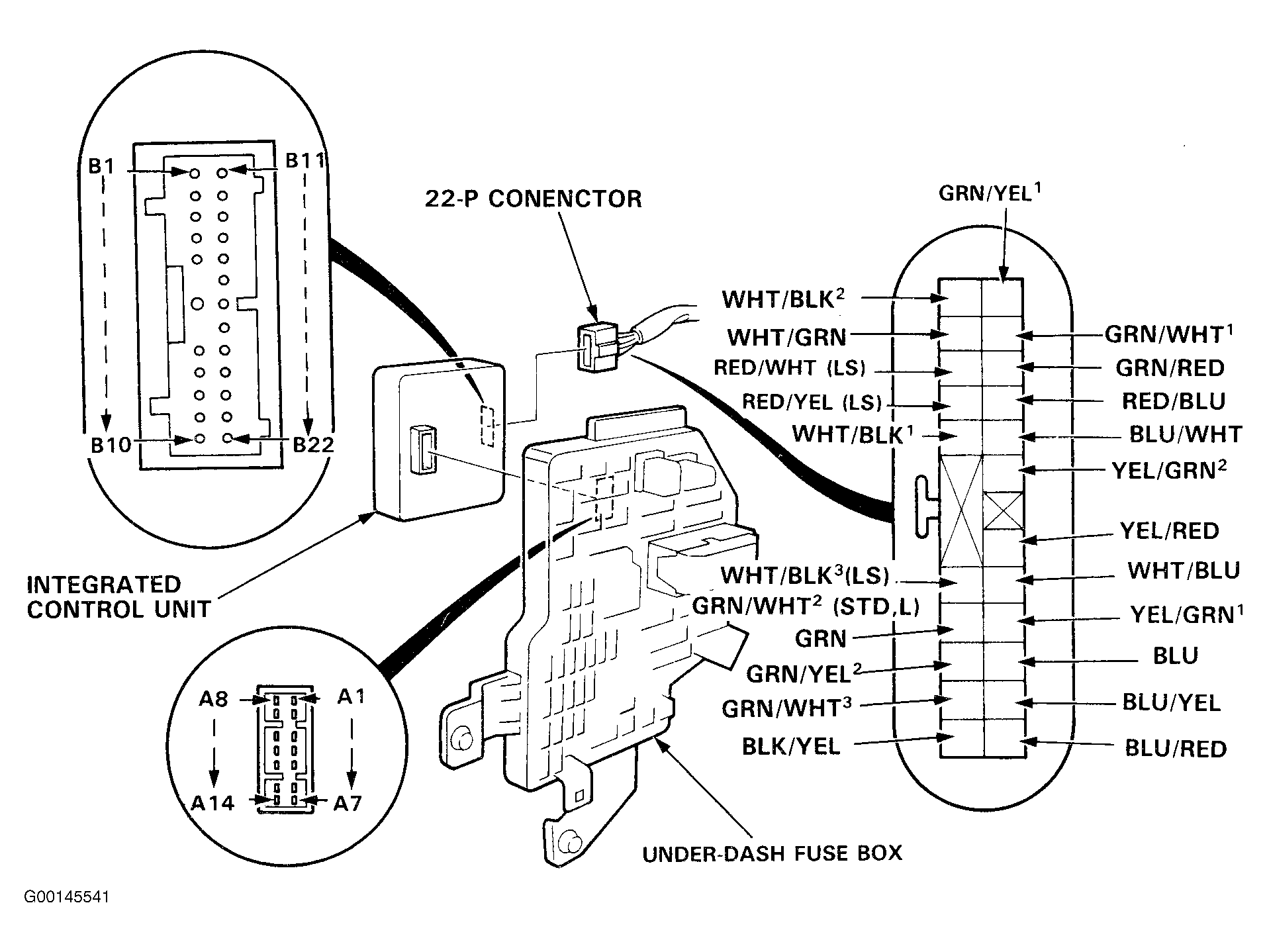

Fig 1: Identifying Integrated Control Unit & Connectors (Sedan)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

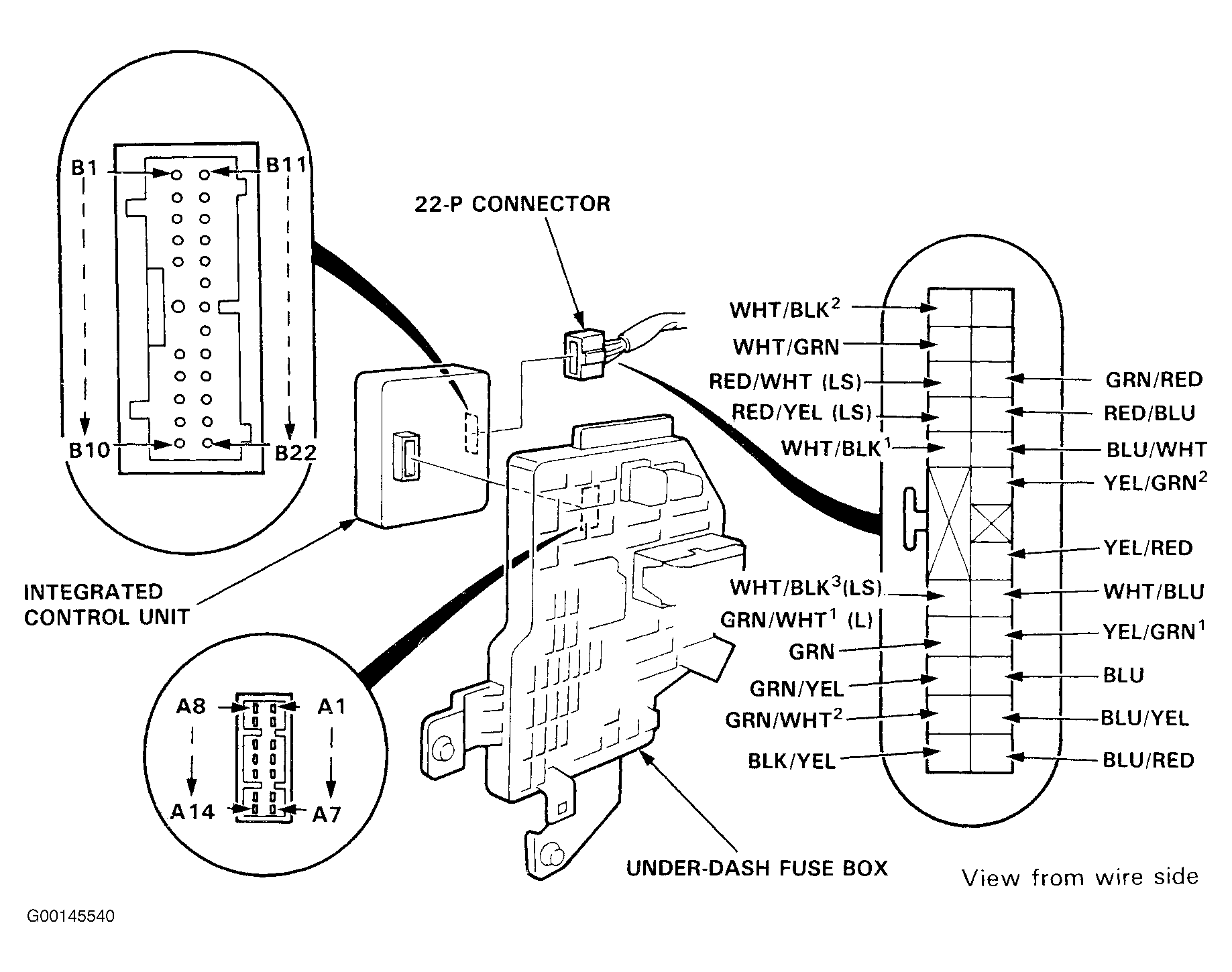

Fig 2: Identifying Integrated Control Unit & Connectors (Coupe)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
