All Systems

WARNING: This page is about a different car, the 1991 Acura Legend. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: See Figure or Figure for connector terminal identification. For input test, see Fig 1 .

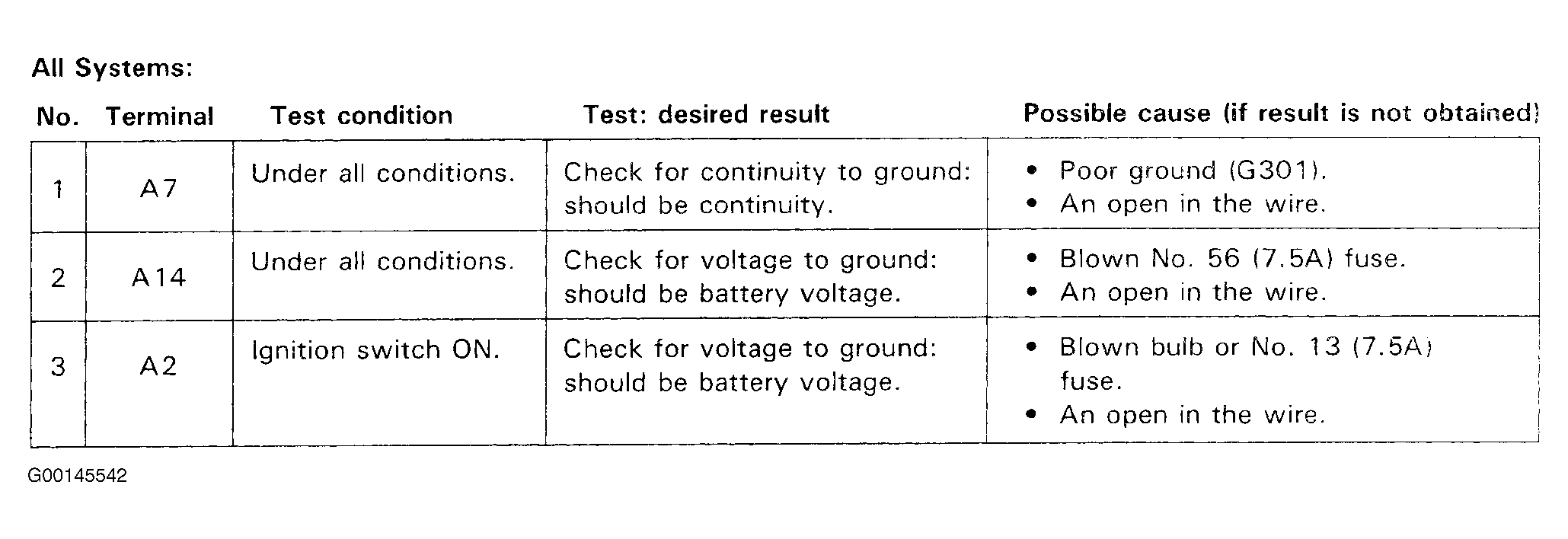

Fig 1: All Systems Input Test
G00145542Courtesy of AMERICAN HONDA MOTOR CO., INC.
