Side Marker Light Flasher System

For side marker light flasher system, see Fig 1 and Fig 2 .

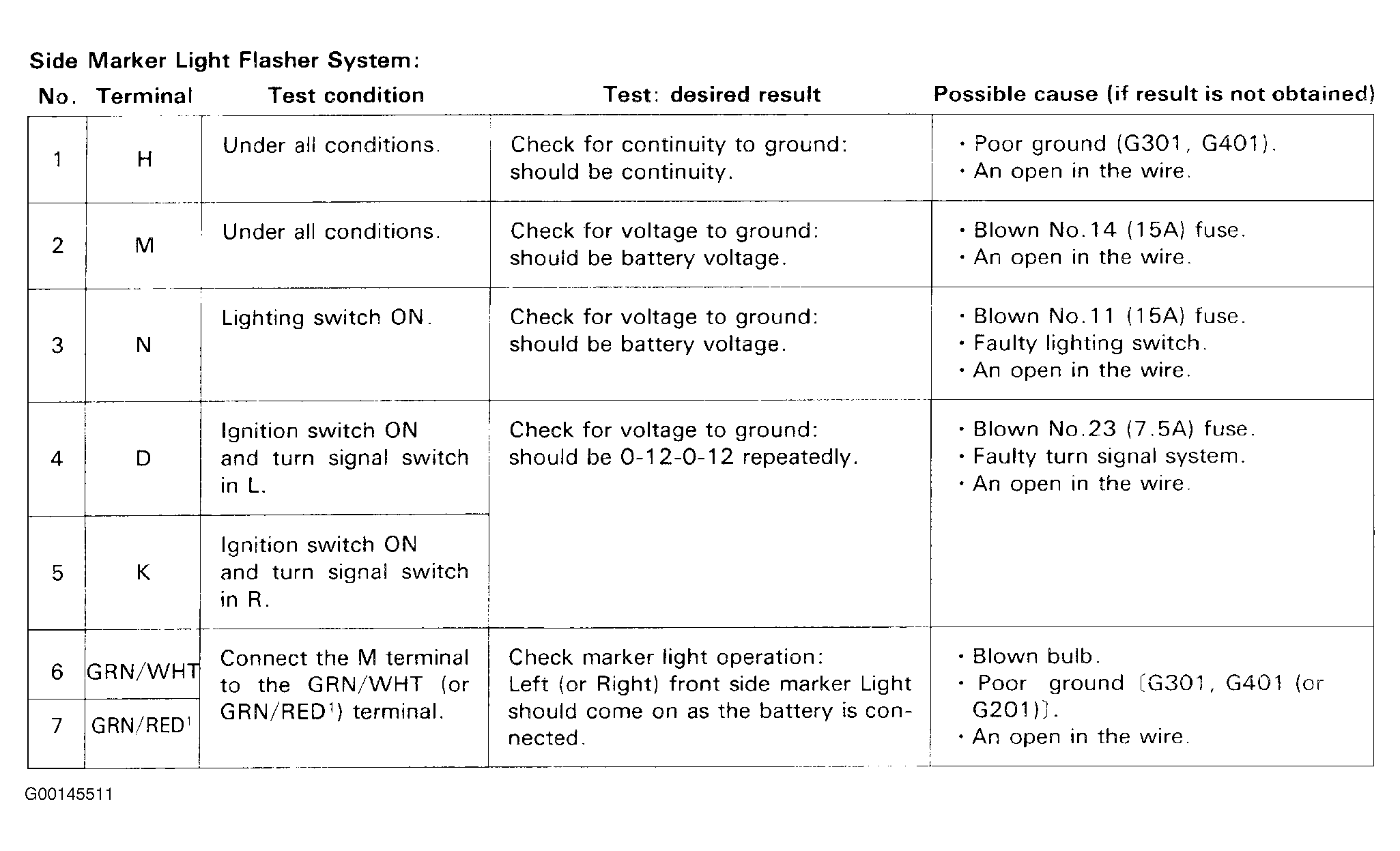

Fig 1: Side Marker Light Flasher System Input Test (1990)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

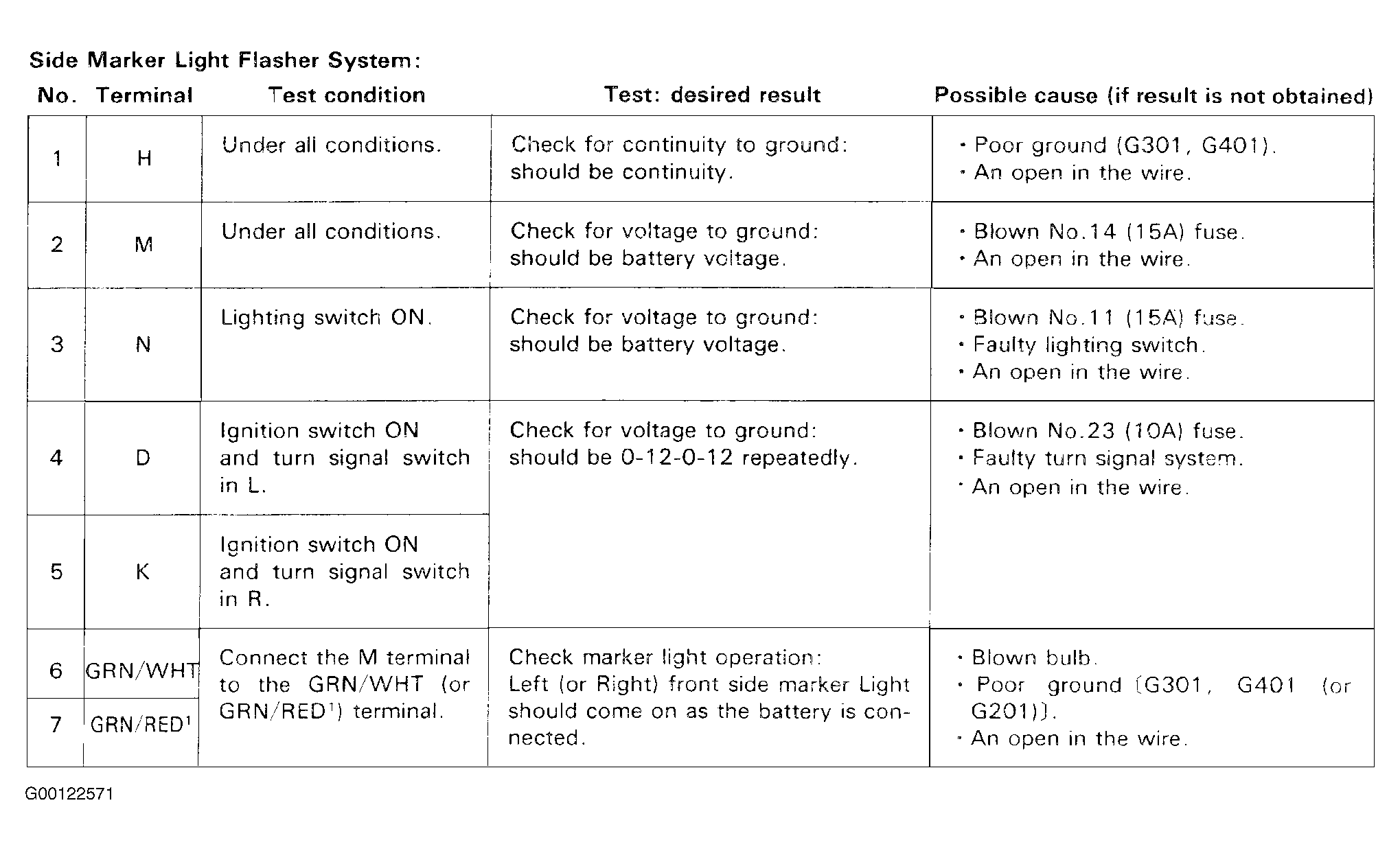

Fig 2: Side Marker Light Flasher System Input Test (1991)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
