Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse/Relay Block

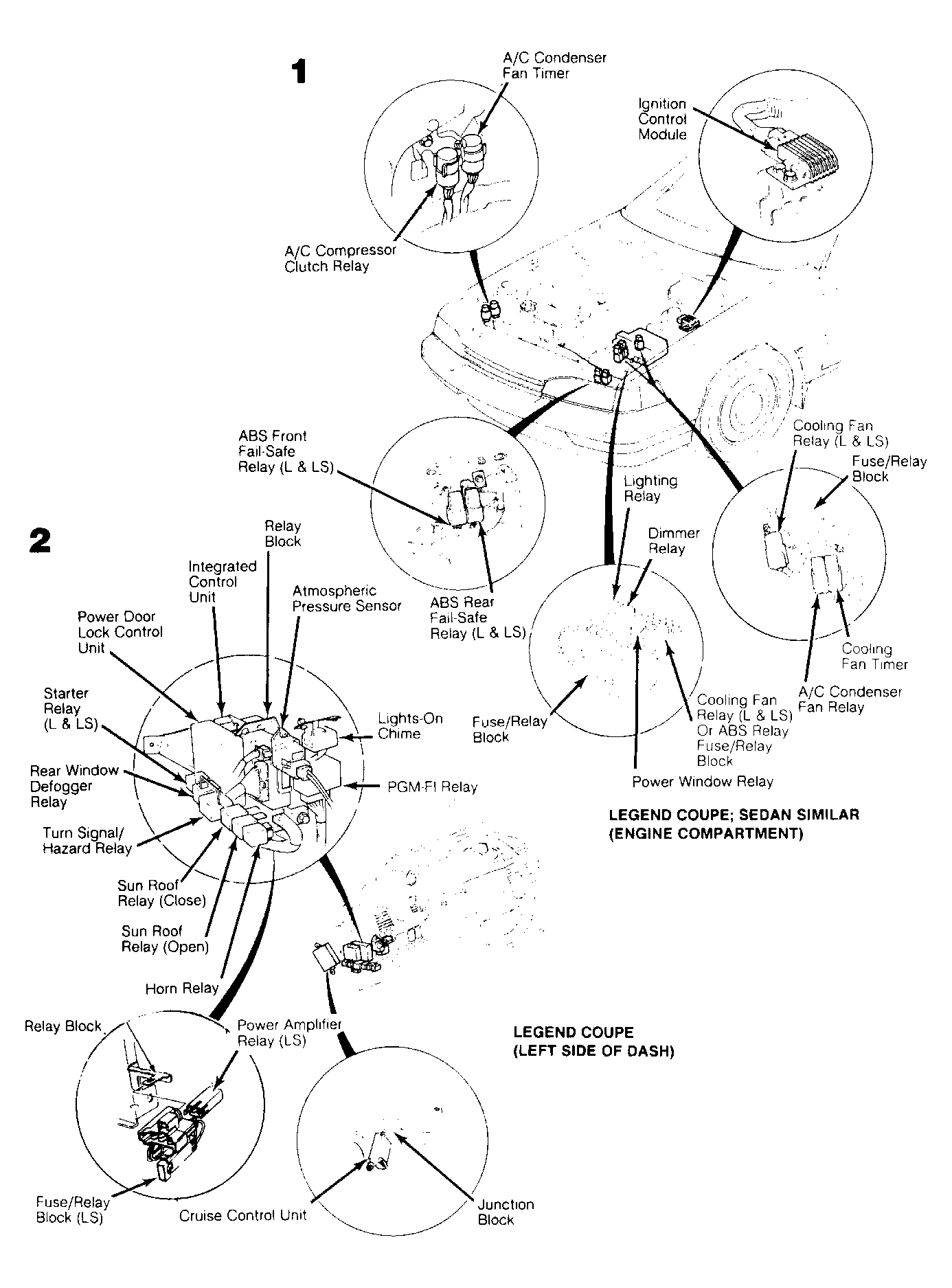

Engine Compartment (Coupe) On left fender panel, behind battery. See Figure .

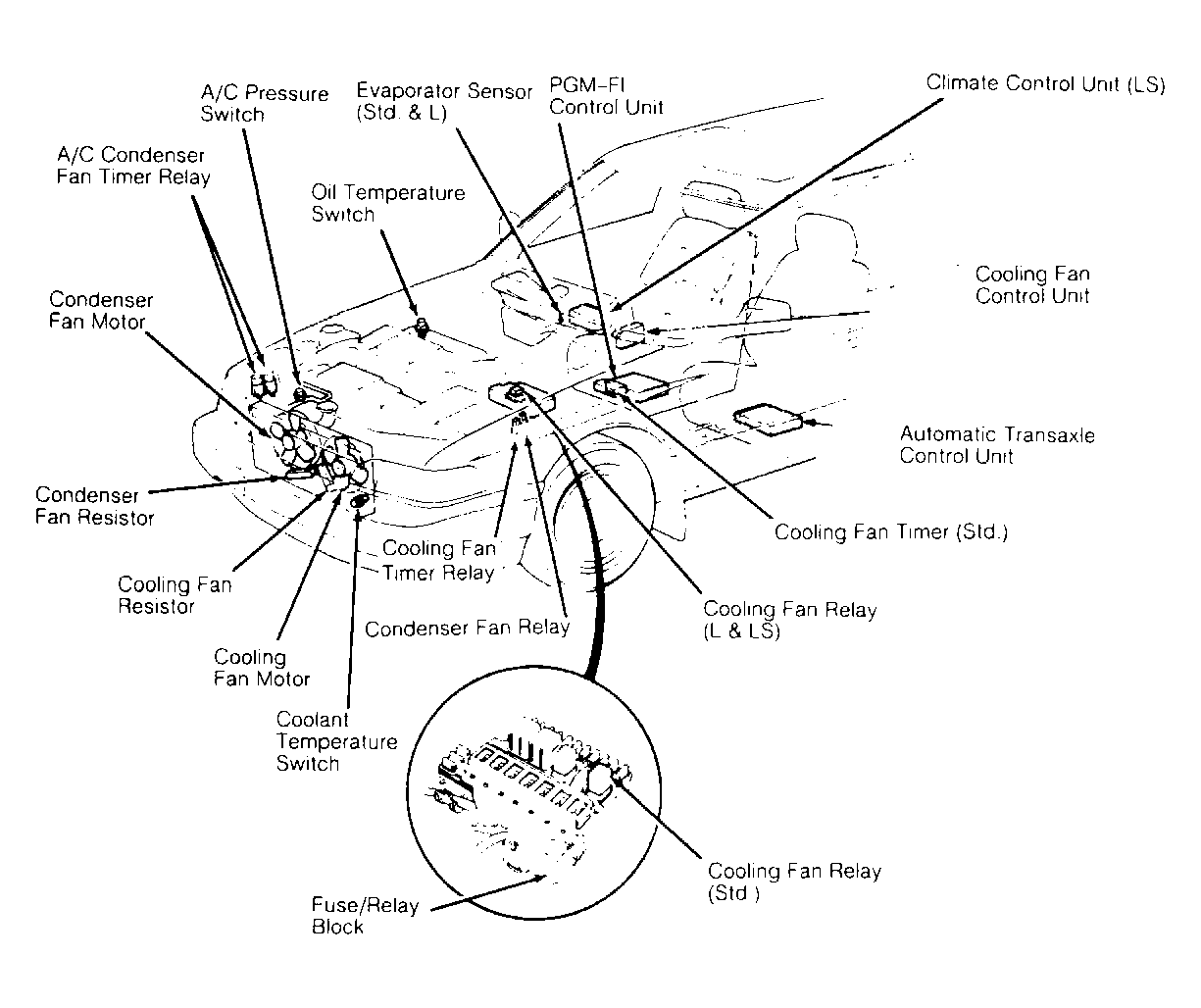

Engine Components (Sedan) On left fender panel, behind battery. See Figure .
Engine Compartment (Sedan) On left fender panel, behind battery. See Figure .
Passenger Compartment Under left side of dash. See Figure .
