Passenger Window Motor Test

Remove door panel. Unplug connector from motor. Using fused jumper wire, connect terminals No. 1 and 2 to battery voltage. See Fig 1 . Test motor in each direction by transposing jumper wires. Motor should run. Replace motor if it does not run.

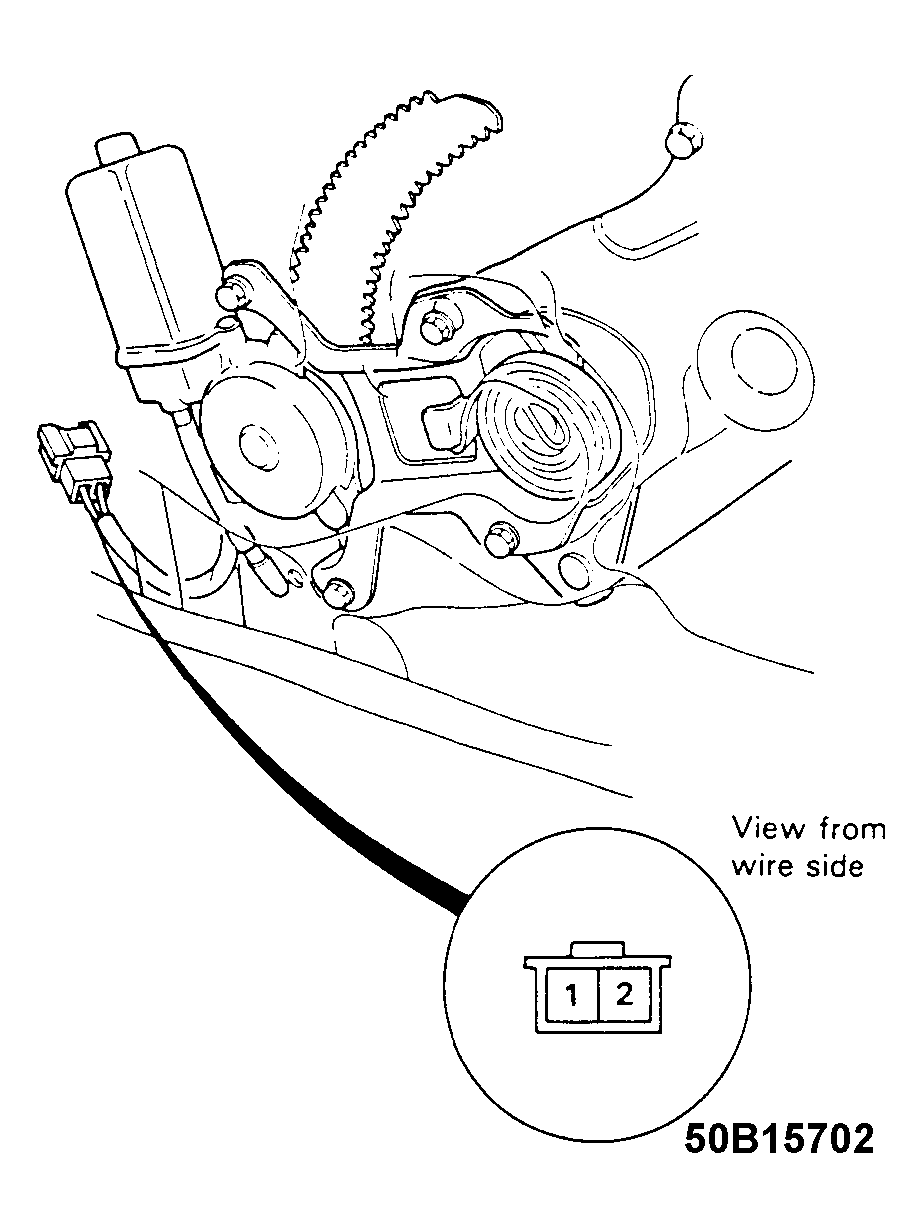

Fig 1: Passenger's Window Motor Terminal ID

Courtesy of AMERICAN HONDA MOTOR CO., INC.
