Security Control Module Input Test

NOTE: Different wires with the same color have been a suffix number. For example, Yellow/Green(1) and Yellow/Green(2) are not the same wires.

Slide driver's seat forward to disconnect security system control 22-pin connector. Inspect connectors to ensure terminals are making good contact. If terminals are bent, loose or corroded, repair as necessary and recheck system. Several different wires have same color. They have been given a number suffix to distinguish them (for example Blue/Red(1) and Blue/Red(2) are not the same.

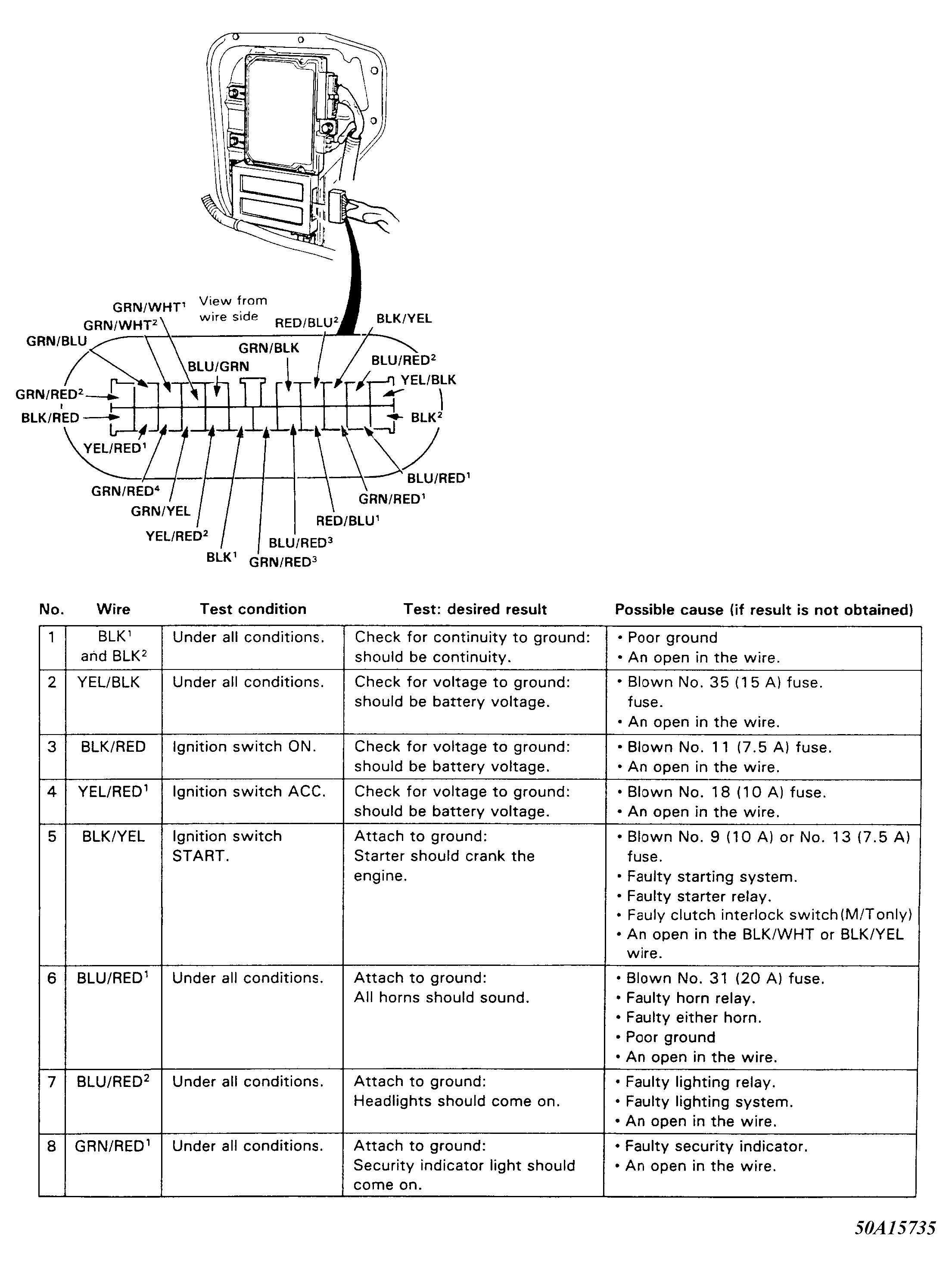

Fig 1: Security Control Module Input Test (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

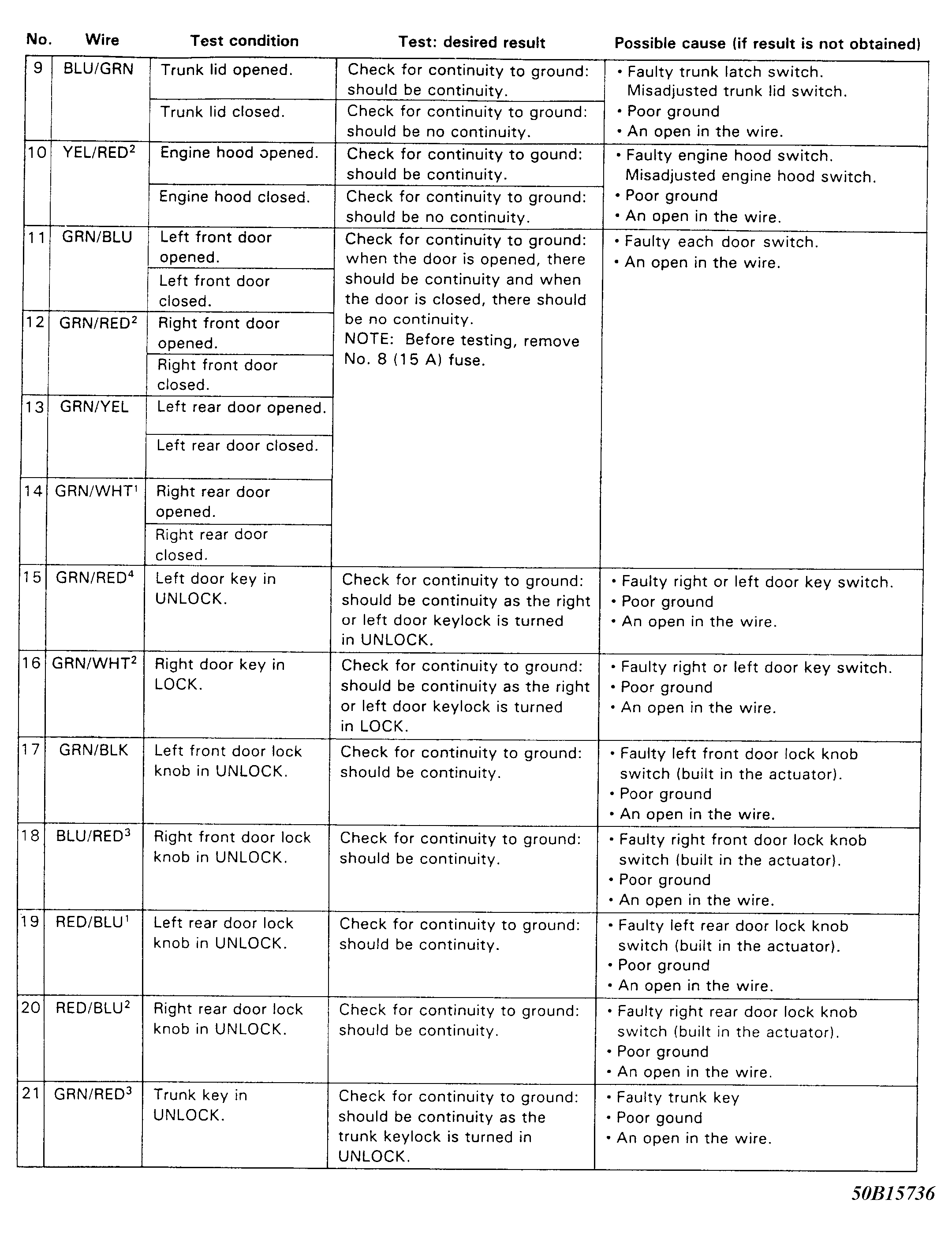

Fig 2: Security Control Module Input Test (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
